Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> SRS Indicator Light Doesn't Come On

SRS Indicator Light Doesn't Come On

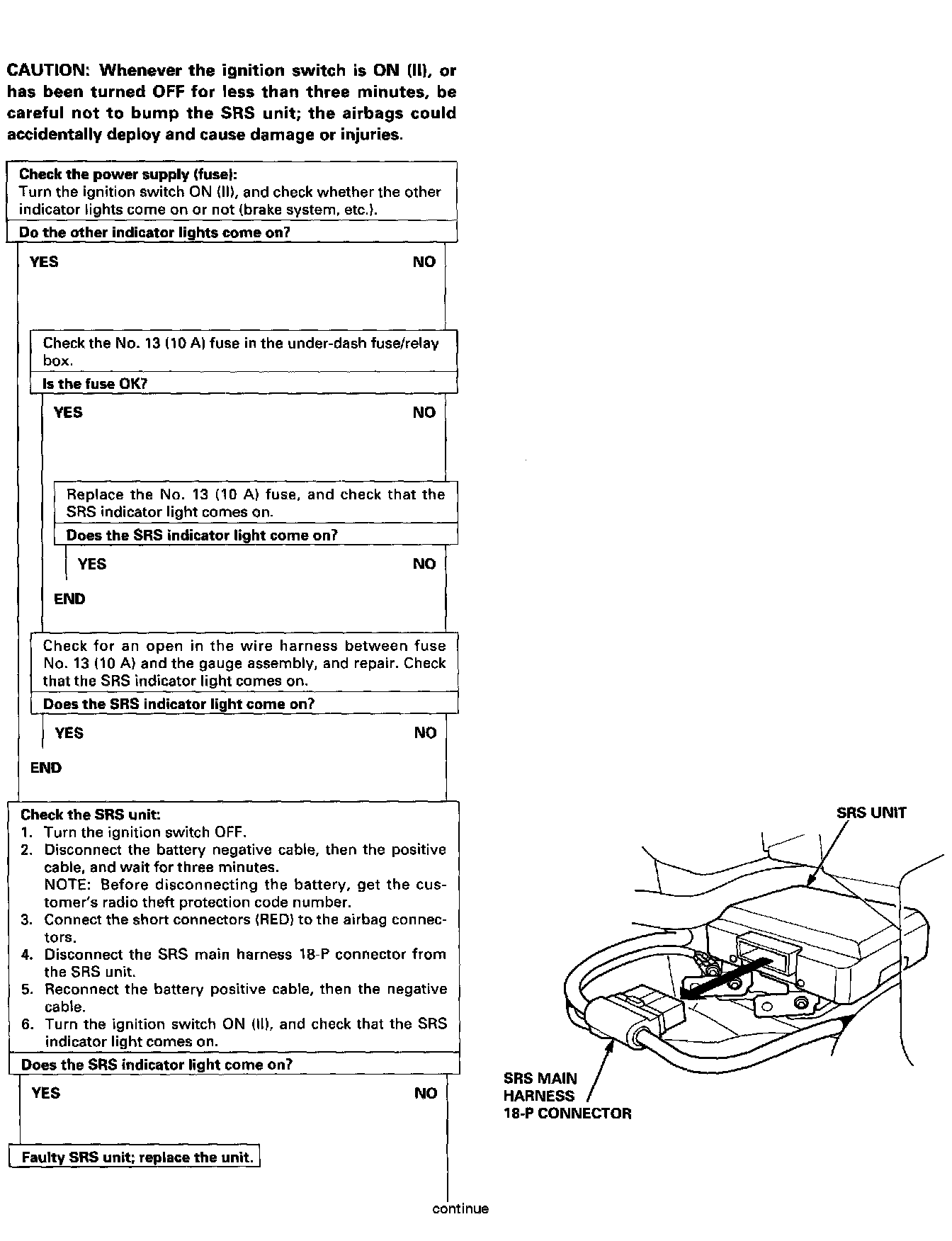

Inspection Procedure - Part 1:

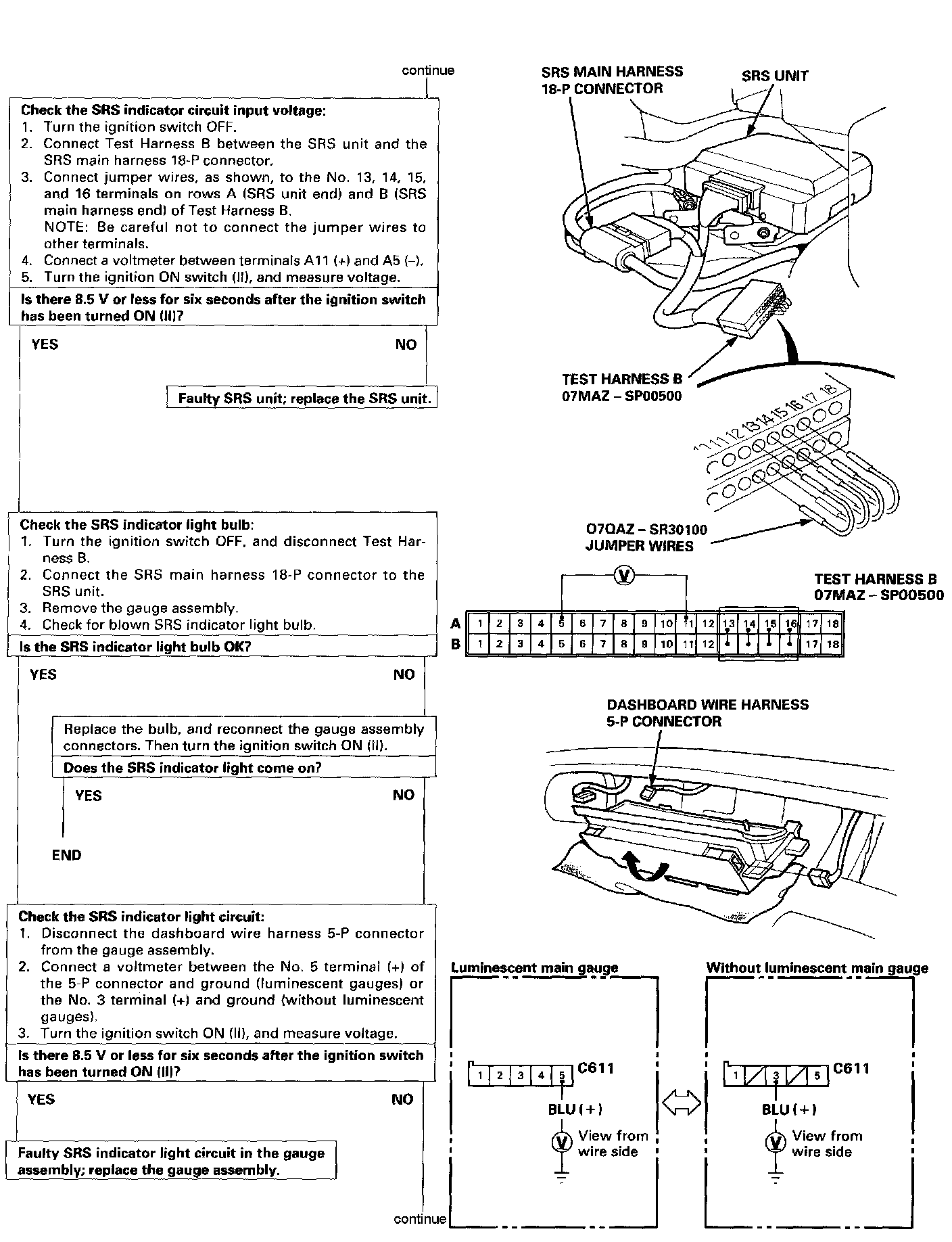

Part 2:

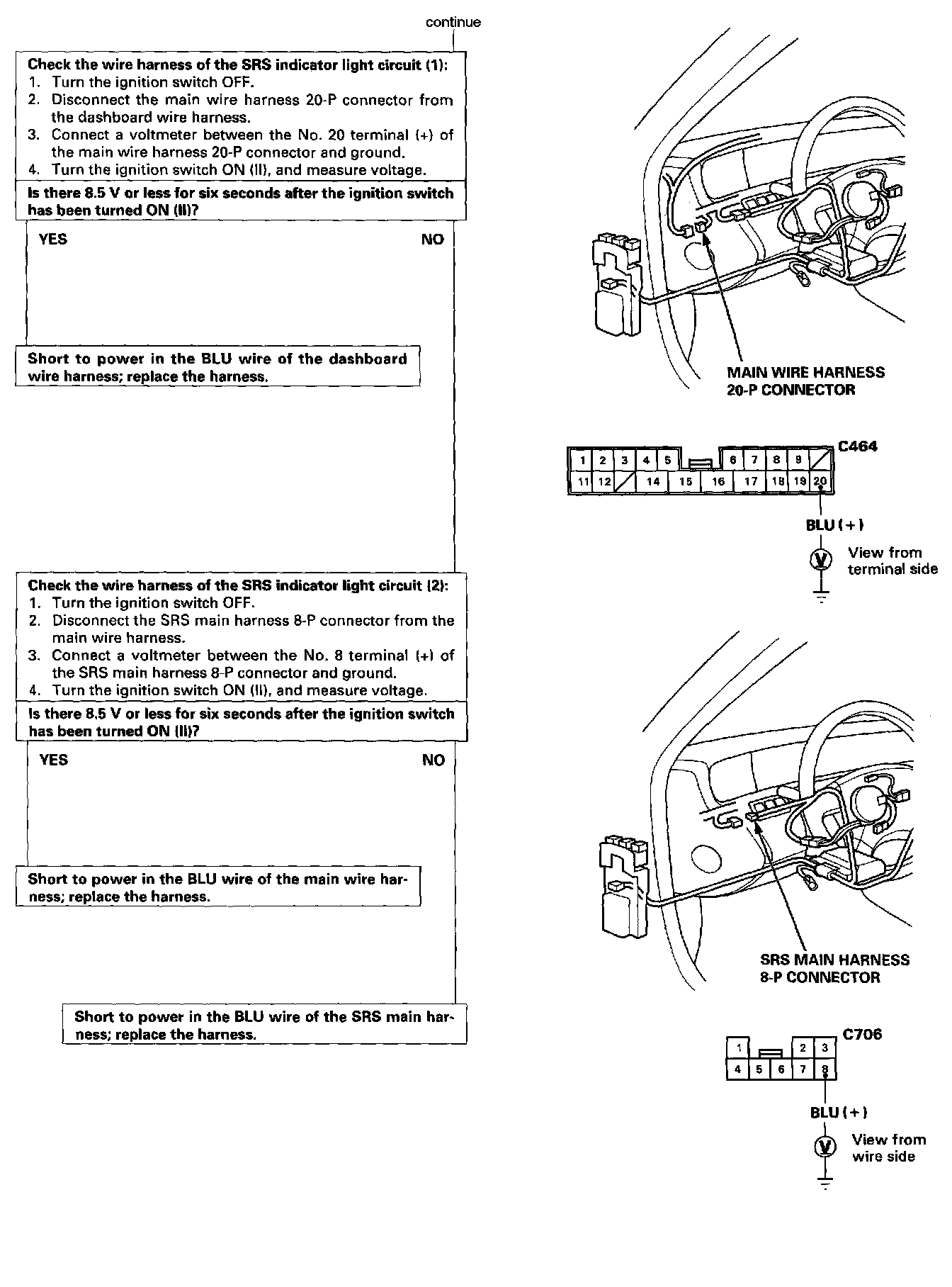

Step 3:
