Clearing Diagnostic Trouble Codes

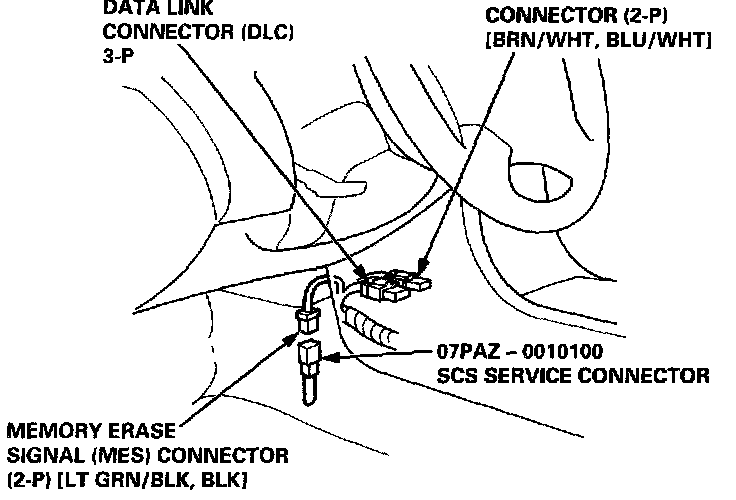

NOTE: Use only the SCS service connector. Otherwise, you may not erase the memory because it is awkward to connect and disconnect a jumper wire quickly enough.

1. Turn the ignition switch OFF, and disconnect the SCS service connector from the service check connector.

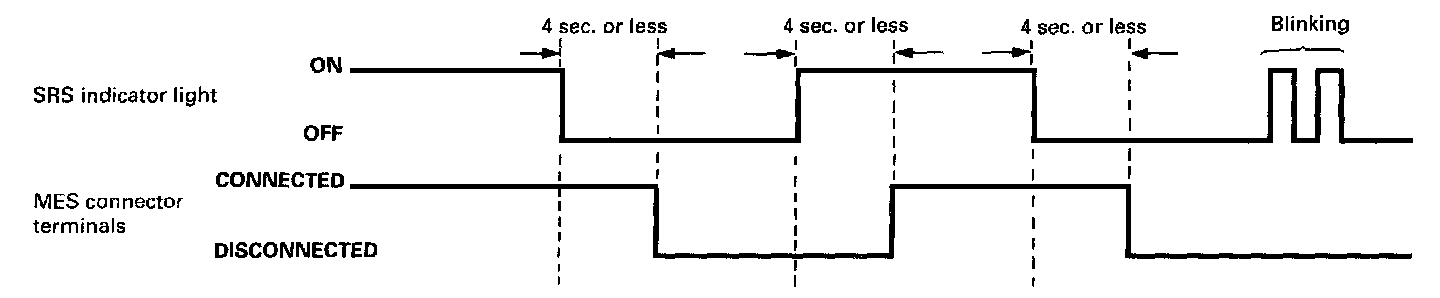

2. Connect the SCS service connector to the MES connector.
3. Turn the ignition switch ON (II).





4. The SRS indicator light comes on for about six seconds and goes off. Remove the SCS service connector from the MES connector within four seconds after the SRS indicator light went off.
5. The SRS indicator light comes on again. Reconnect the SCS service connector to the MES connector within four seconds after the SRS indicator light came on.
6. The SRS indicator light goes off. Remove the SCS service connector from the MES connector within four seconds.
7. The SRS indicator light indicates that the memory is erased by blinking two times.
