Steering Wheel and Cable Reel Alignment

Steering Wheel and Cable Reel Alignment

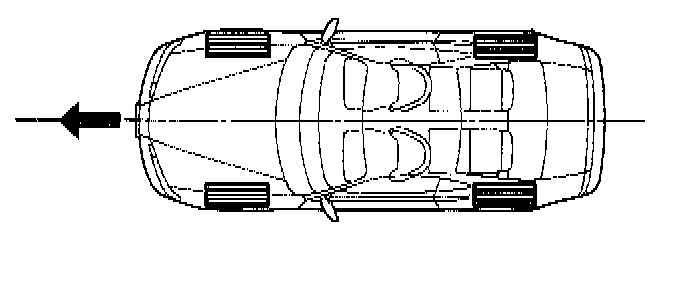

NOTE: To avoid misalignment of the steering wheel or airbag on reassembly, make sure the wheels are turned straight ahead before removing the steering wheel.

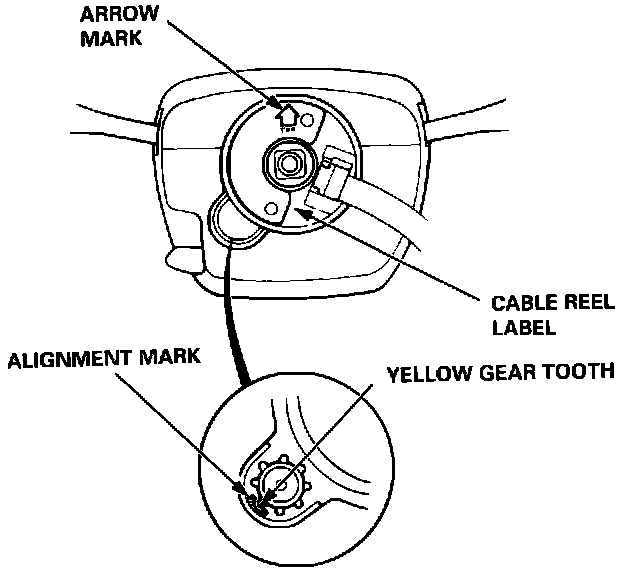

Cable Reel Alignment:

Rotate the cable reel clockwise until it stops. Then rotate it counterclockwise (approximately two turns) until
- the yellow gear tooth lines up with the alignment mark on the cover.
- the arrow mark on the cable reel label points straight up.

Steering Column Removal





CAUTION:

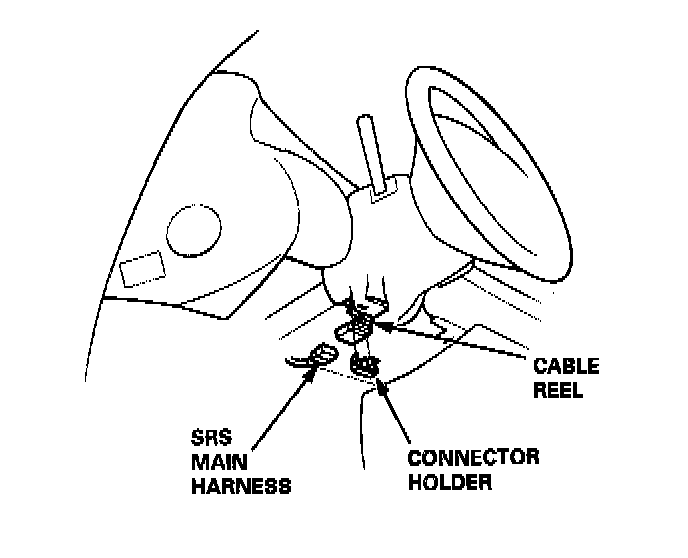

- Before removing the steering column, first disconnect the connector between the cable reel and the SRS main harness.
- If the steering column is going to be removed with- out dismounting the steering wheel, lock the steering by turning the ignition key to 0-LOCK position, or remove the key from the ignition so that the steering wheel will not turn.

Do not replace the original steering wheel with any other design, since it will make it impossible to properly install the airbag (only use genuine Honda replacement parts).

After reassembly, confirm that the wheels are still turned straight ahead and that the steering wheel spoke angle is correct. If minor spoke angle adjustment is necessary, do so only by adjustment of the tie-rods, not by removing and repositioning the steering wheel.

NOTE: Models with 4WS
- Test and adjust the 4WS system
