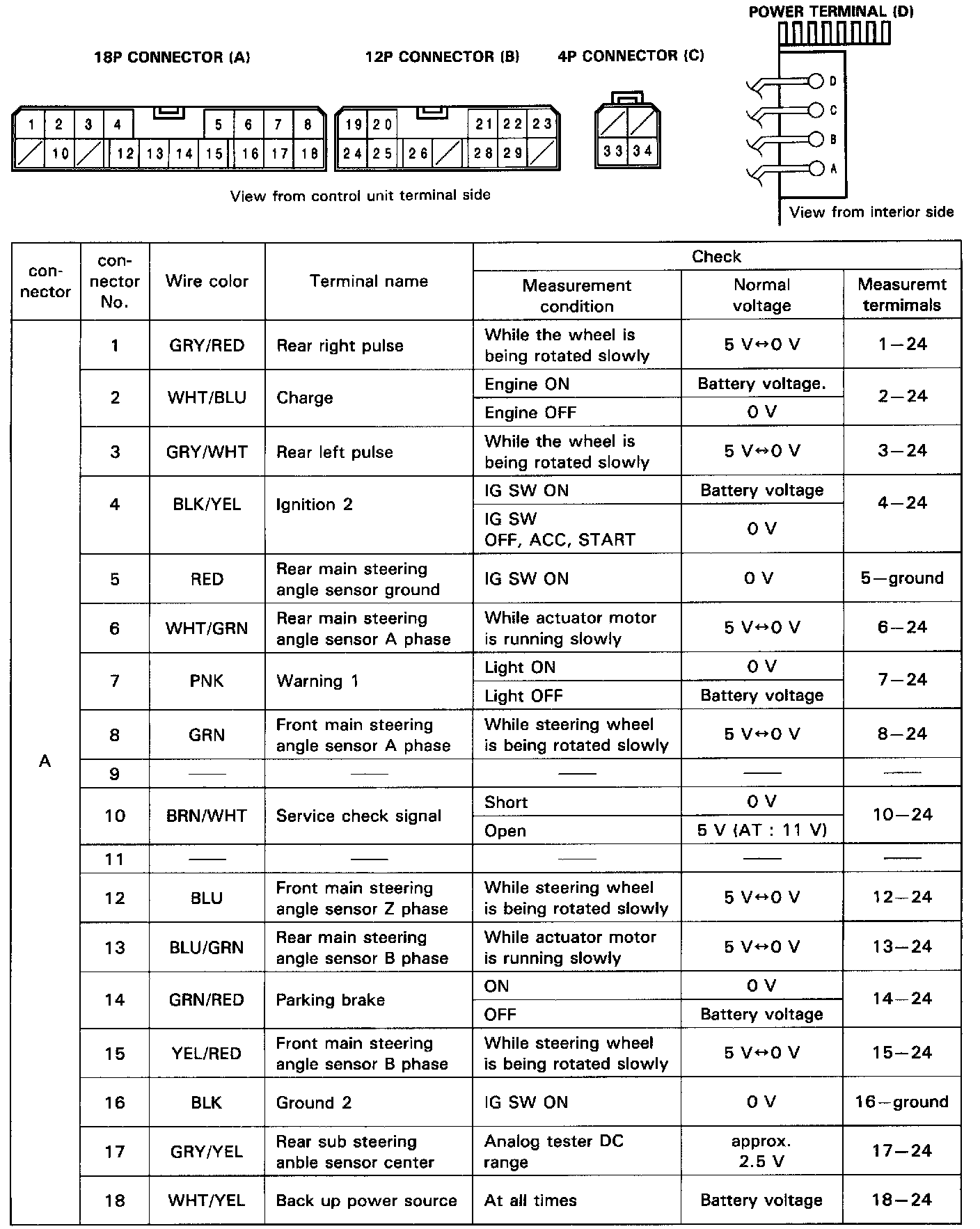

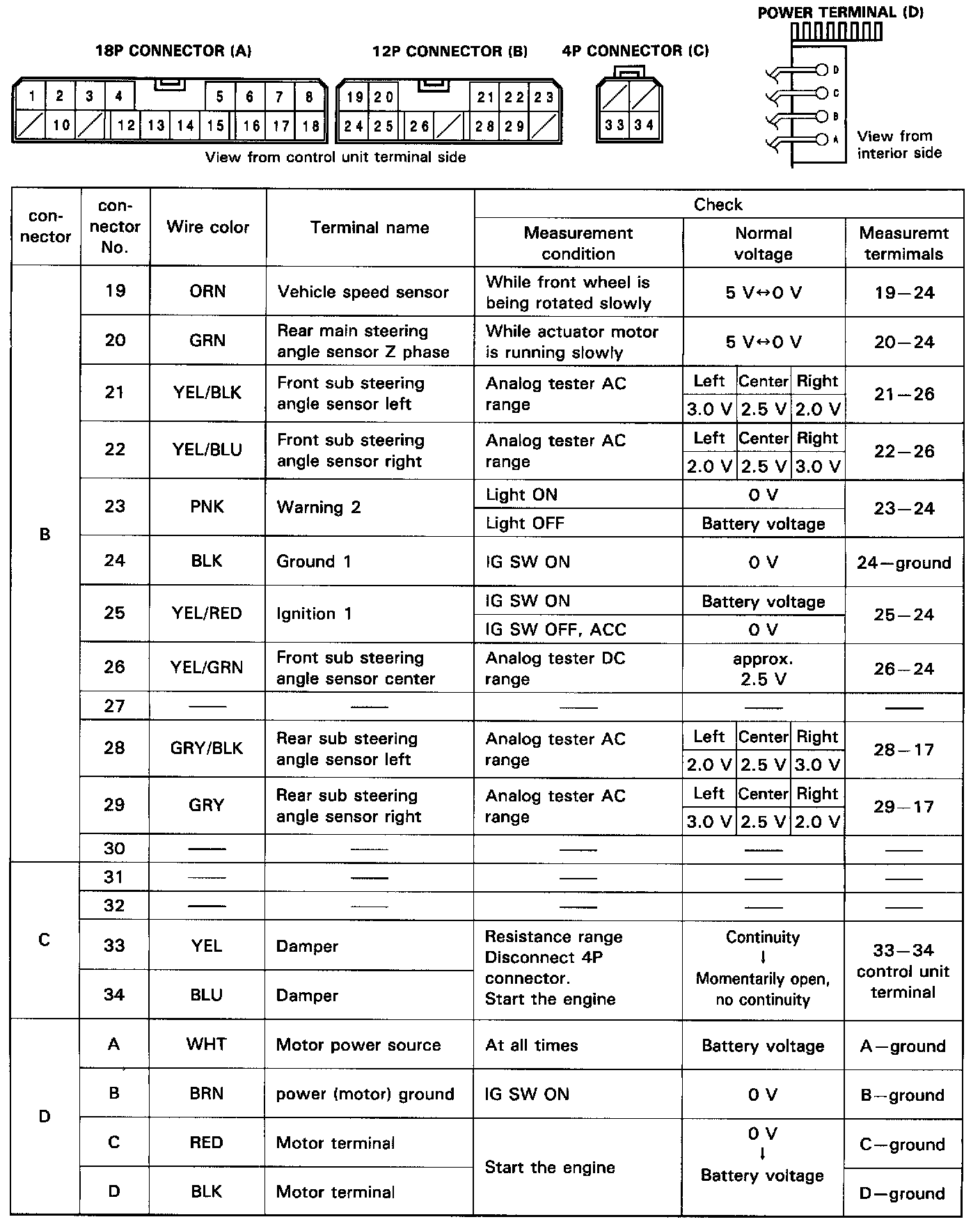

Steering Control Module: Testing and Inspection








IG SW: Ignition Switch
ACC: Accessory (1 position)
The normal voltage is the value when the system is working properly.
