Without Scan Tool

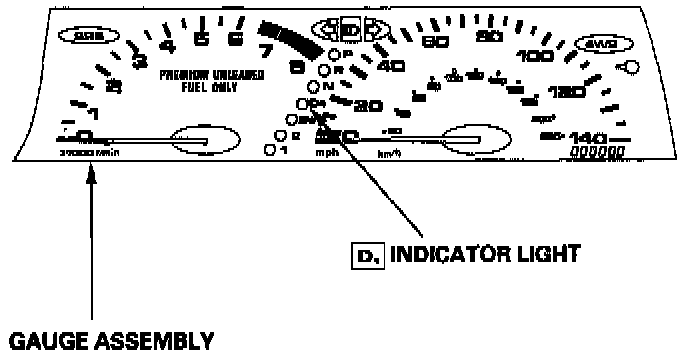

When the PCM senses an abnormality in the input or output systems, the [D4] indicator light in the gauge assembly will blink.

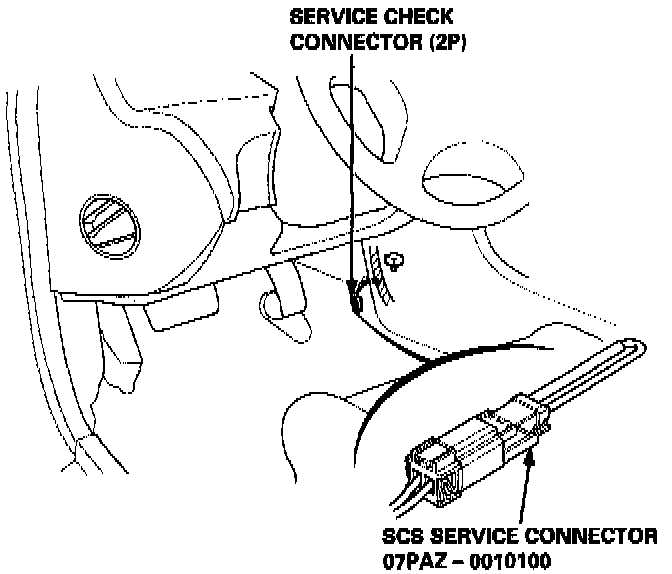

When the Service Check Connector (located behind the front console) is connected with the special tool as shown, the [D4] indicator light will blink the Diagnostic Trouble Code (DTC) when the ignition switch is turned On.




When the [D4] indicator light has been reported on, connect the Service Check Connector with the special tool. Then turn On the ignition switch and observe the [D4] indicator light.

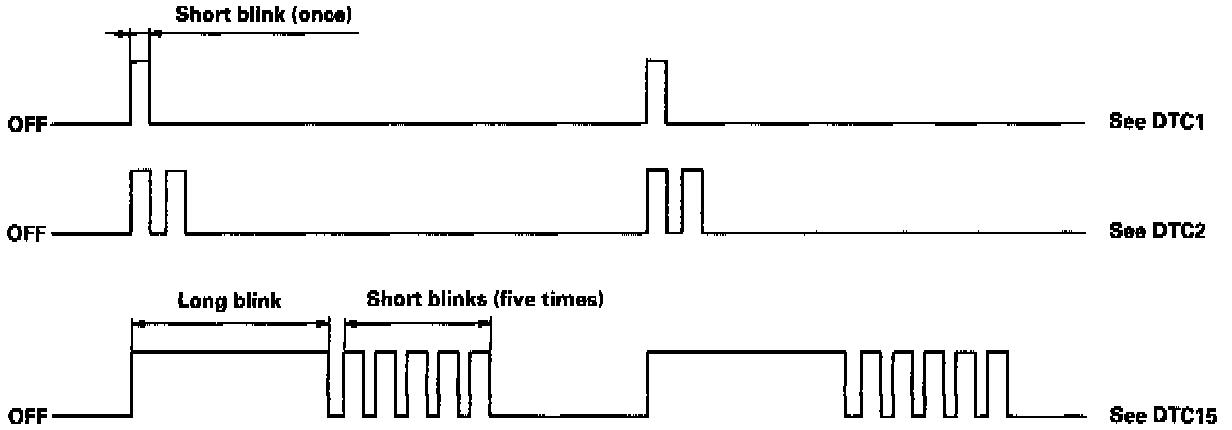

Codes 1 through 9 are indicated by individual short blinks. Codes more than 10 are indicated by a series of long and short blinks. One long blink equals 10 short blinks. Add the long and short blinks together to determine the code. After determining the code, refer to Diagnosis by Symptom.
Some PGM-FI problems will also make the [D4] indicator light come on. After repairing the PGM-FI system, disconnect the CLOCK, RADIO fuse (10 A) in the under-hood fuse/relay box for more than 10 seconds to reset the PCM memory, then recheck.

NOTE: Disconnecting the CLOCK, RADIO fuse also cancels the radio anti-theft code, preset stations and the clock setting. Get the customer's code number, and make note of the radio presets before removing the fuse so you can reset them.
