Clearing Diagnostic Trouble Codes/TCM Reset Procedure

1. Turn the ignition switch OFF.

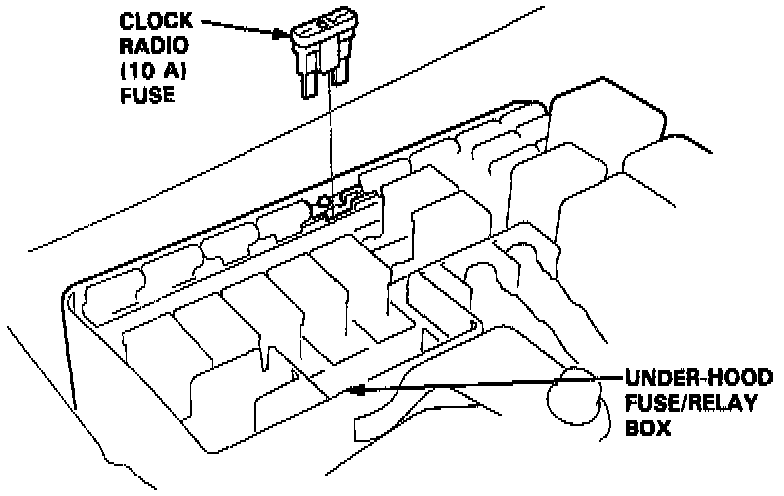

2. Remove the No. 43 CLOCK, RADIO fuse (10 A) from the under-hood fuse/relay box for 10 seconds to reset the PCM.

NOTE:
- Disconnecting the No. 43 CLOCK, RADIO fuse also cancels the radio anti-theft code, preset stations and clock setting.
- Get the customer's code number, and make note of the radio presets before removing the fuse so you can reset them.
- The PCM memory cannot be cleared by using the OBD II Scan Tool or Honda PGM Tester; be sure to remove the CLOCK, RADIO fuse to reset the PCM.
