Connector/Circuit ID

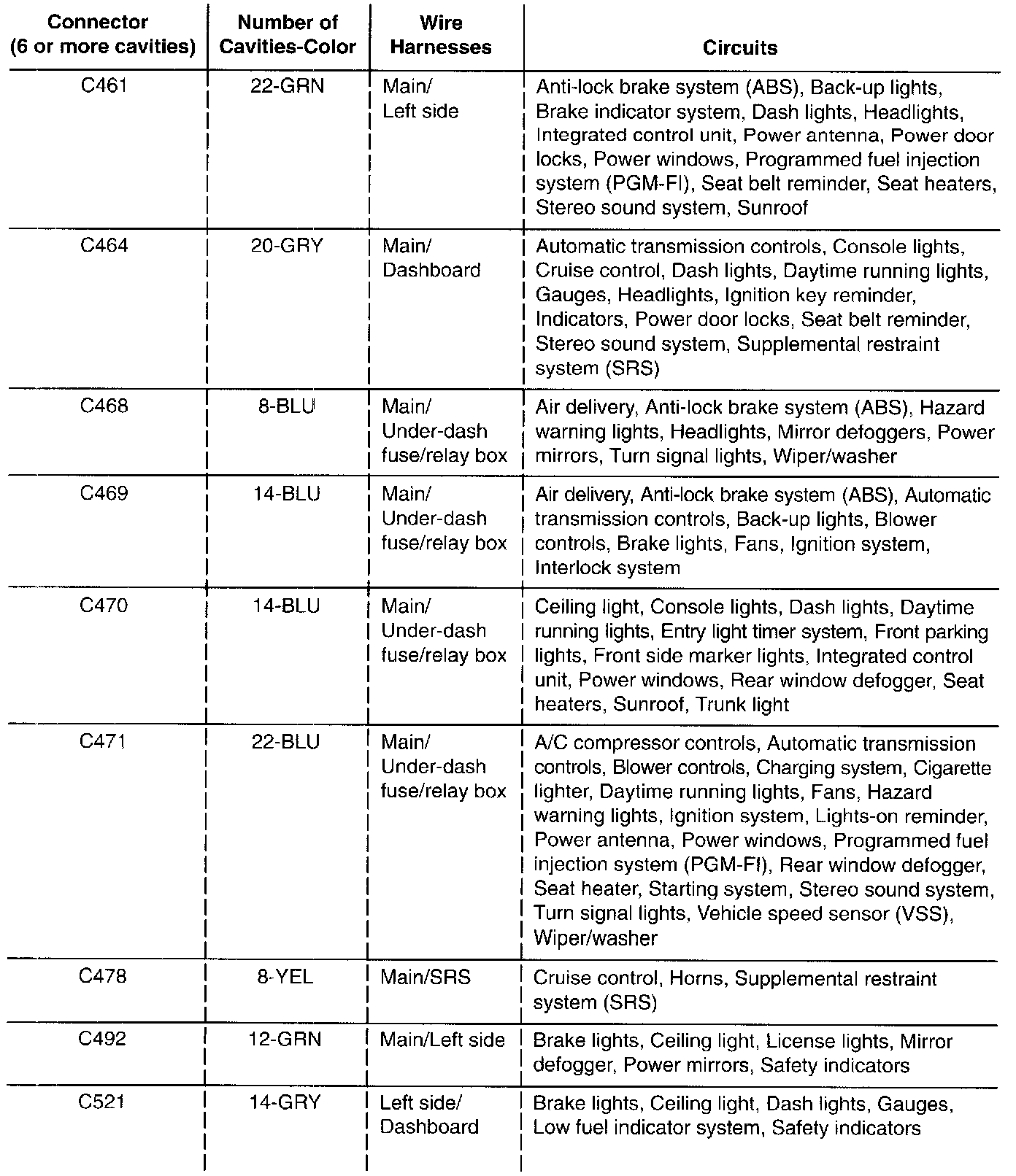

Circuit Identification For In-Line And Fuses Box Connectors (Part 1 of 4):

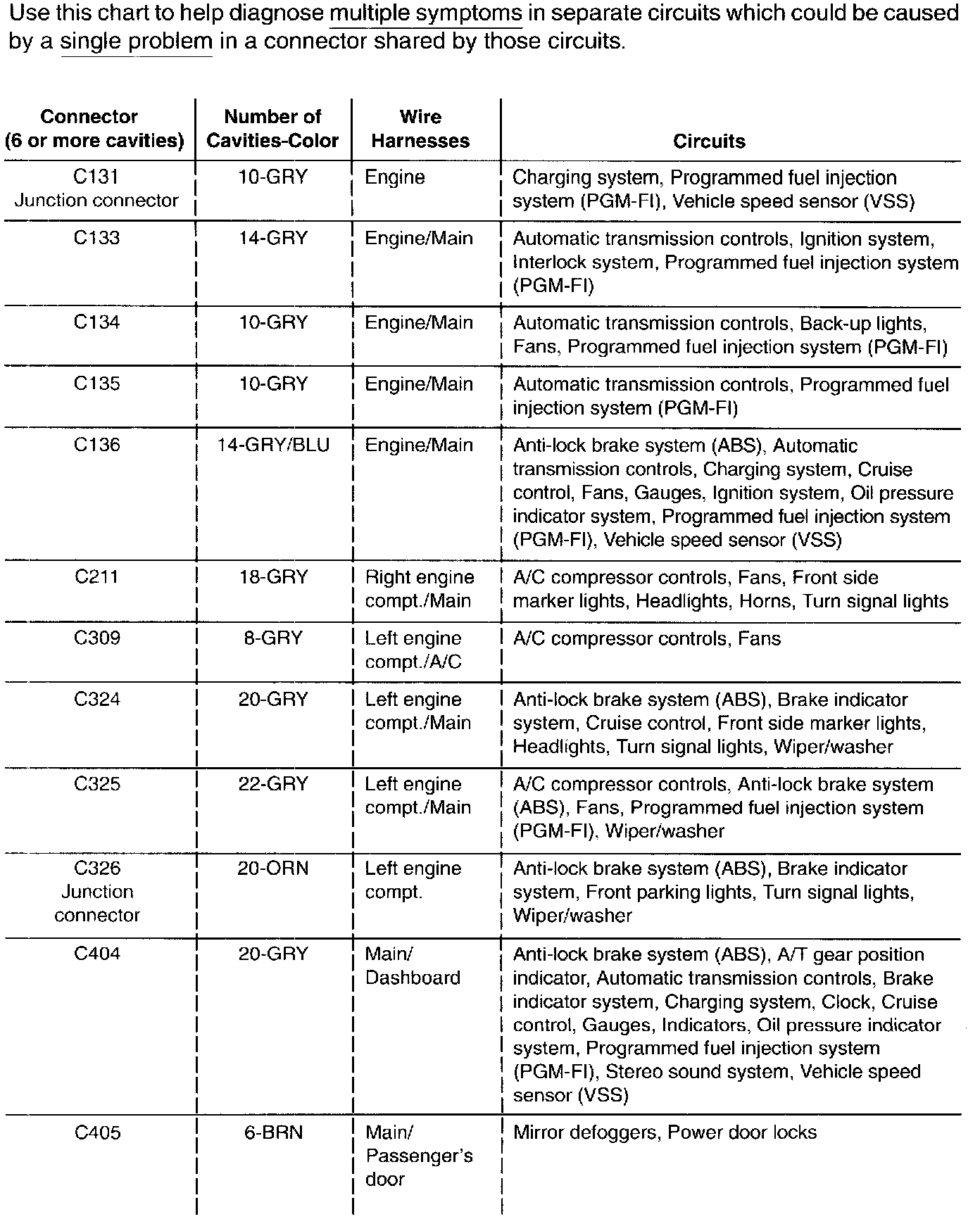

Circuit Identification For In-Line And Fuses Box Connectors (Part 2 Of 4):

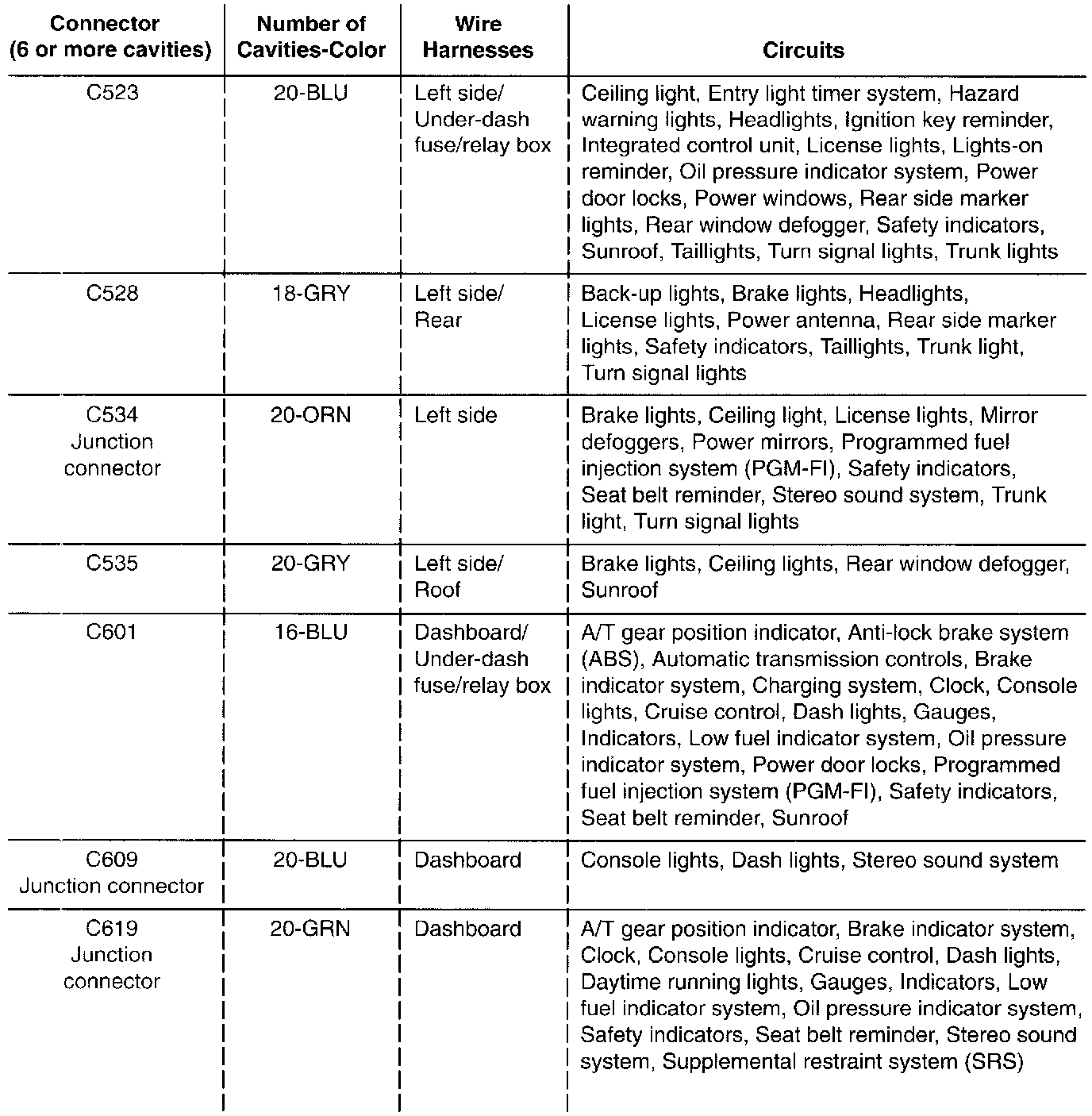

Circuit Identification For In-Line And Fuses Box Connectors (Part 3 Of 4):




Circuit Identification For In-Line And Fuses Box Connectors (Part 4 Of 4):
