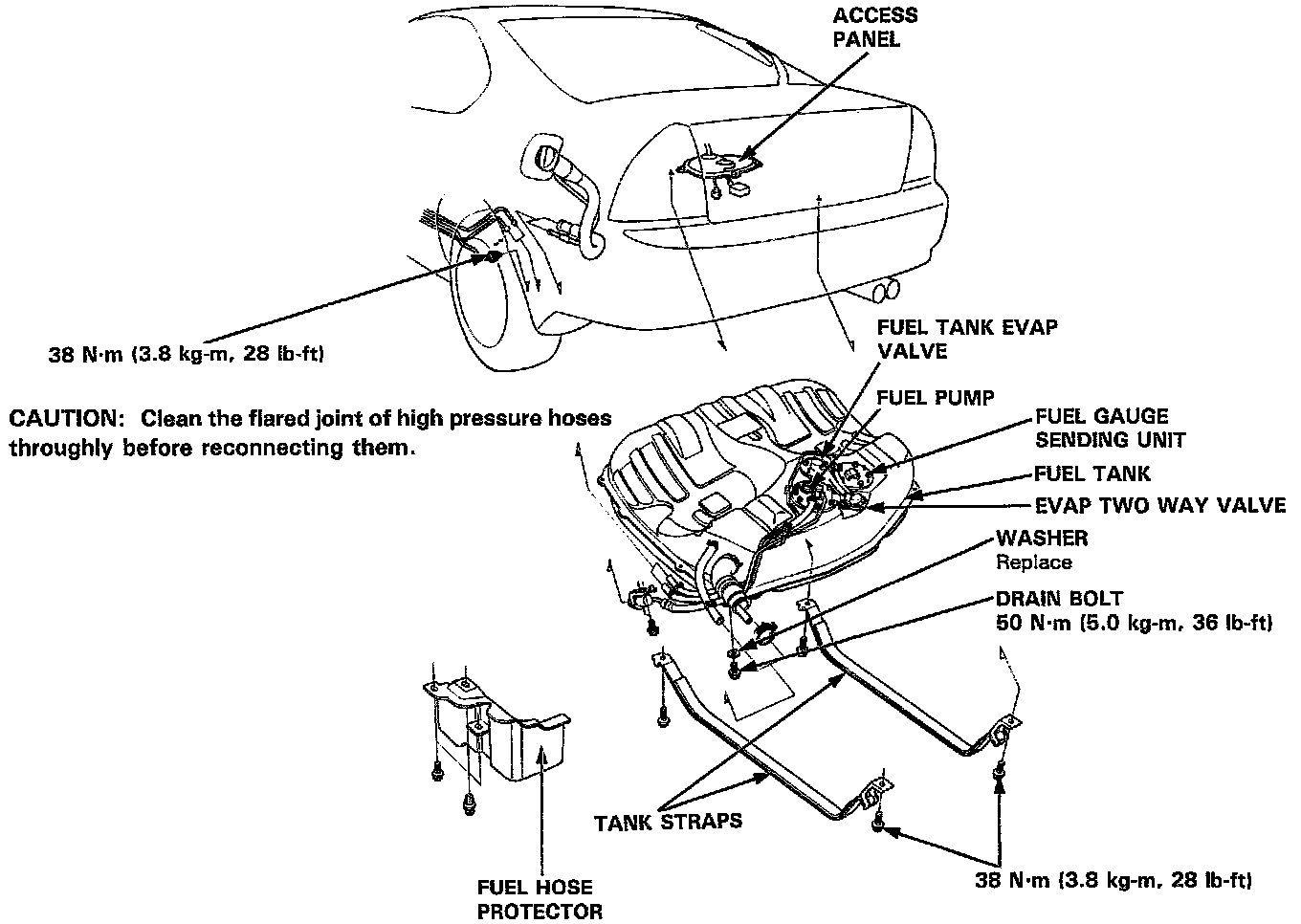

Fuel Tank: Service and Repair

WARNING: Do not smoke while working on fuel system. Keep open flame away from your work area.

1. Relieve the fuel pressure.
2. Jack up the car and support with Jackstands.





3. Remove the Drain Bolt, and drain the Fuel into an approved container.
4. Remove the Access Panel.
5. Disconnect the Connectors from the Fuel Gauge Sending Unit and the Fuel Pump, then remove the Fuel Feed Line and Return Hose.

CAUTION: Be sure to turn the Ignition Switch "OFF" before disconnection the wires.

6. Remove the Fuel Hose Protectors.
7. Disconnect the Hoses.

CAUTION: When disconnecting the Hoses, slide back the Clamps, then twist Hoses as you pull, to avoid damaging them.

8. Place a Jack, or other support, under the Tank.
9. Remove the Strap Nuts and let the Straps fall free.
10. Remove the Fuel Tank.

NOTE: The Tank may stick on the Undercoat applied to its Mount. To remove, carefully pry it off the Mount.

11. Install a new Washer on the Drain Bolt, then install parts in the reverse order of removal.
