Fuel Supply Line: Testing and Inspection
NOTE:

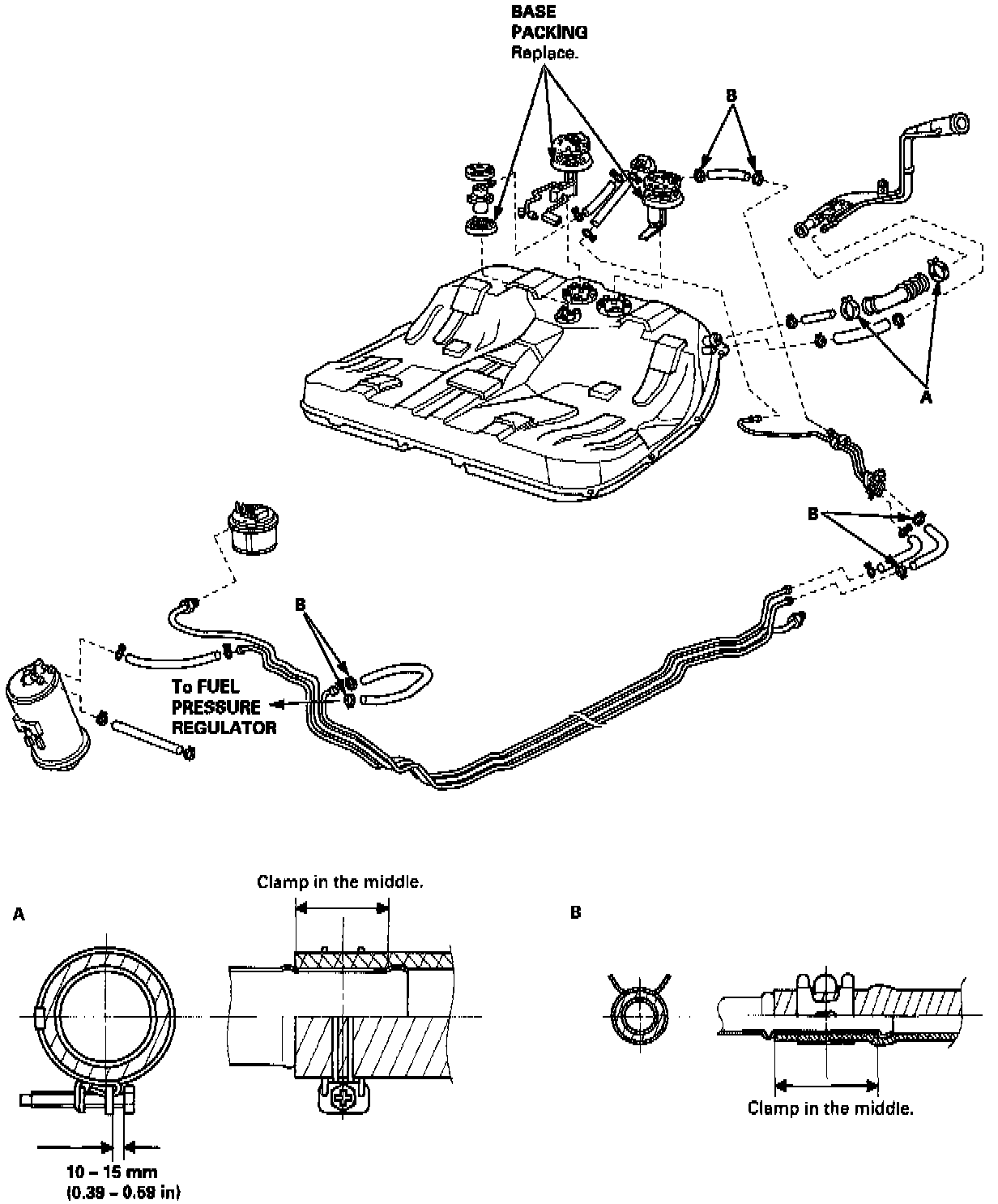

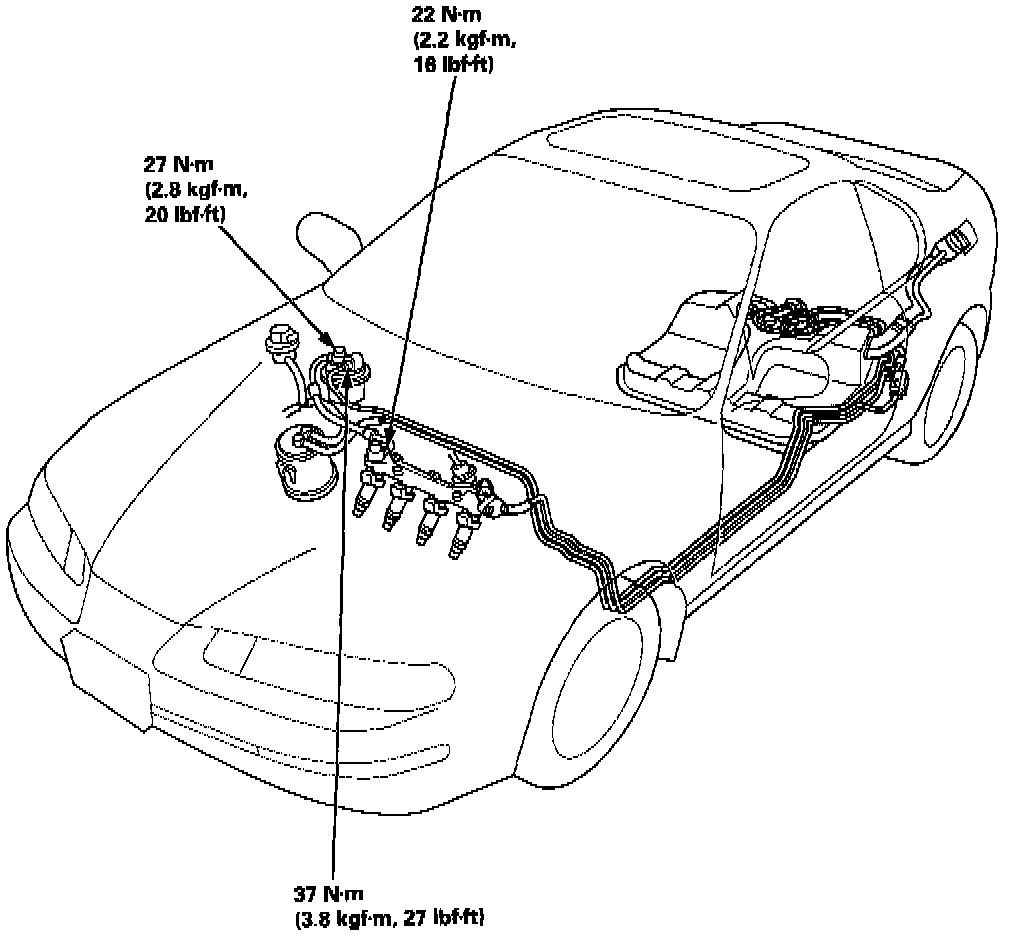

Check fuel system lines, and hoses and
fuel filter
for damage, leaks or deterioration, and replace if necessary.
NOTE:
Check all hose clamps and retighten if necessary.
