Fuel Pump: Service and Repair

WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area.

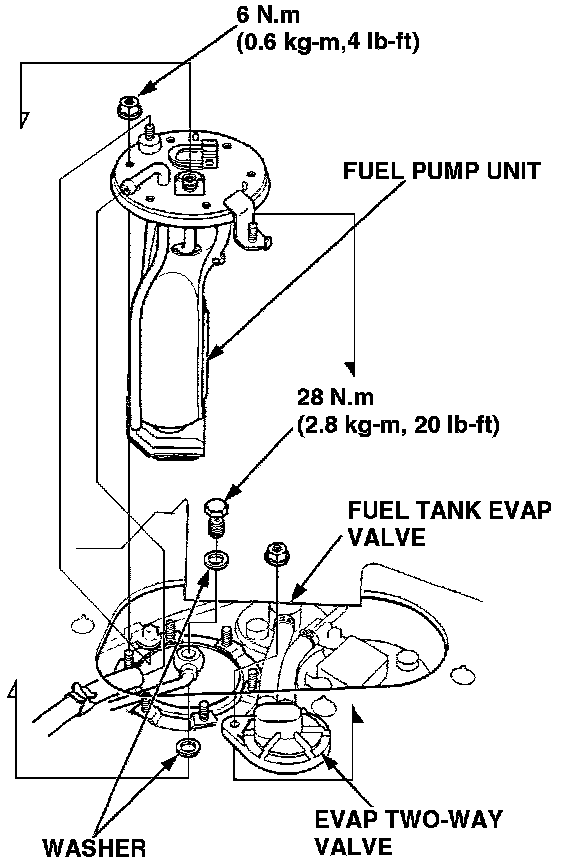

1. Relieve Fuel pressure.
2. Remove the access panel in the trunk.
3. Disconnect the 2 P Connector from the Fuel pump.





4. Remove the Fuel Pump Mounting Nuts.
5. Remove the Fuel Pump from the Fuel Tank.
