Fuel Pressure Regulator: Description and Operation

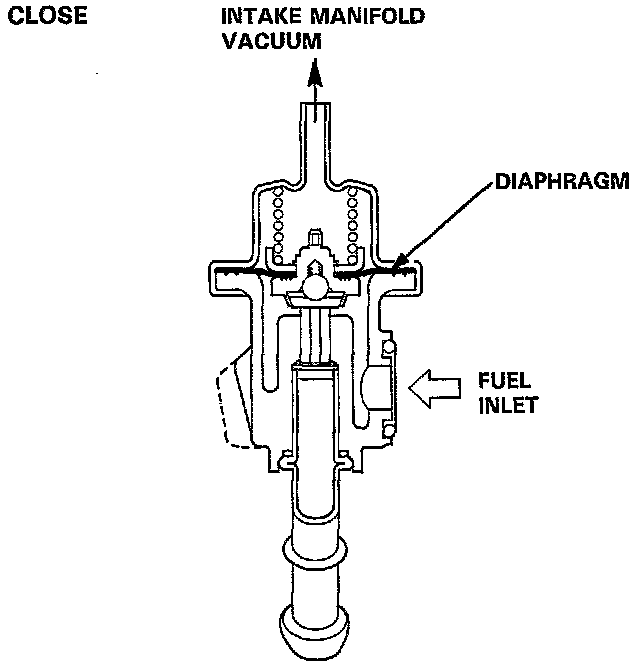

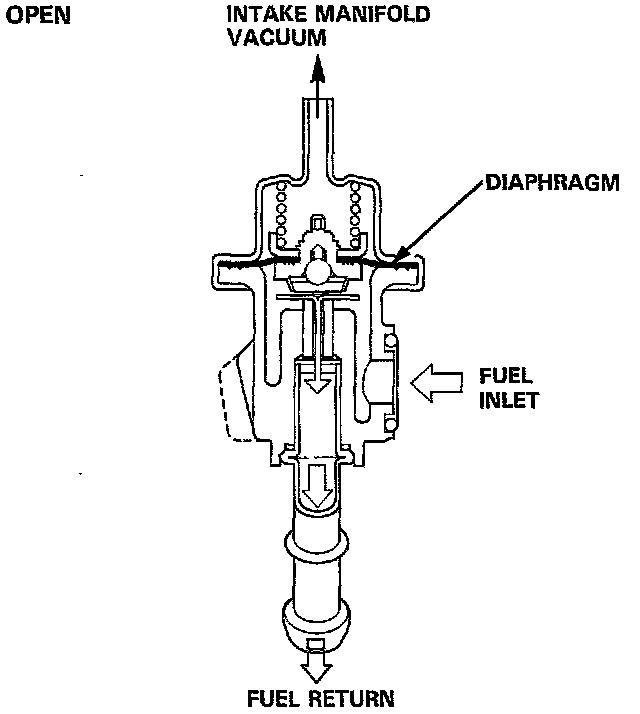

The Fuel Pressure Regulator maintains a constant fuel pressure to the Fuel Injectors. When the difference between the fuel pressure and Manifold pressure exceeds 300 kPa (3.0 kg/cm2, 43 psi), the Diaphragm is pushed upward, and the excess fuel is fed back into the Fuel Tank through the Return Line.
