Without Scan Tool

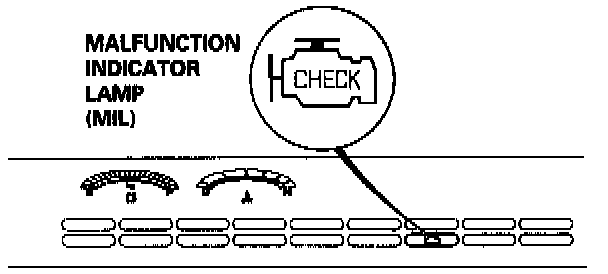

DTCs will be indicated by the blinking of the Malfunction Indicator Lamp (MIL) with the SCS service connector connected.

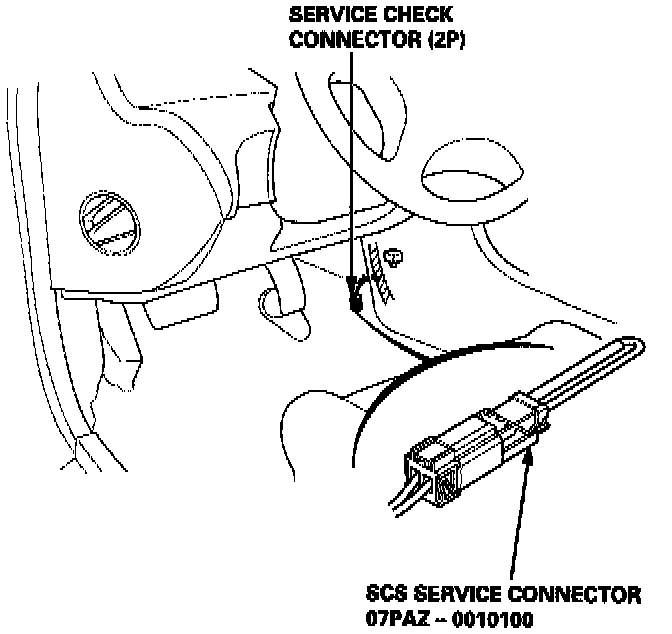

Connect the SCS service connector to Service Check Connector as shown. (The 2P Service Check Connector is located behind the front console.) Turn the ignition switch ON.
