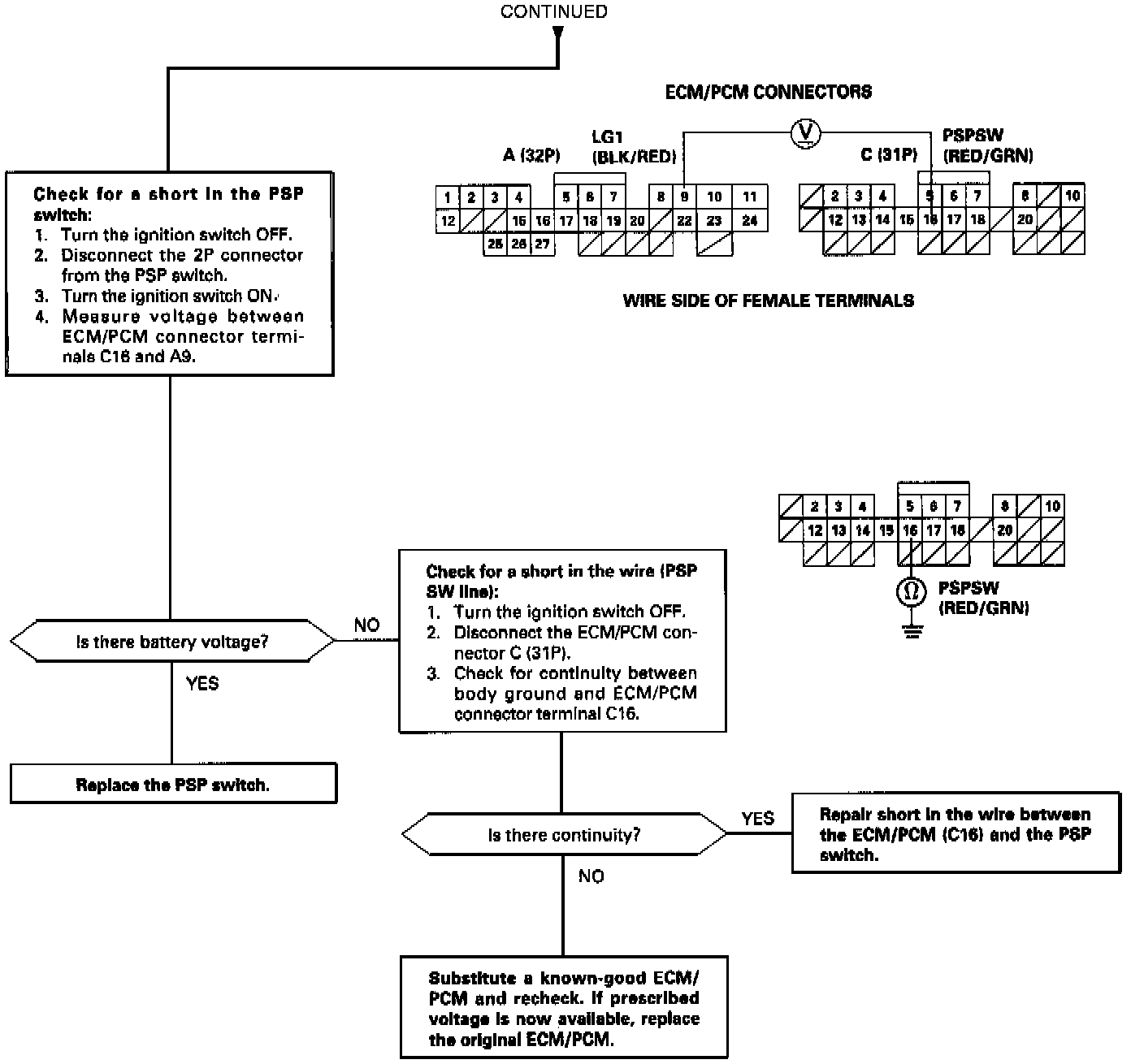

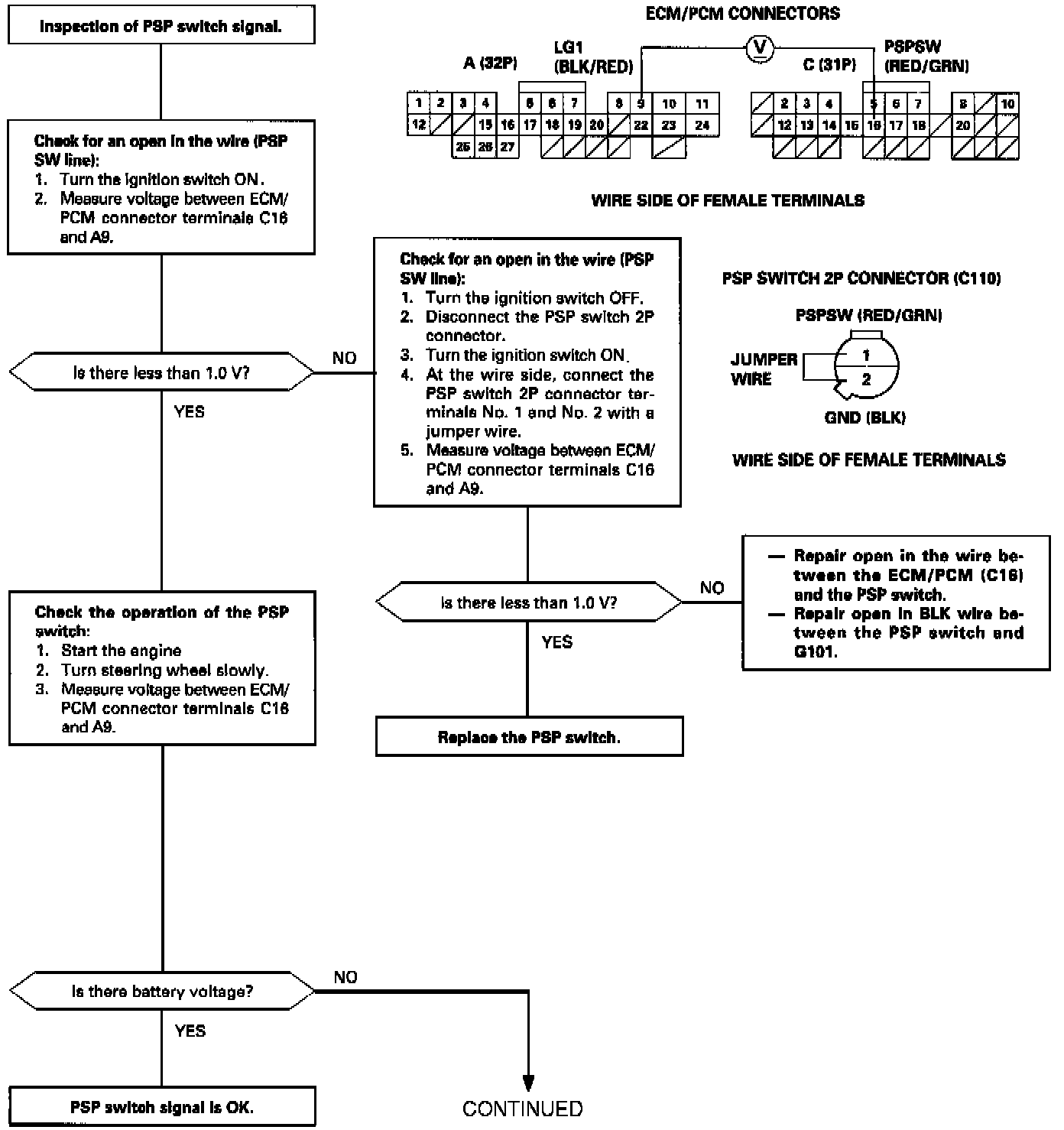

Power Steering Pressure (PSP) Switch Signal
Power Steering Pressure (PSP) Switch Signal
This signals the
ECM/PCM
when the power steering load is high.
