Camshaft Position Sensor: Description and Operation




DESCRIPTION

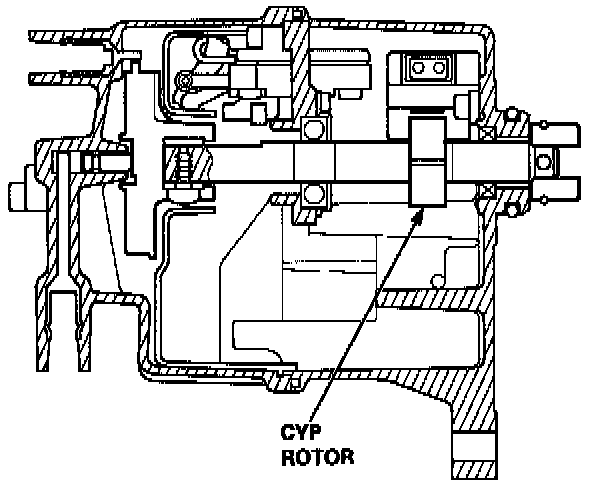

The CYP Sensor detects the position of No. 1 cylinder for sequential fuel injection to each cylinder.
