Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Cranking Signal >> Testing and Inspection

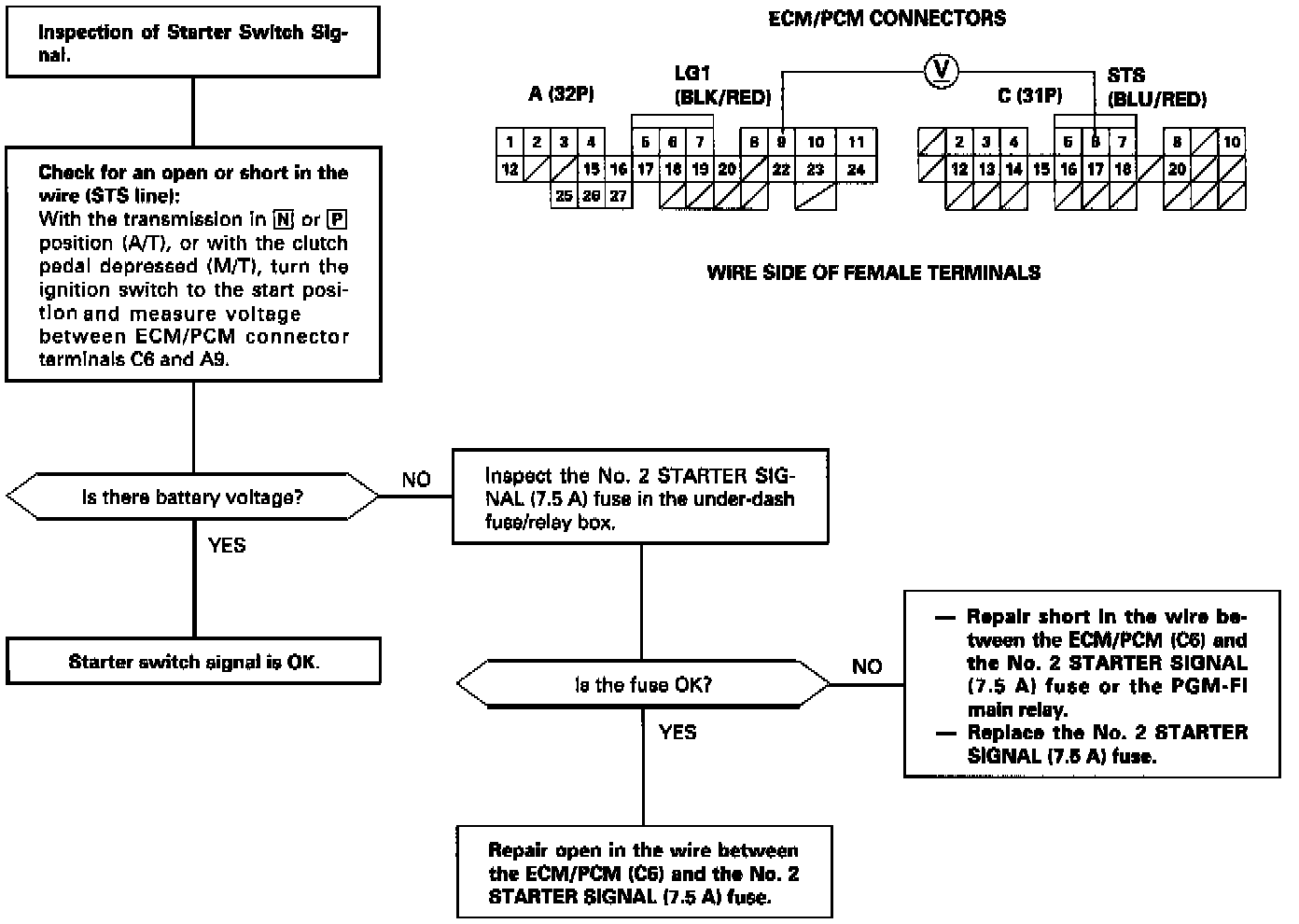

Cranking Signal: Testing and Inspection




This signals the ECM/PCM when the engine is cranking.
