Bearing End Play

Bearing End Play

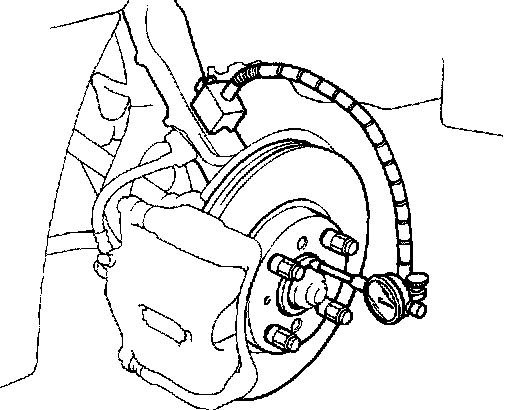

Front Wheel End Play




Standard: 0 - 0.05 mm (0 - 0.002 in)

.

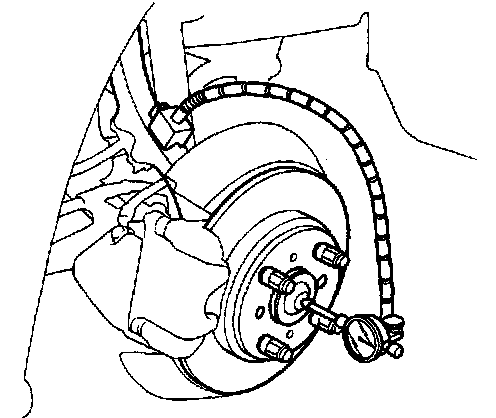

Rear Wheel End Play




Standard: 0 - 0.05 mm (0 - 0.002 in)
