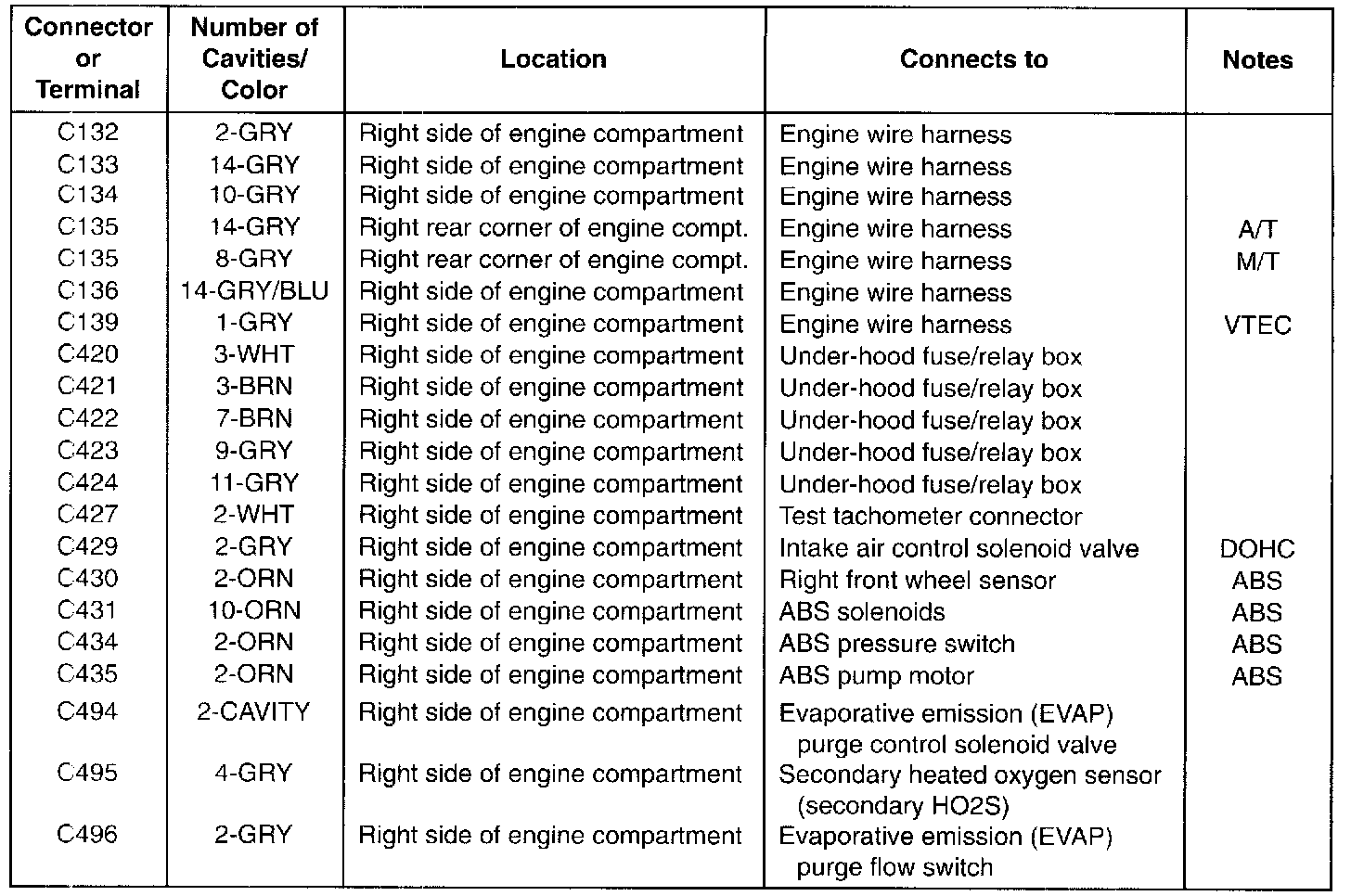

Main Wire Harness (Right Side of Engine Compartment Branch)
Main Wire Harness (Right Side of Engine Compartment Branch)

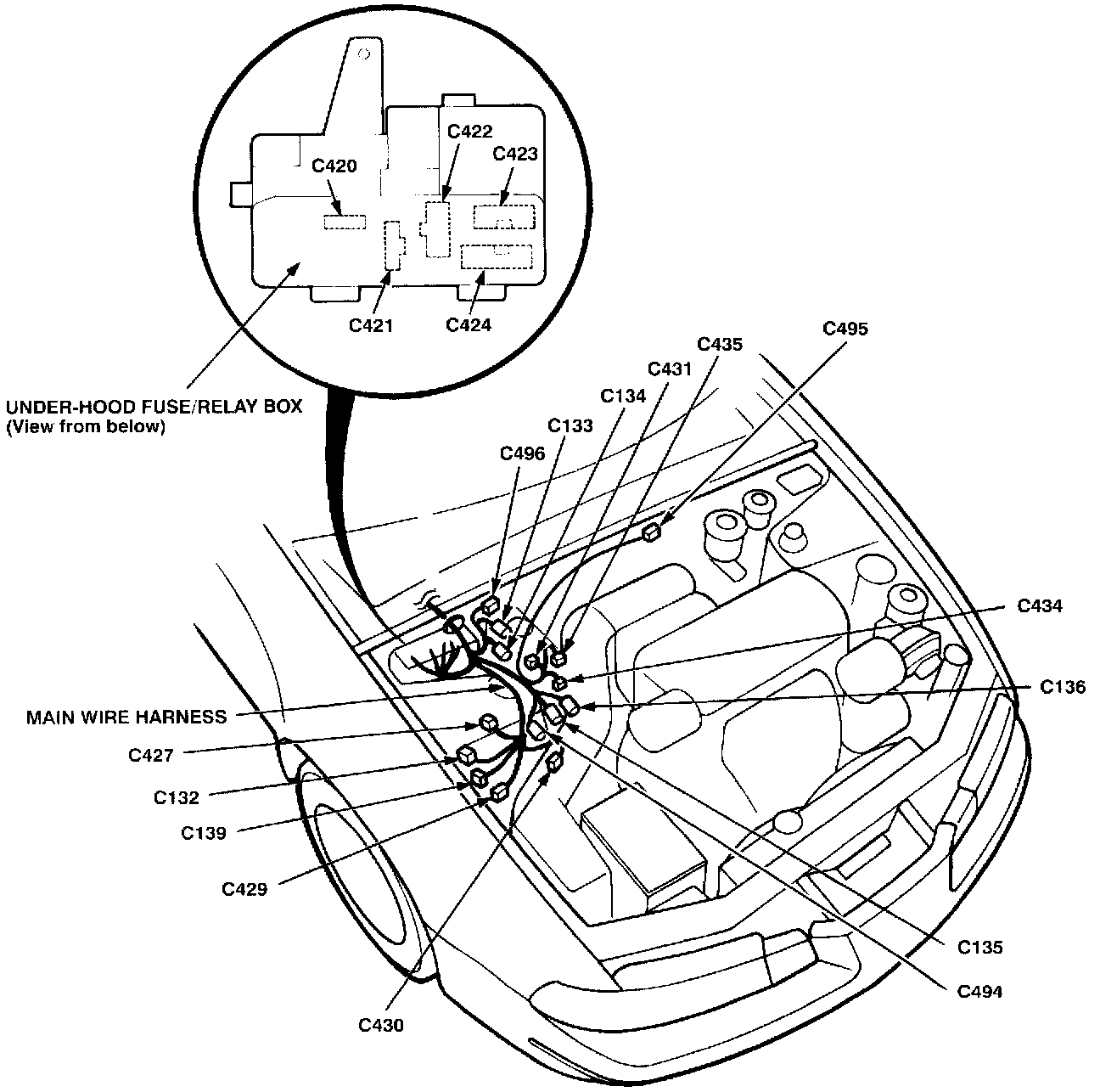

Main Wire Harness (Right Side Of Engine Compartment Branch):
Main Wire Harness (Right Side Of Engine Compartment Branch):
