Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Transmission Shift Position Indicator Lamp >> Diagrams >> Electrical Diagrams >> Without Luminescent Gauges

Without Luminescent Gauges

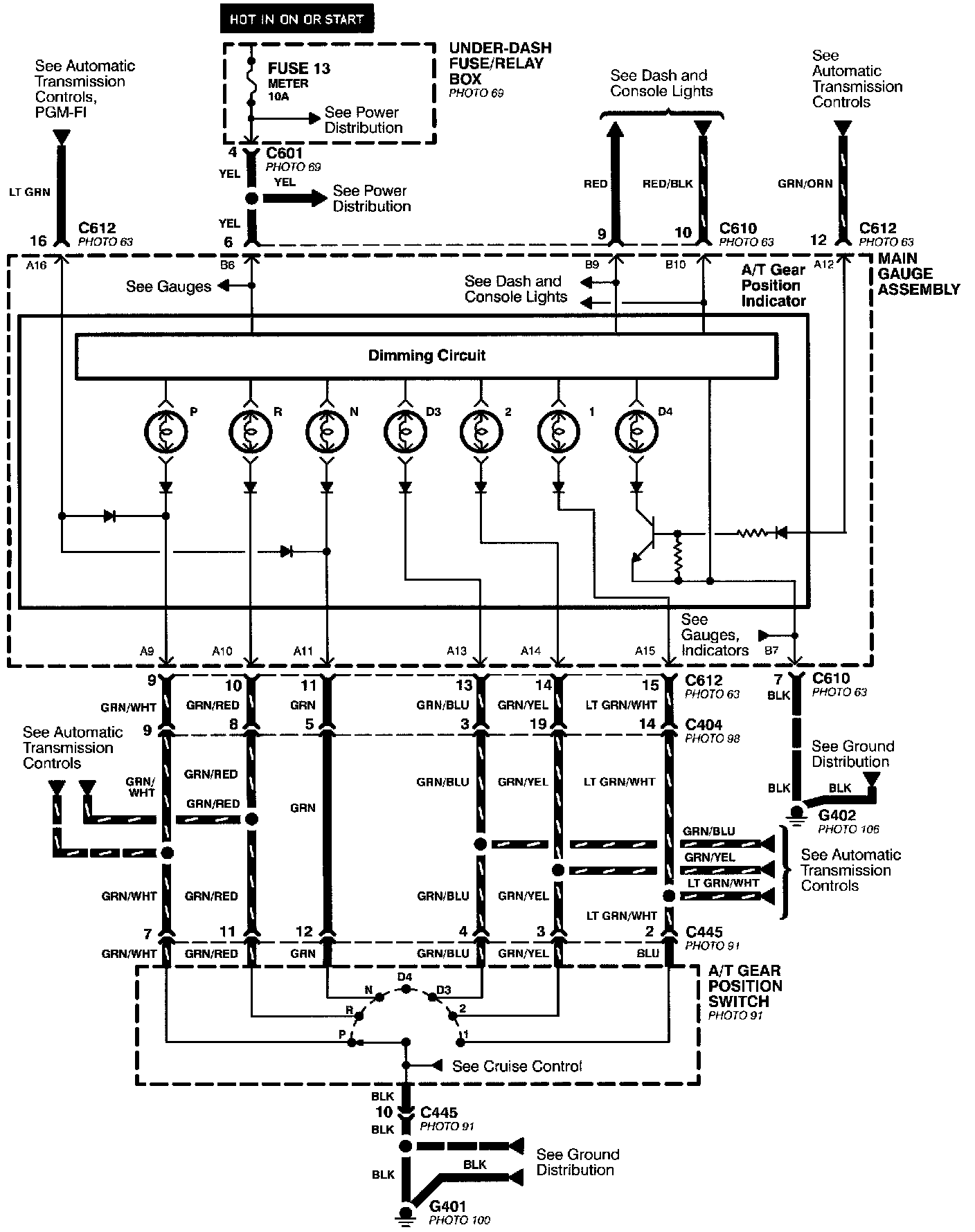

A/T Gear Position Indicator- Without Luminescent Gauges:
