Instruments - Luminescent Gauge Troubleshooting

Bulletin No.
96-041

Issue Date
SEP 9, 1996

Model
1994-96
PRELUDE

Applicable To
Si, VTEC

File Under
ELECTRICAL

Service Manual Update: Luminescent Gauge Troubleshooting

PURPOSE

The service manual does not have troubleshooting procedures for the luminescent gauges. Use this service bulletin and the 1996 Prelude ETM to troubleshoot problems with the gauge display.





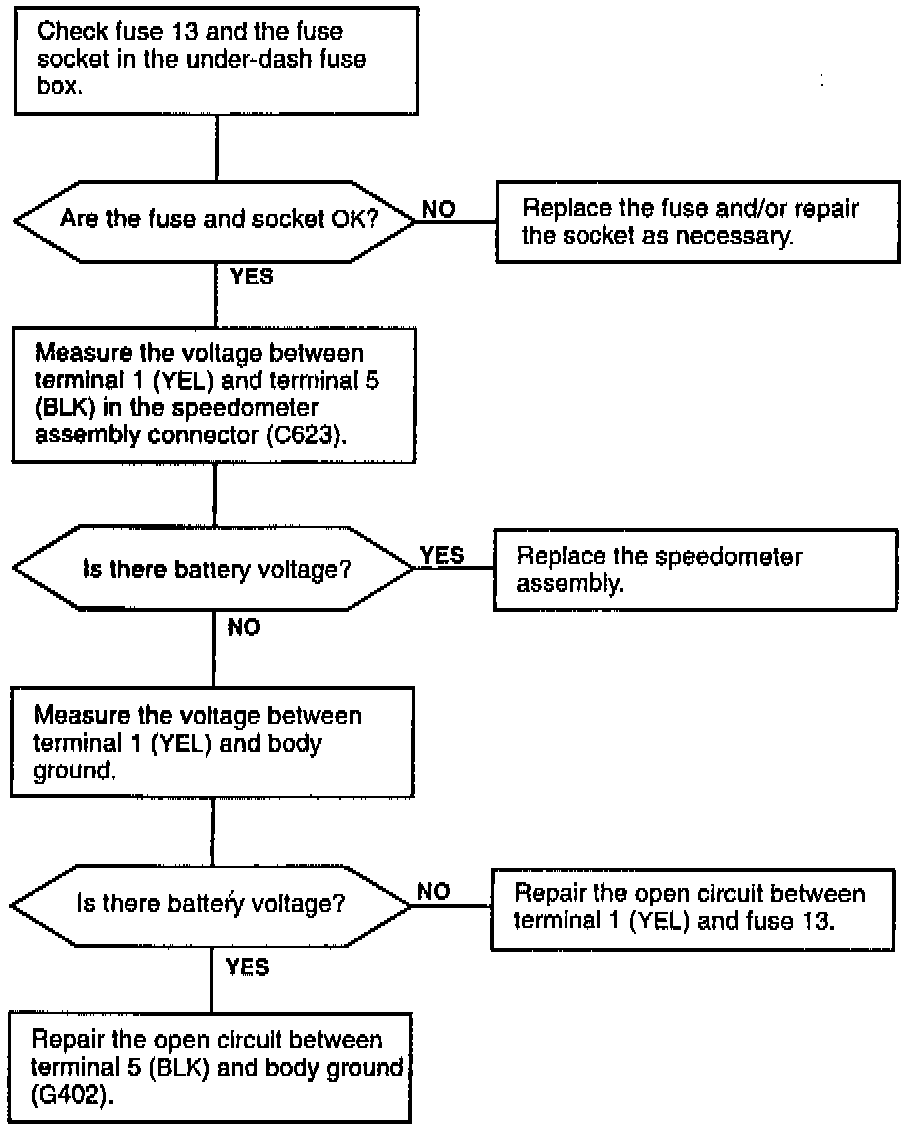

Troubleshooting Procedure A:
The gauges do not illuminate, and the speedometer and tachometer do not work. Take all measurements with the ignition switch ON, all electrical connectors connected, the headlight switch OFF, and the instrument panel brightness control on HIGH.

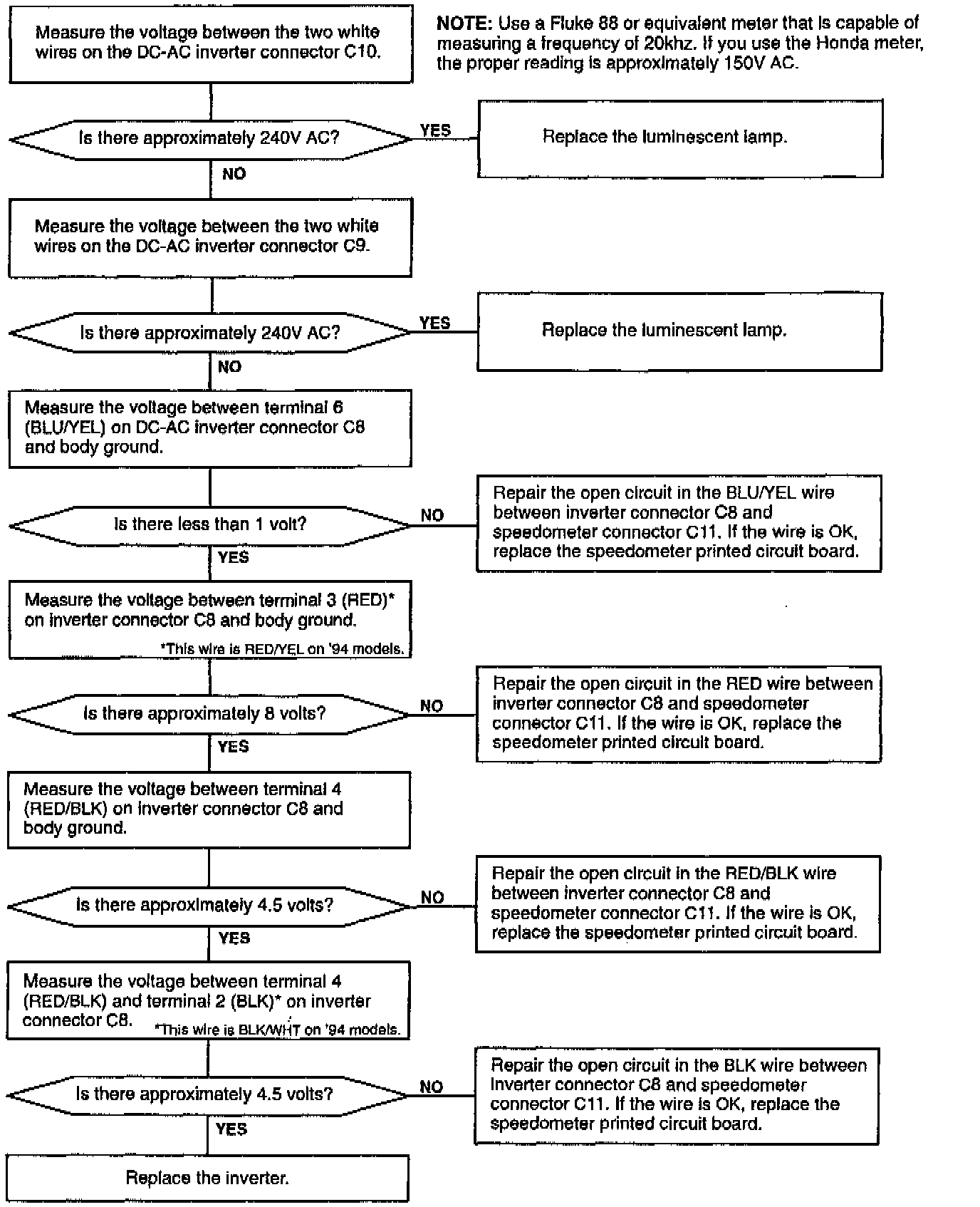

Troubleshooting Procedure B:
The gauges do not Illuminate, but the speedometer and tachometer are working. Take all measurements with the ignition switch ON, all electrical connectors connected, the headlight switch OFF, and the instrument panel brightness control on HIGH.
