Tools - Denso HLD-100 Halogen Leak Detector: Overview
97-027Applies To: ALL Models
May 12, 1997
Denso HLD-100 Halogen Leak Detector
A new tool is required to accurately detect A/C refrigerant leaks in all Honda vehicles. The Denso HLD-100 Halogen Leak Detector has the following features:
- Works with both R-12 and R-134a systems.
- Impact resistant polyethylene case.
- Auto balance adjustment; eliminates false alarms by adjusting for background gases in the air.
- A calibration reference vial provides a leak signal to check the unit's accuracy.
- Has a flexible probe extension; finds leaks in hard to reach places.
- Small and portable; the battery, cables, and flexible probe extension probe can be transported together as a unit.
NOTE: Yokogawa H-10P, H-10N, and Kent Moore # J39400 are equivalent to the HLD-100.
SPECIFICATIONS
Sensing Element Positive Ion Emission Heated Diode
Sensitivity (moving probe test per SAE Std. J1627)
Alarm Sensitivity:
Switch Position R-134a R-12
Leak Check 3.0 oz./yr 1.0 oz./yr
Search 2 0.5 oz./yr 0.1 oz./yr
Search 1 0.1 oz./yr 0.05 oz./yr
Leak Alarm Audible with visible neon lamp
Response Time Approximately 1 second (slightly longer with flexible probe extension)
Warm Up Time Approximately 2 minutes
Accuracy Exceeds SAE J1627
Hose Length 4.5 feet
Probe Extension Length 14 inches
Ambient Operating Temp 320 to 104°F
Dimensions 5.5" x 10.5" x 8.5"
Weight 5 pounds
Agency Listings UL file SA9717, SAEJ1627, CE-Mark
Power 12 VDC-Internal rechargeable, sealed lead acid battery 12 VDC-External Battery using battery clamp/cigarette lighter plug

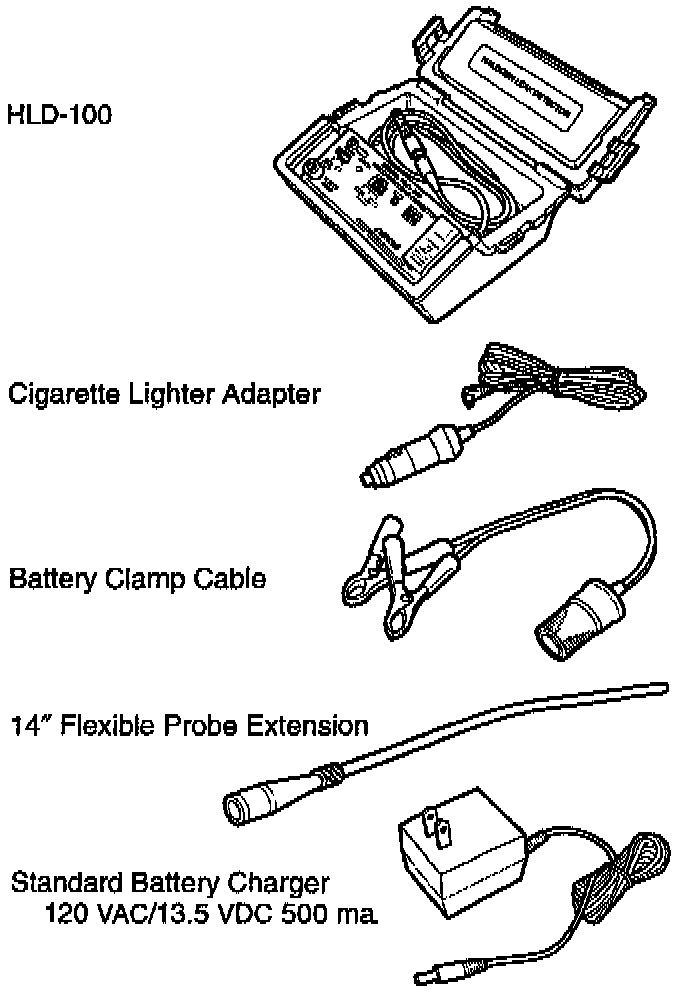

DENSO HALOGEN LEAK DETECTOR KIT
ORDERING INFORMATION
Can be ordered through the American Honda Tool and Equipment Program at 800-346-6327. Ask for the HLD-100.
