Condenser Fan: Testing and Inspection
Image 22-8:
Image 22-9:

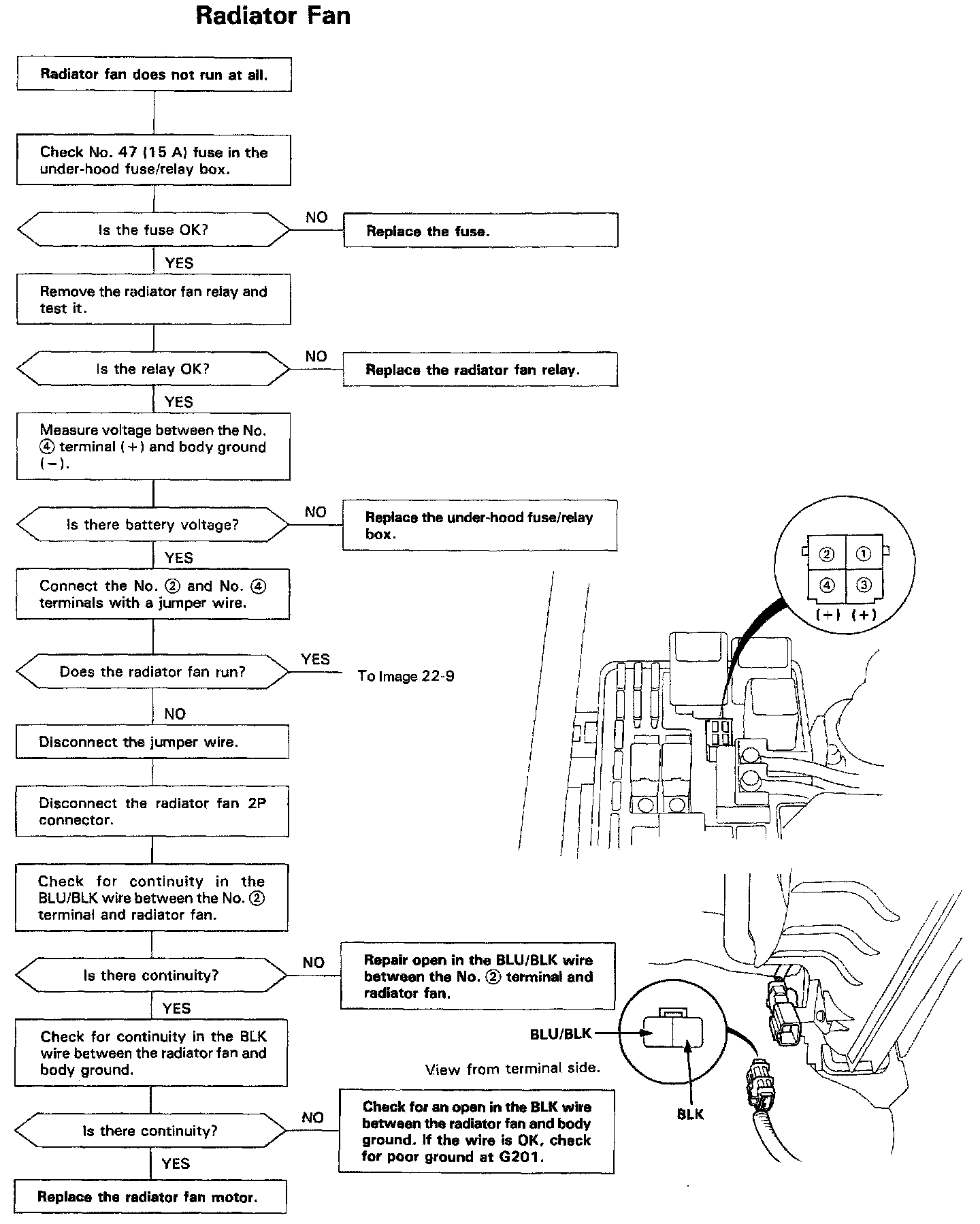

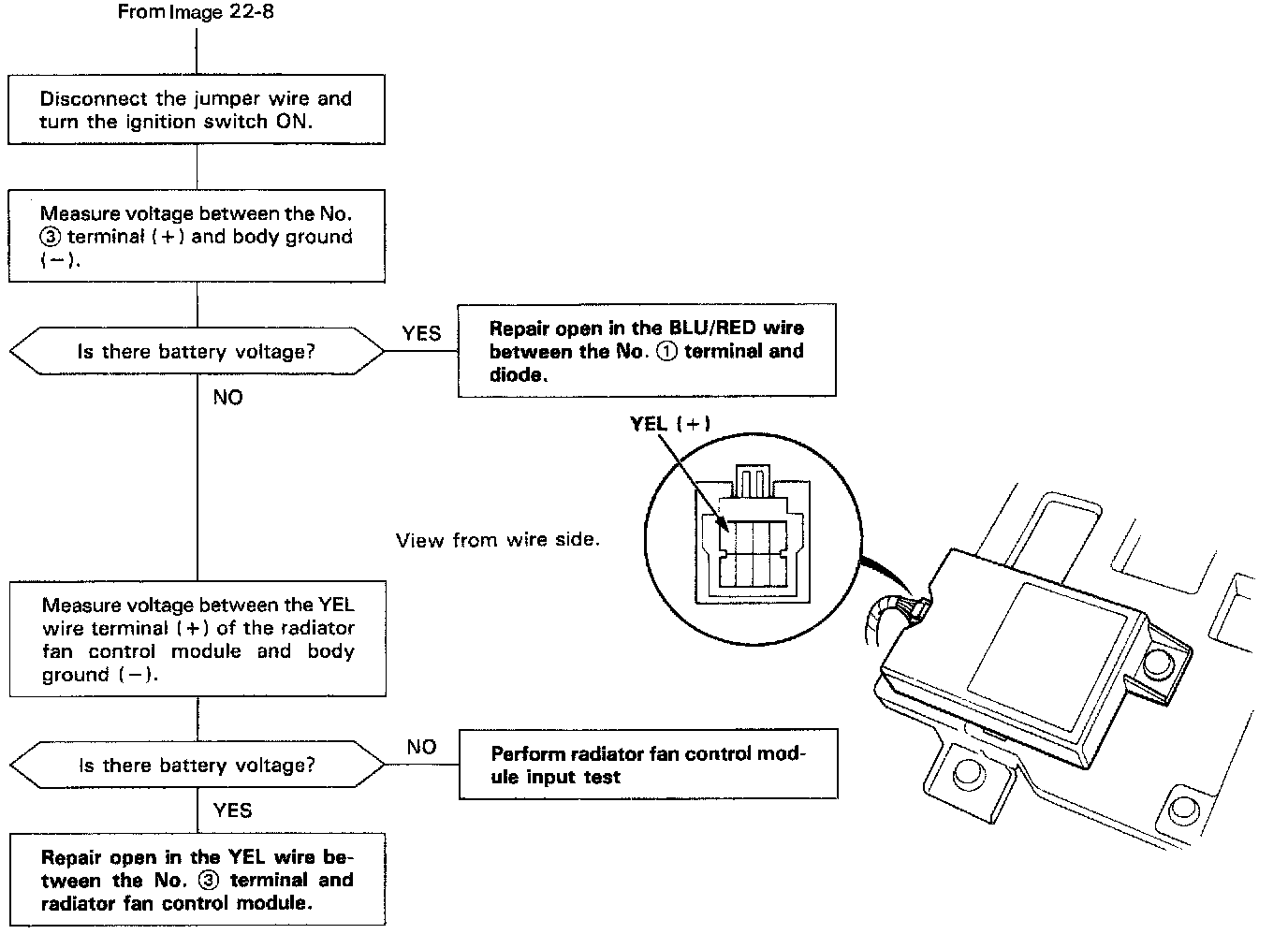

Radiator Fan Does Not Run At All
Image 22-10:
Image 22-11:

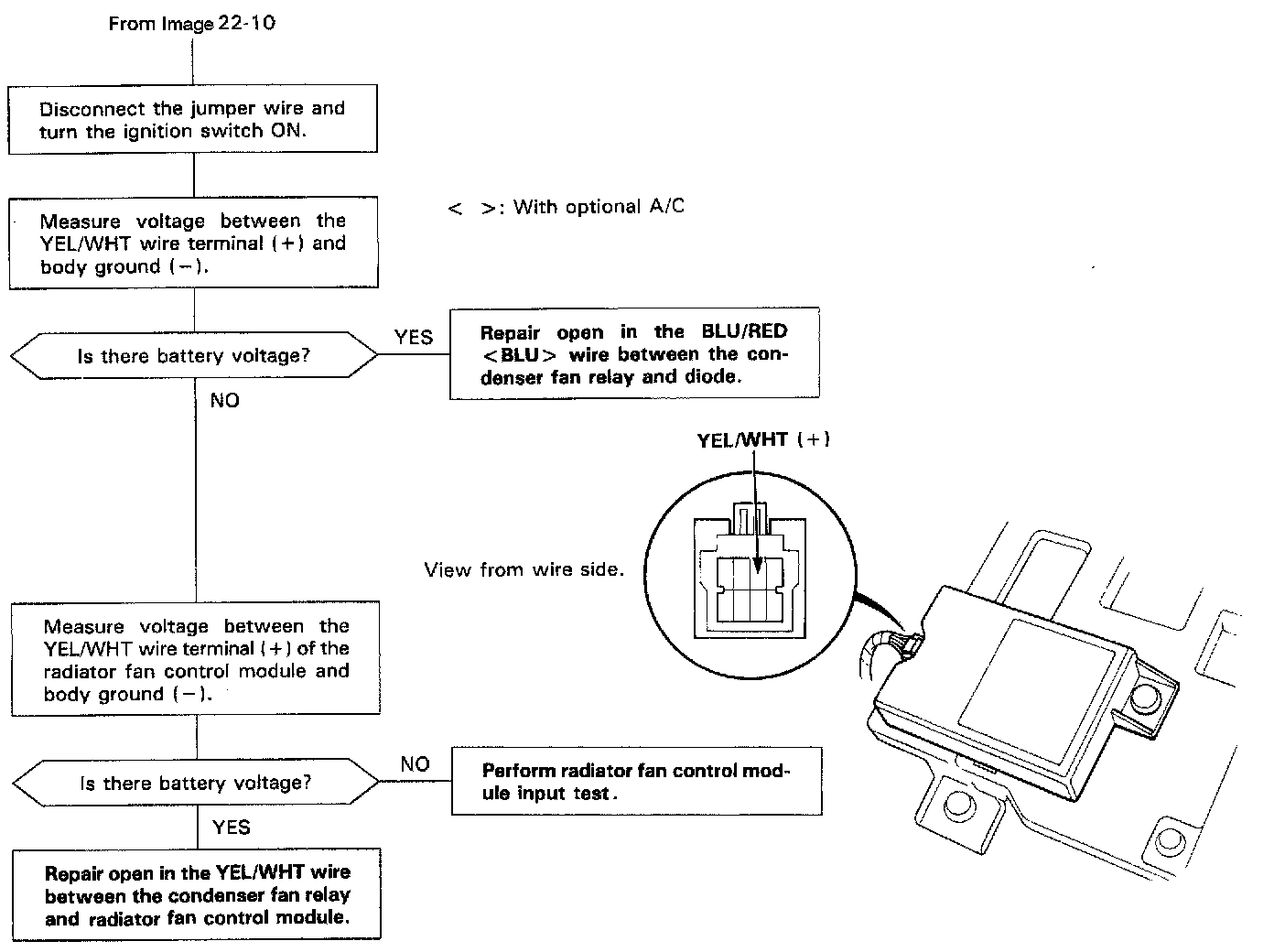

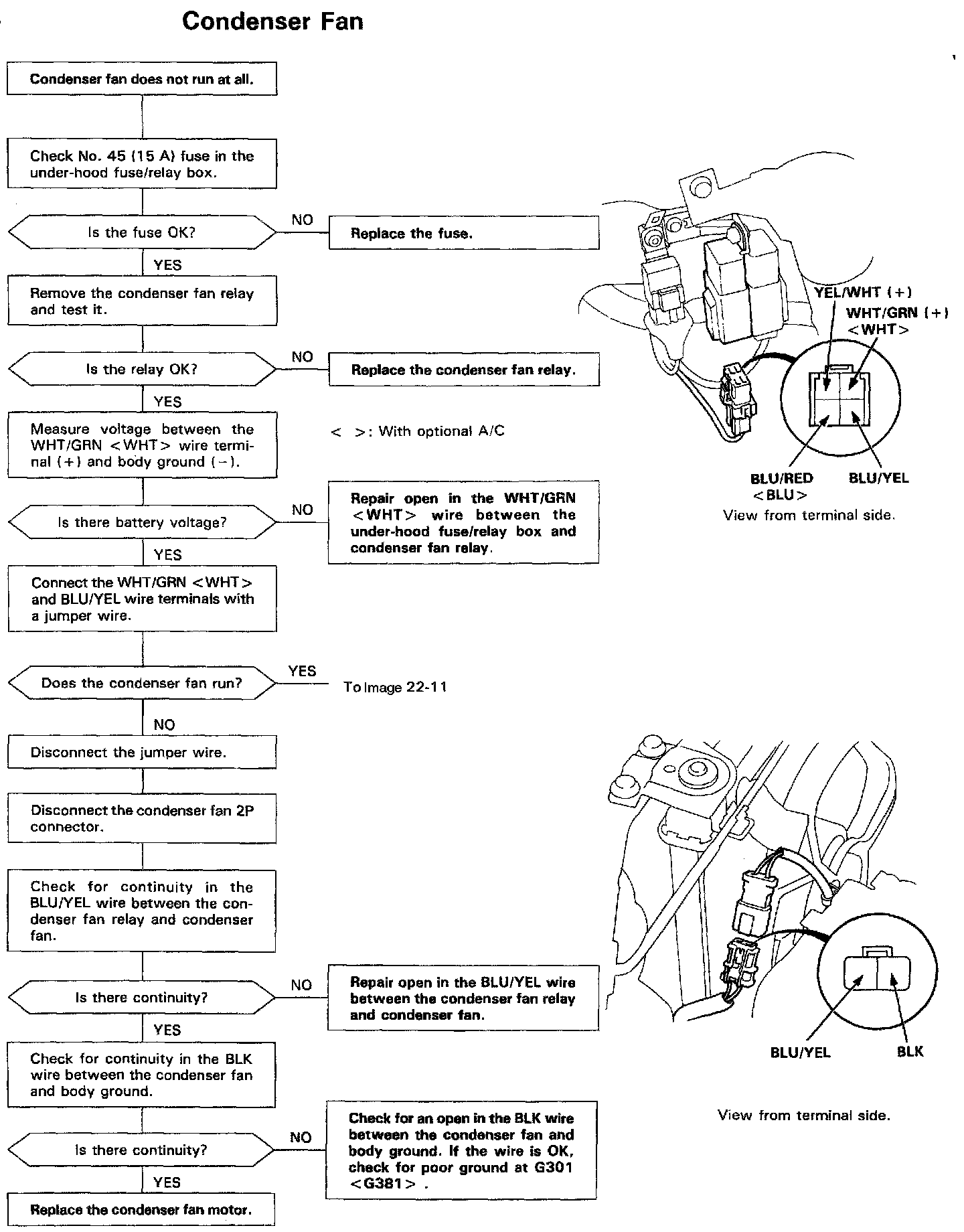

Condenser Fan Does Not Run At All
Image 22-12:

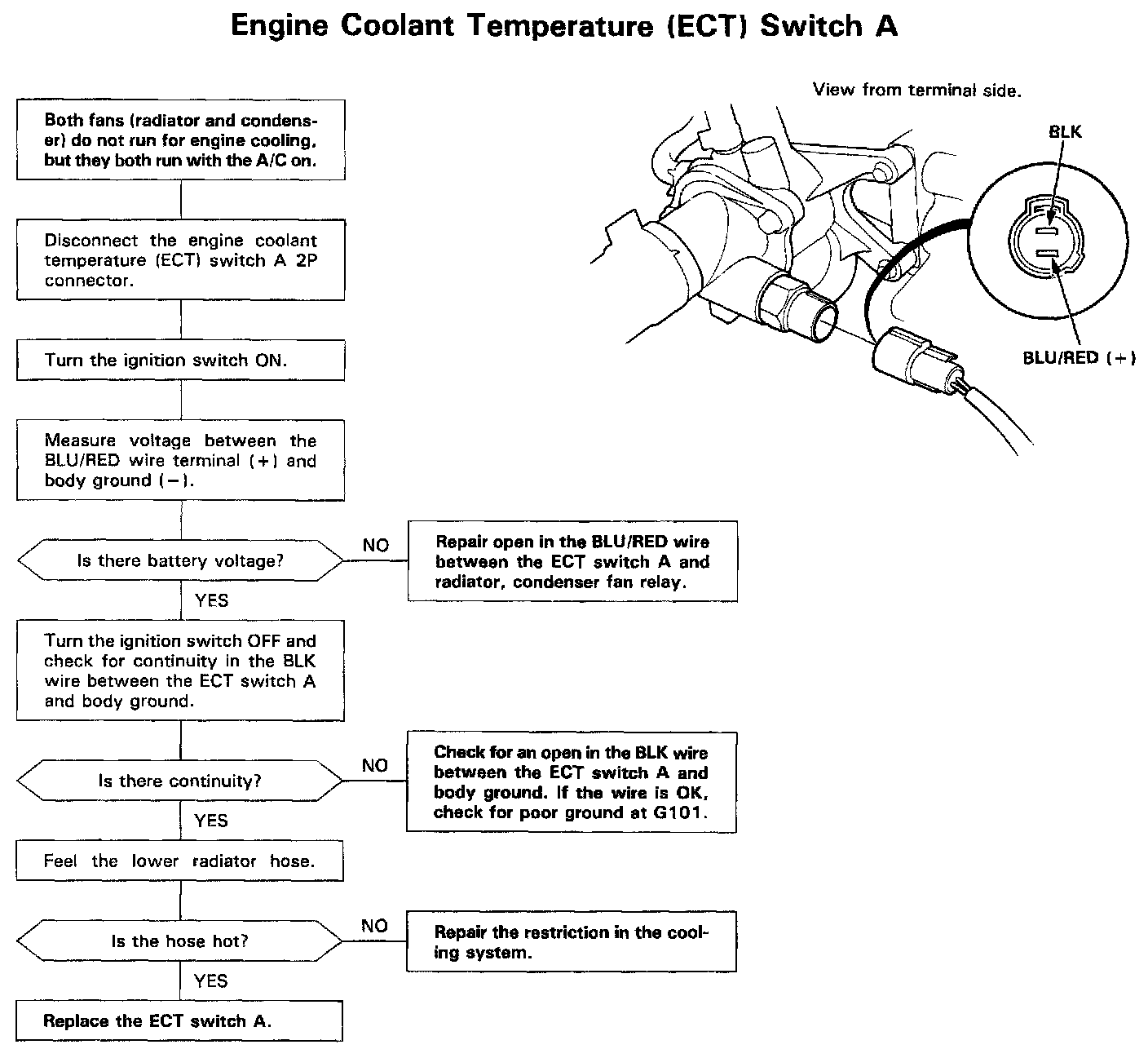

Engine Coolant Temperature (ECT) Switch A Test
Image 22-13:
Image 22-14:

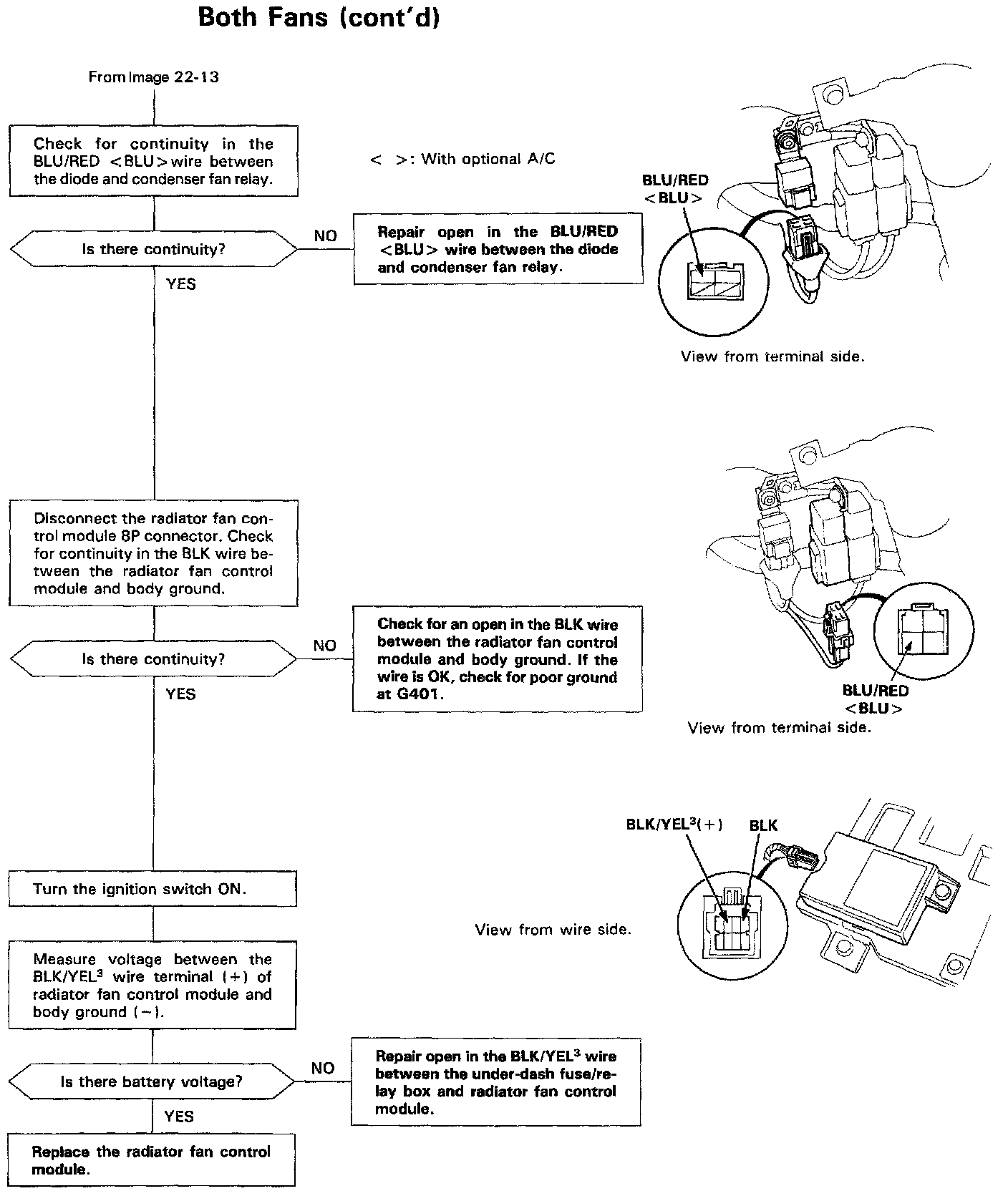

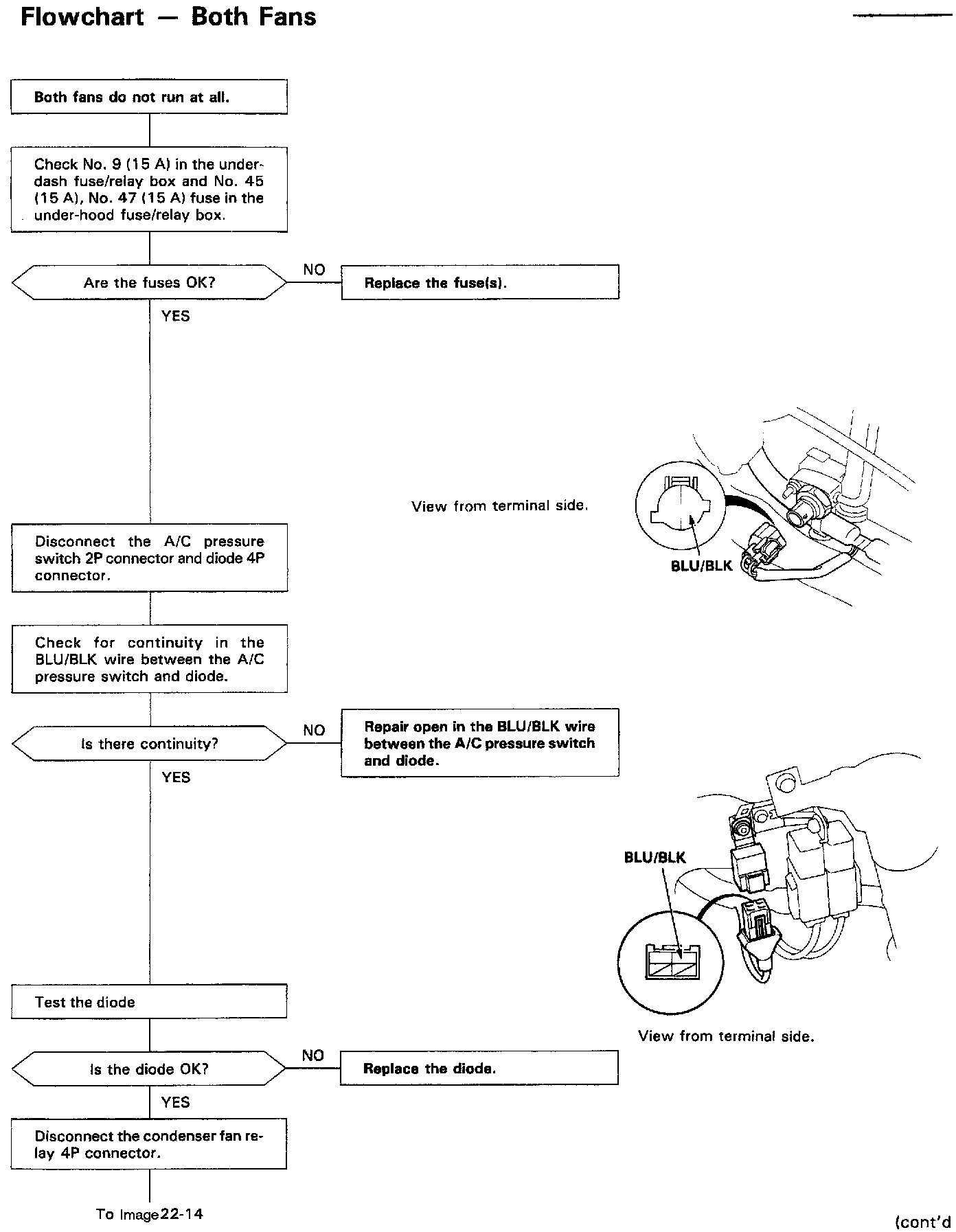

Radiator and Condenser Fans Do Not Run At All
