Fuel Pressure Release: Service and Repair

NOTE: Before disconnecting Fuel Pipes or Hoses, release pressure from the system by loosening the 6 mm Service Bolt on top of the Fuel Rail.

WARNING: Do not smoke while working on the Fuel system. Keep open flames or sparks away from your work area. Be sure to relieve fuel pressure while the Ignition Switch is off.

1. Disconnect the Battery Negative Cable from the Battery Negative Terminal.
2. Remove the Fuel Fill Cap.

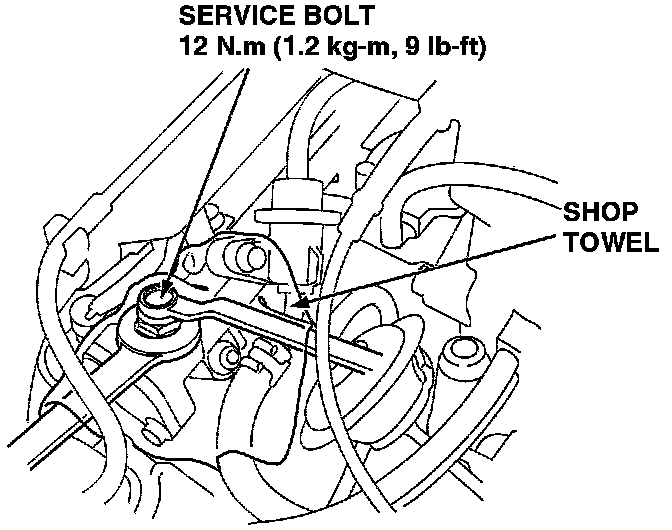

3. Use a Box End Wrench on the 6 mm Service Bolt at the Fuel Rail, while holding the Special Banjo Bolt with another wrench.





4. Place a rag or shop towel over the 6 mm Service Bolt.
5. Slowly loosen the 6 mm Service Bolt one complete turn.

NOTE: A Fuel Pressure Gauge can be attached at the 6 mm Service Bolt hole. Always replace the washer between the Service Bolt and the Special Banjo Bolt whenever the Service Bolt is loosened. Replace all washers whenever the bolts are removed.
