Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cooling Fan >> Radiator Cooling Fan Motor >> Diagrams >> Electrical Diagrams >> Without Air Conditioning

Without Air Conditioning

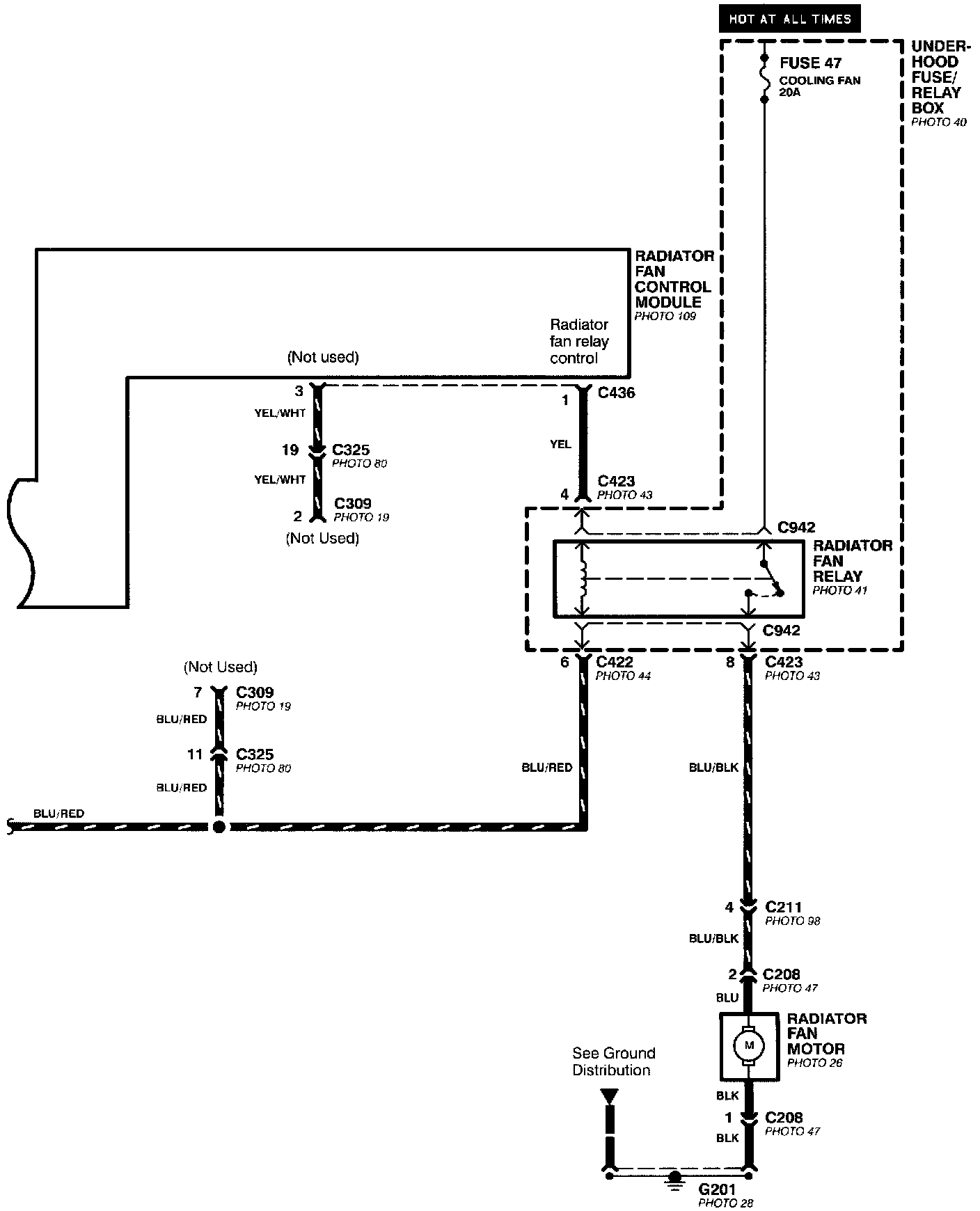

Fans- S Models without A/C:

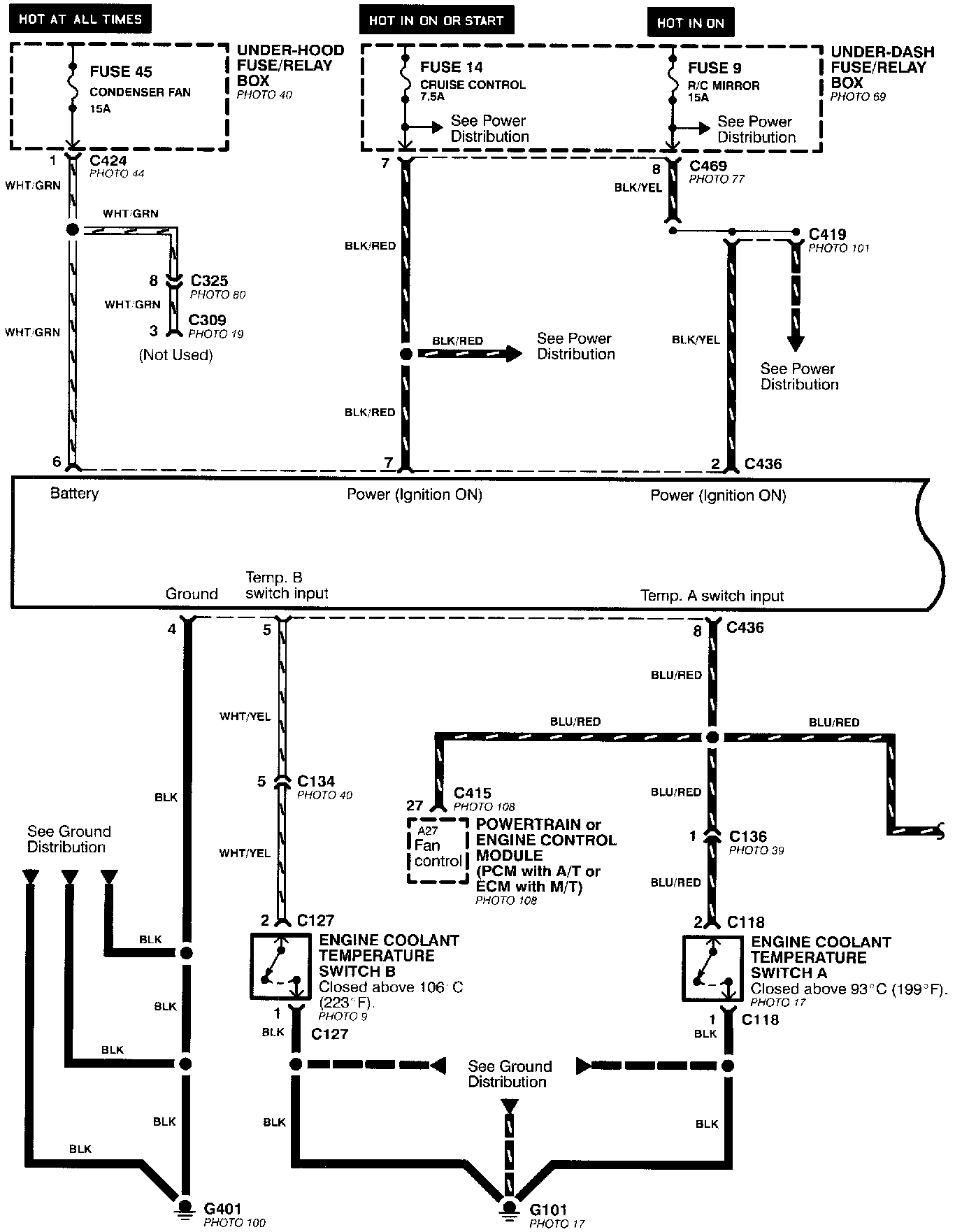

Fans- S Models without A/C:
