Roof Wire Harness
Roof Wire Harness

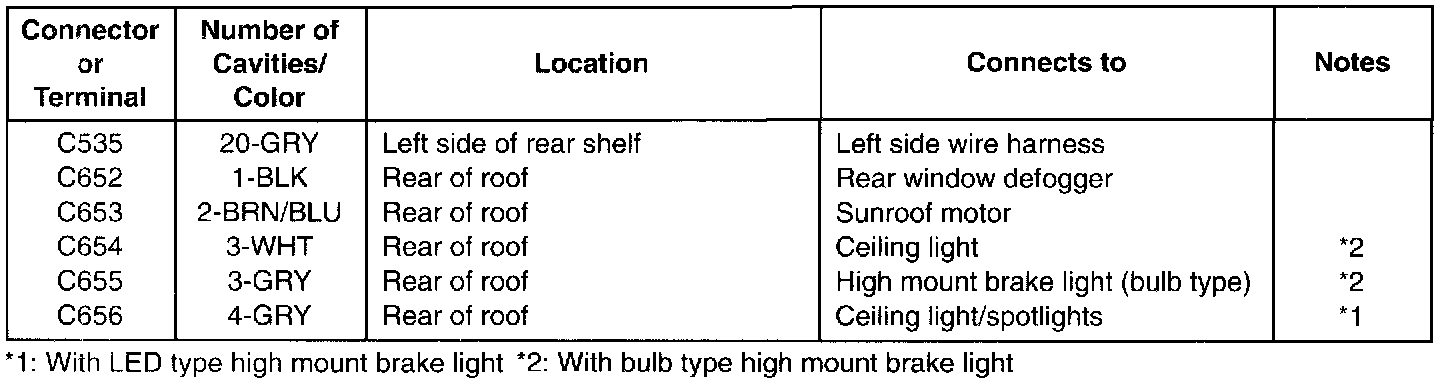

Roof Wire Harness:
Rear Wire Harness, Roof Wire Harness And Rear Window Defogger Ground Wire:
