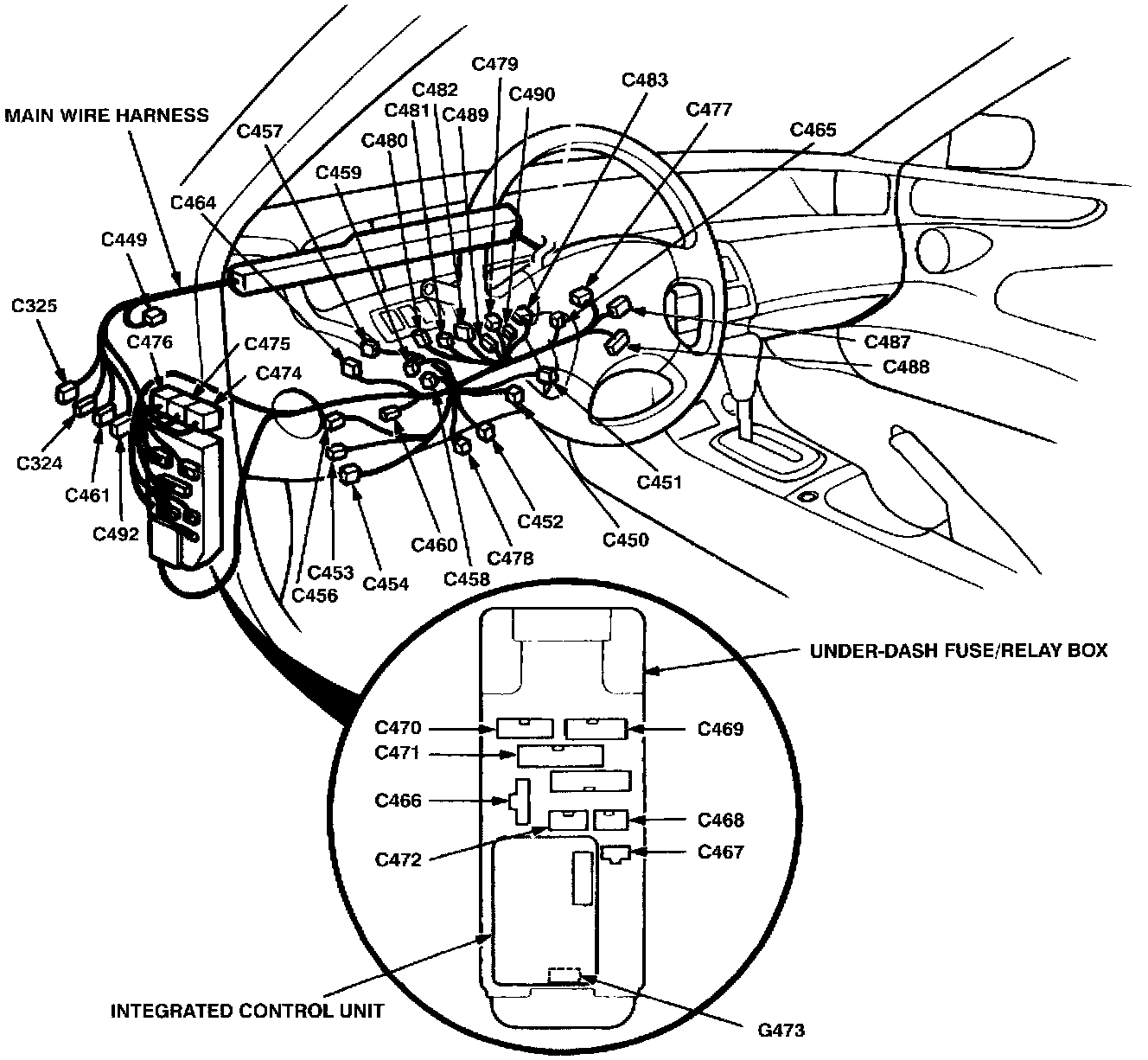

Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash

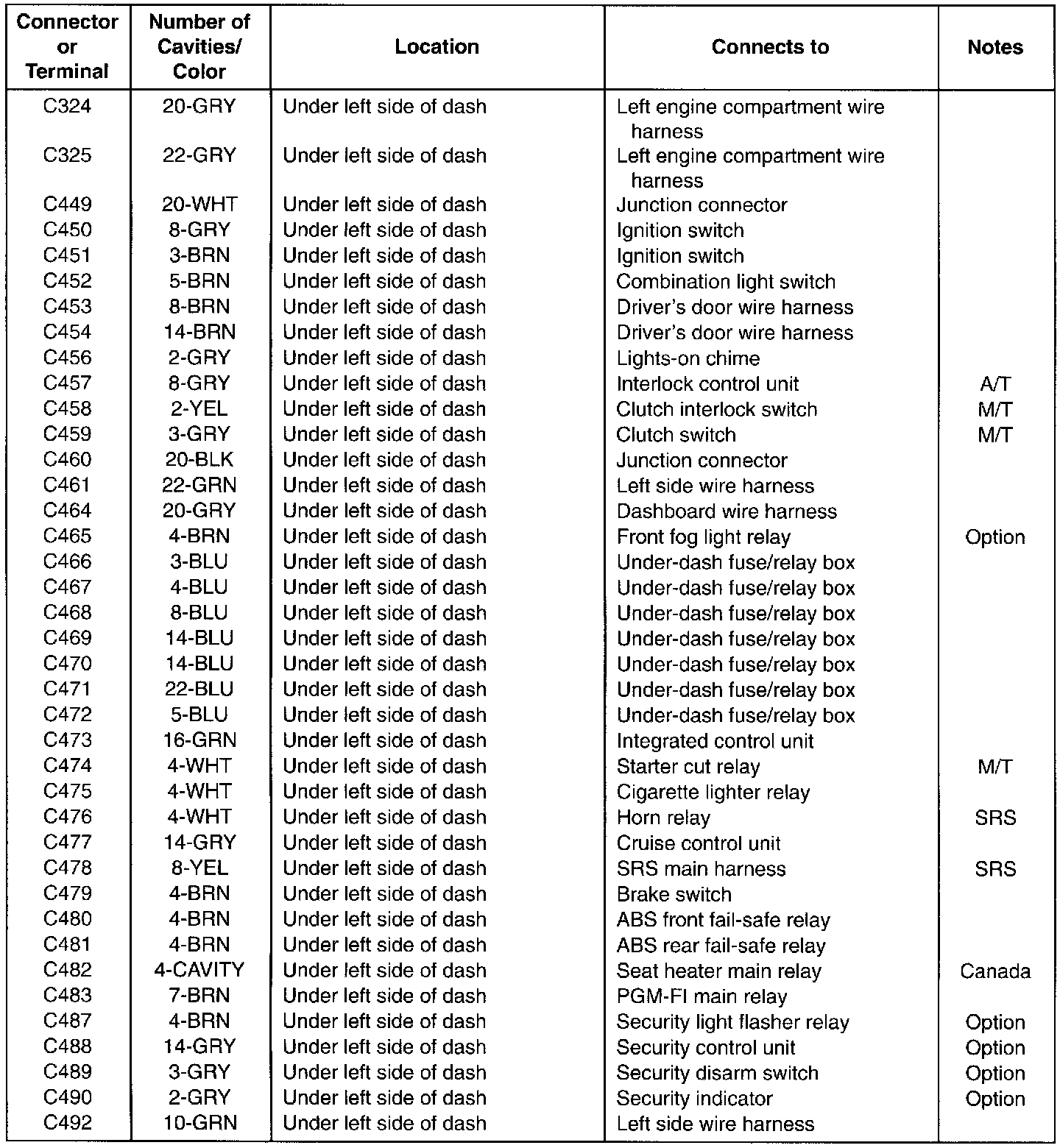

Main Wire Harness- Left Side Of Dash And Floor Branch:
Main Wire Harness- Left Side Of Dash And Floor Branch:
