Main Wire Harness (Right Side of Dash and Floor Branches)
Main Wire Harness (Right Side of Dash and Floor Branches)

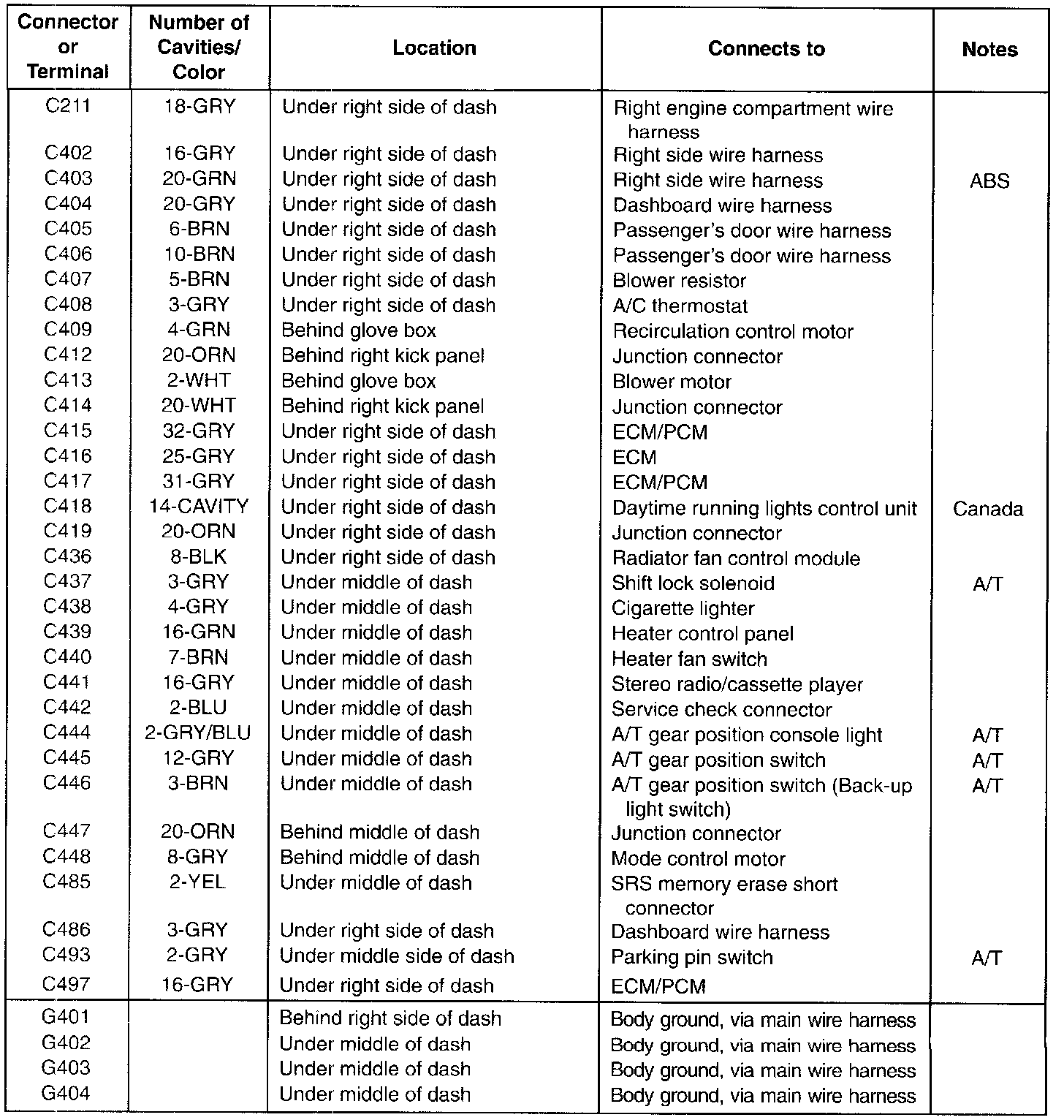

Main Wire Harness- Right Side Of Dash And Floor Branch:

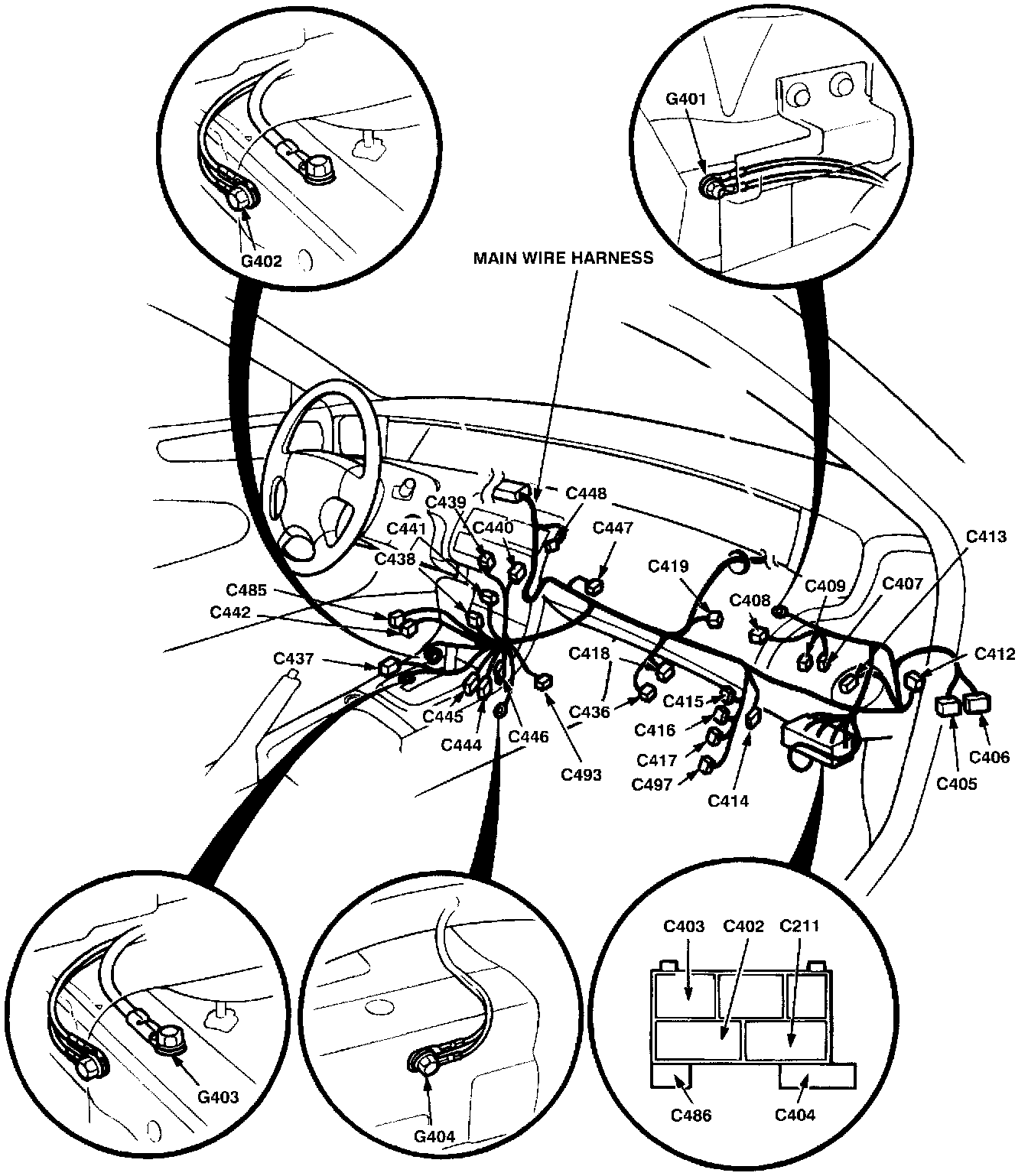

Main Wire Harness- Right Side Of Dash And Floor Branch:
