Tail Lamp
Tail Lamp
Front Parking, License, Side Marker Lights, And Taillights:

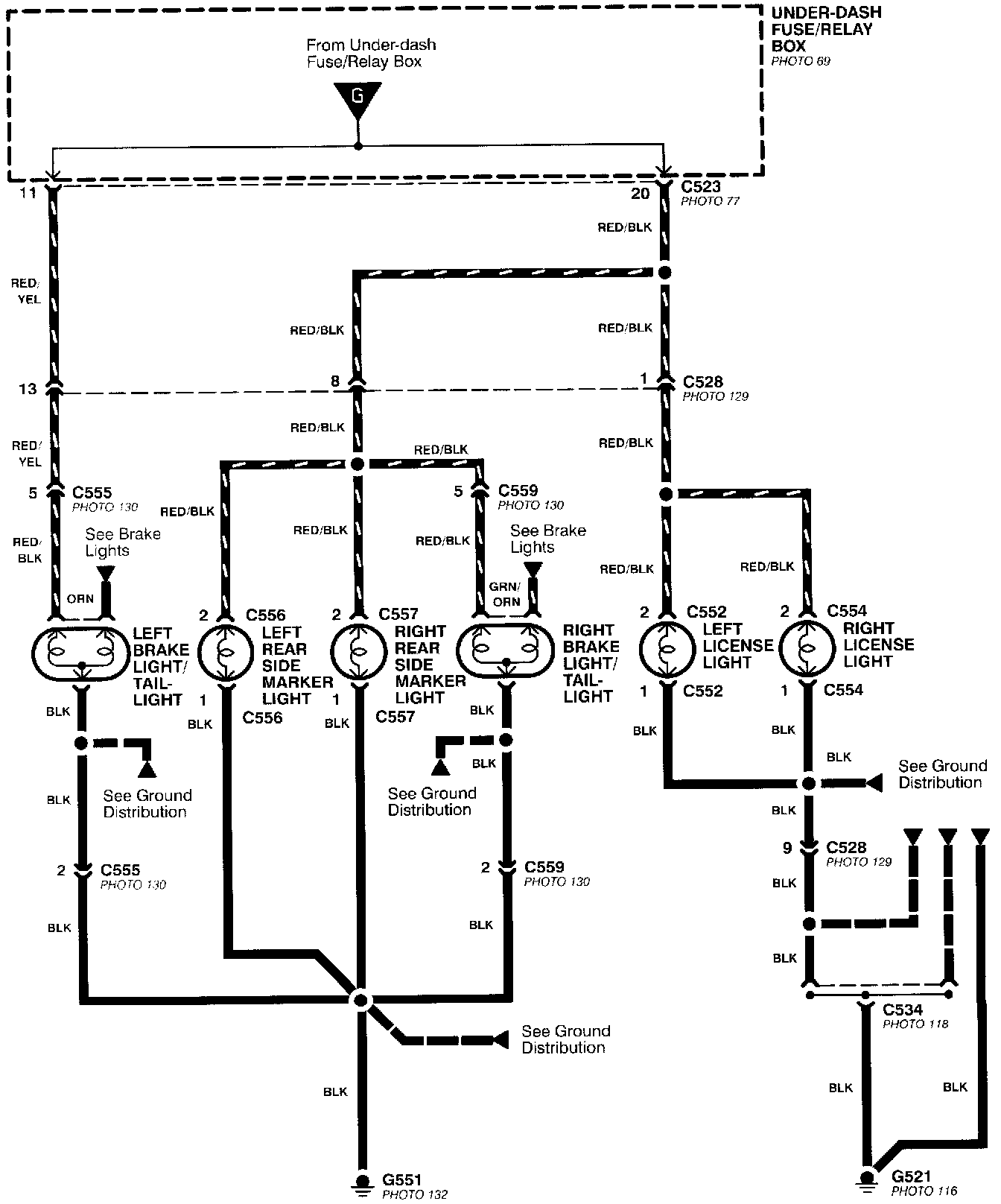

Front Parking, License, Side Marker Lights, And Taillights (Part 2 Of 2):
