Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Indicators
>>
In the Sub Gauge Assembly
In the Sub Gauge Assembly

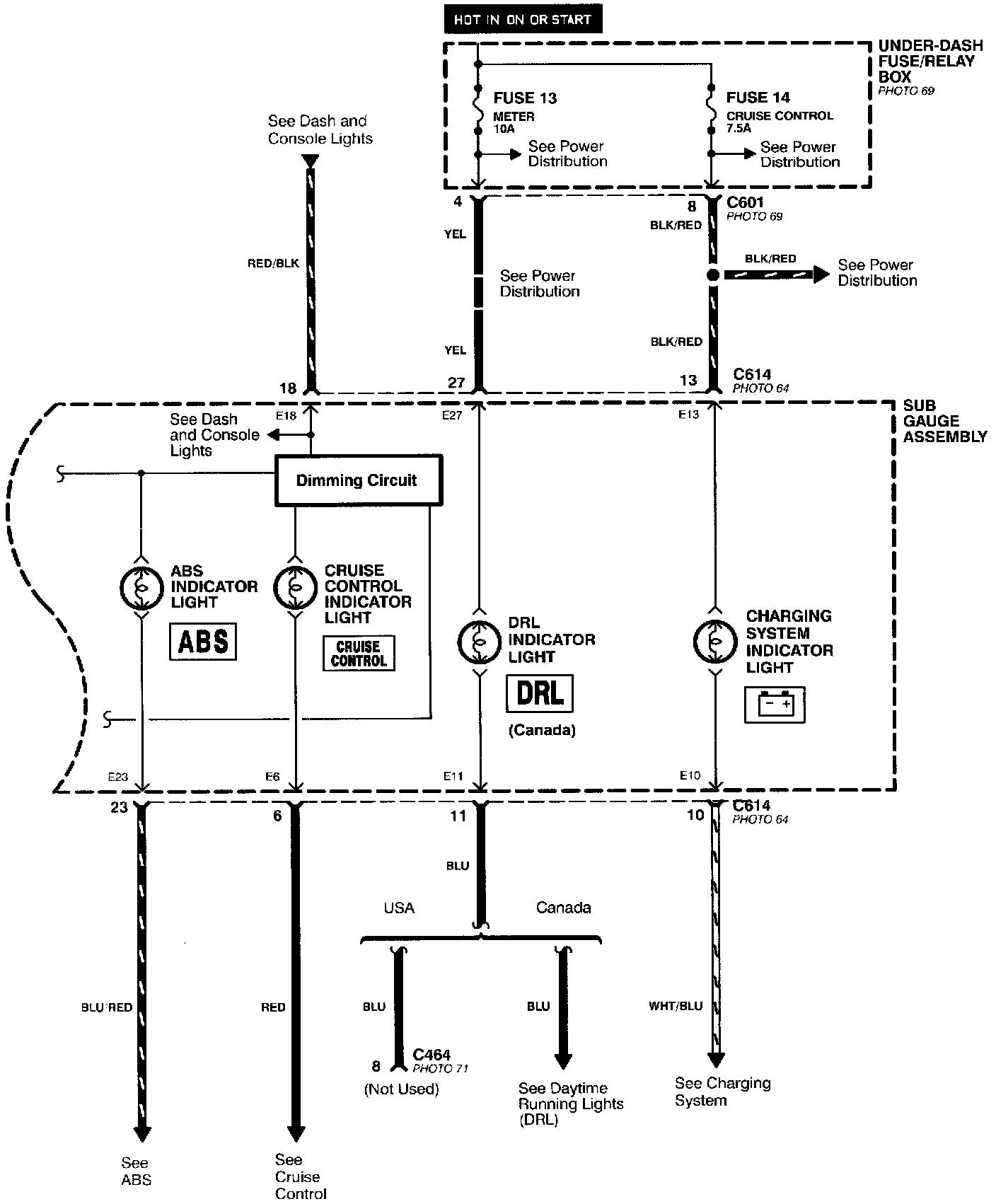

Indicators- In The Sub Gauge Assembly (Part 1 Of 2):

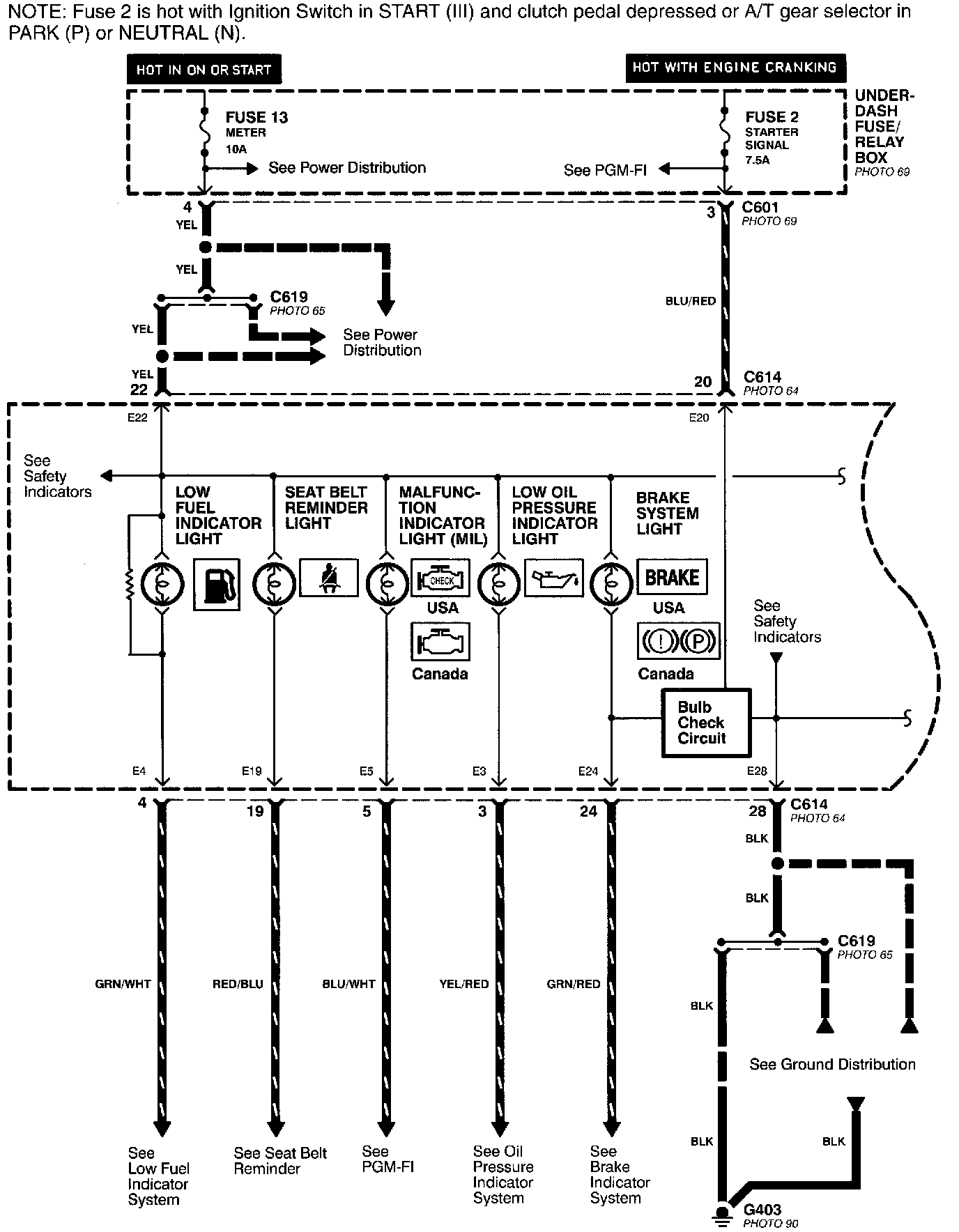

Indicators- In The Sub Gauge Assembly (Part 2 Of 2):
