Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Indicators >> In the Main Gauge Assembly >> With Luminescent Gauges

With Luminescent Gauges

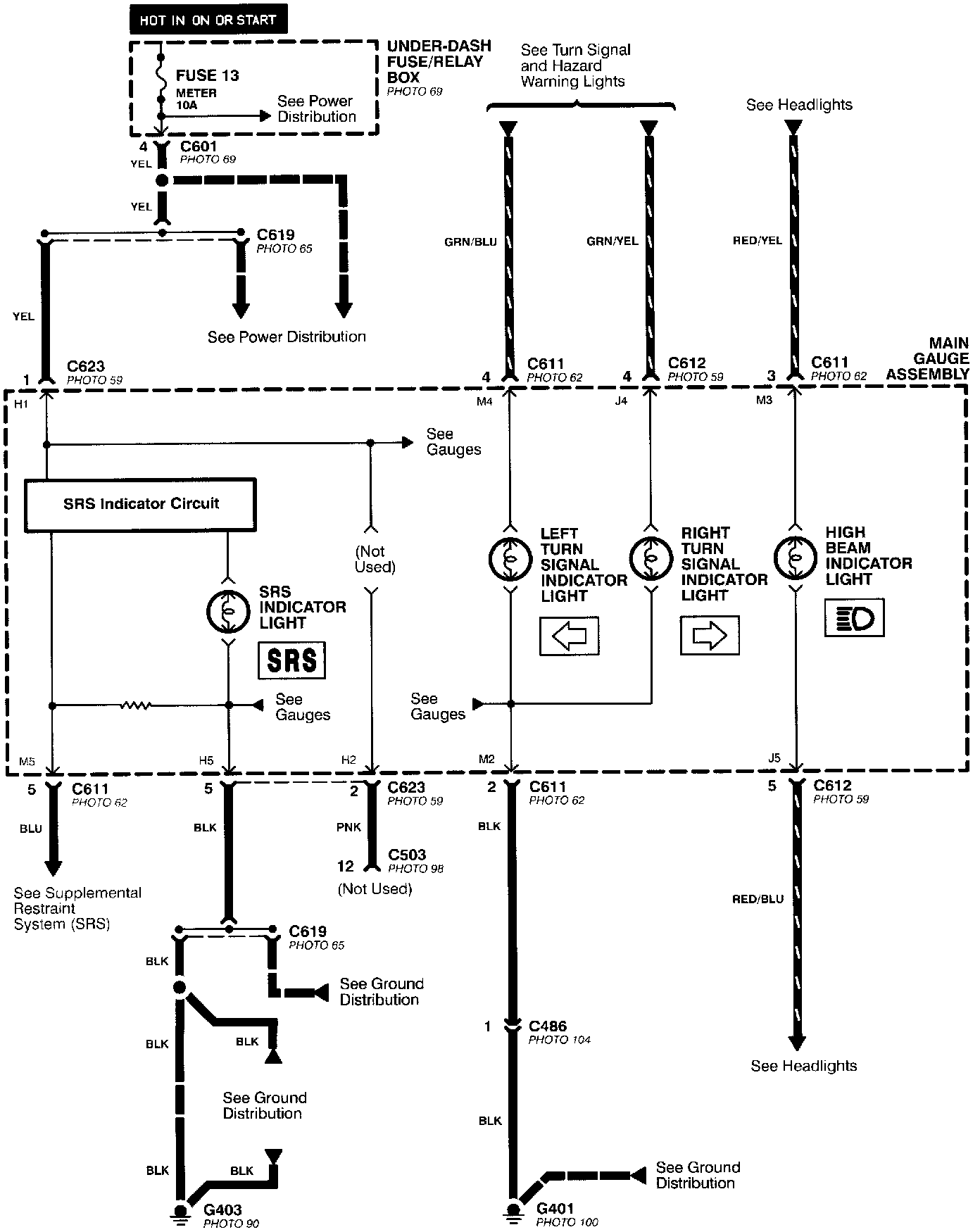

Indicators- In The Main Gauge Assembly (With Luminescent Gauges):
