Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Gauges
>>
In the Main Gauge Assembly
>>
With Luminescent Gauges
With Luminescent Gauges

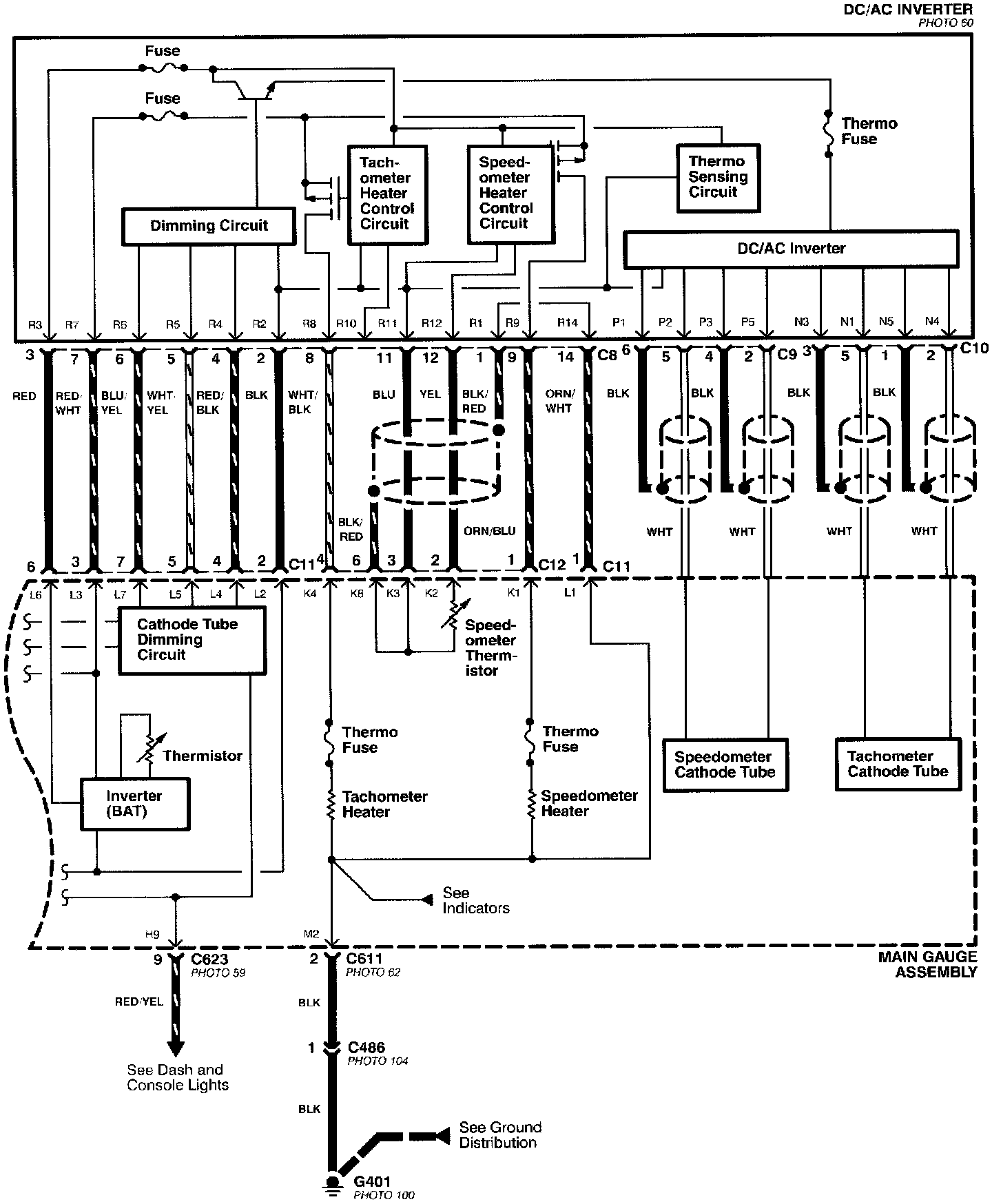

Gauges- In The Main Gauge Assembly (With Luminescent Gauges) (Part 1 Of 2):

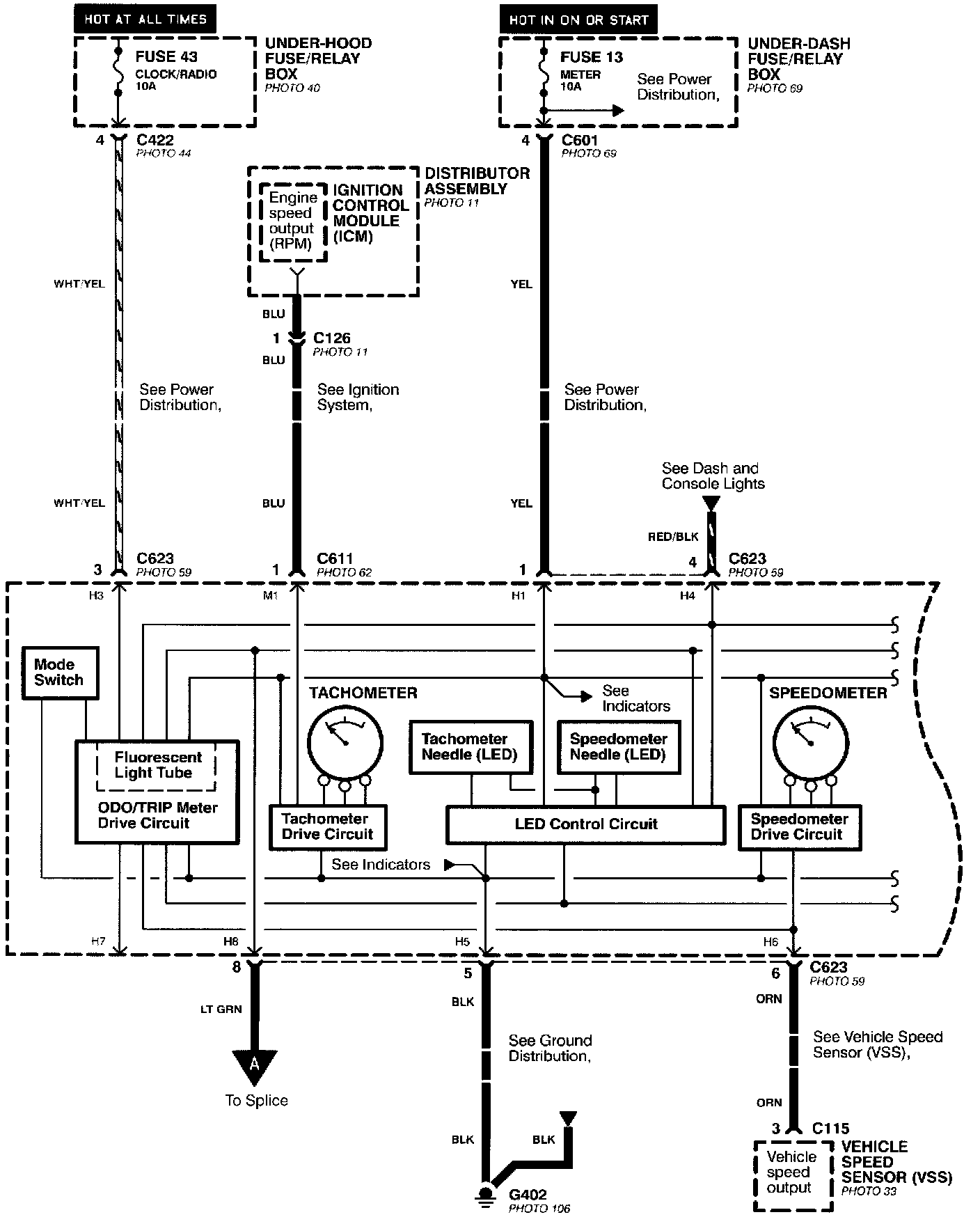

Gauges- In The Main Gauge Assembly (With Luminescent Gauges) (Part 2 Of 2):
