Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Fans and Compressor Controls >> Fan Controls With A/C

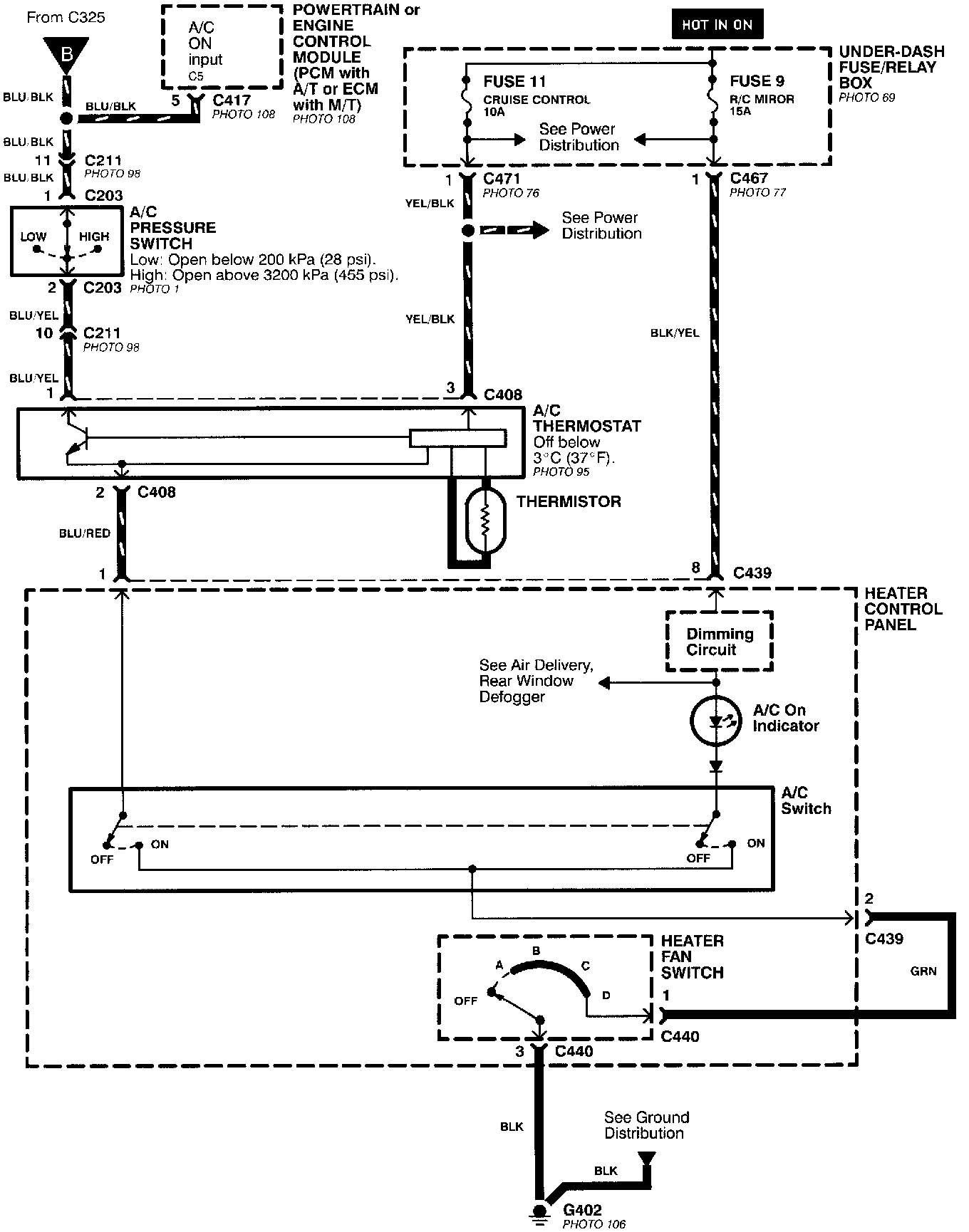

Fan Controls With A/C

Fans- With A/C:
