Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Air Delivery

Air Delivery

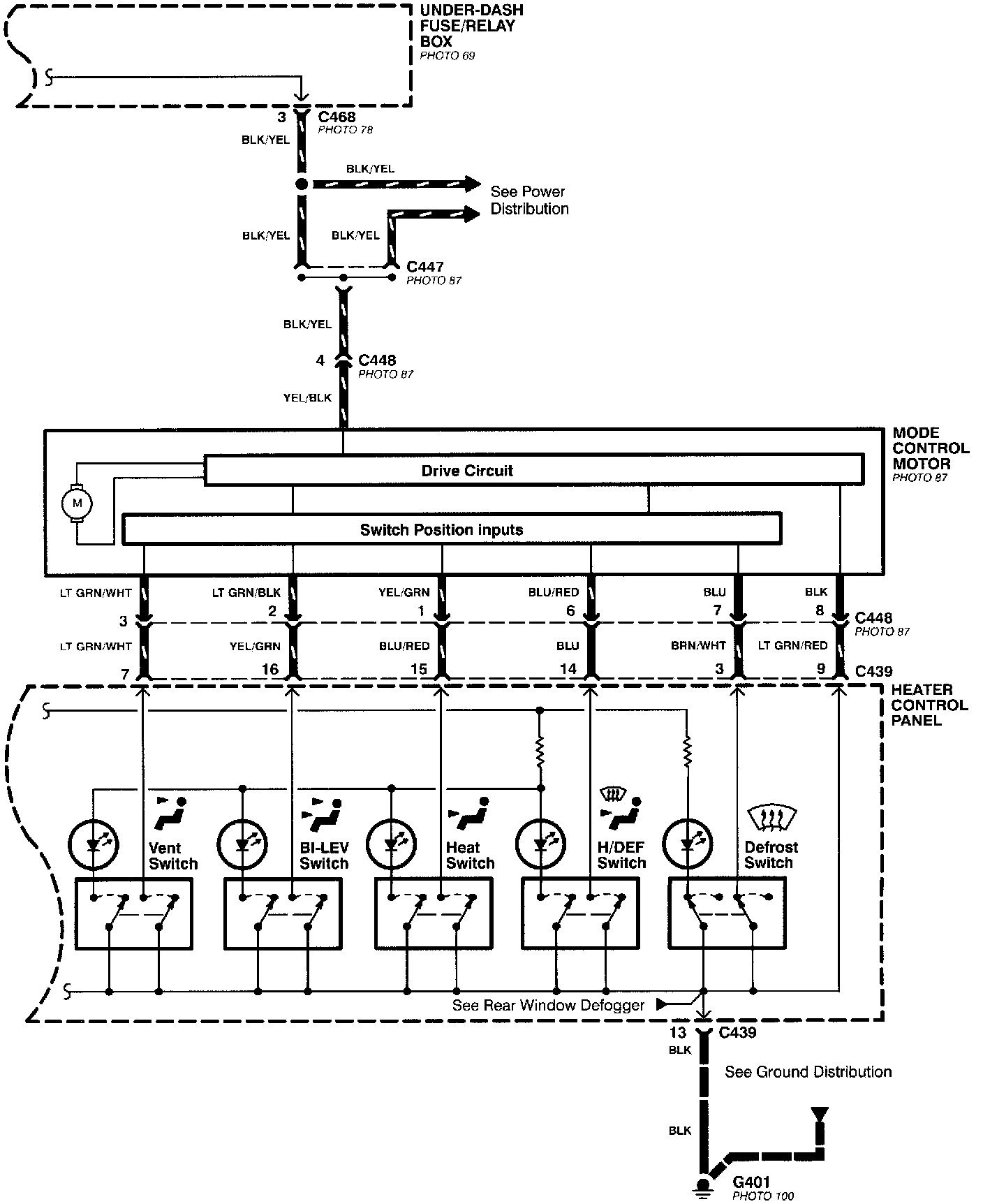

Air Delivery (Part 1 Of 2):

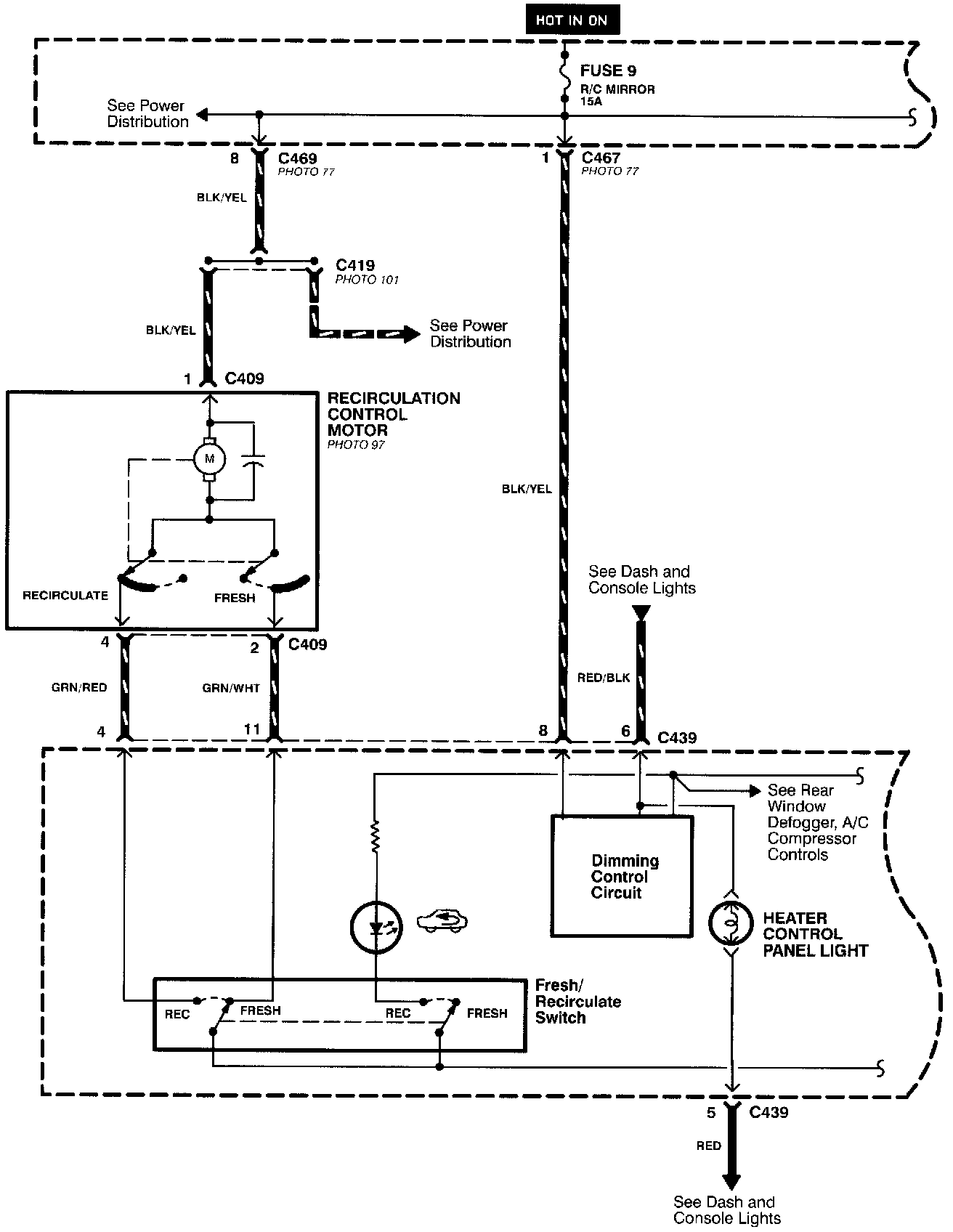

Air Delivery (Part 2 Of 2):
