Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Compressor Controls >> S Model Only

S Model Only

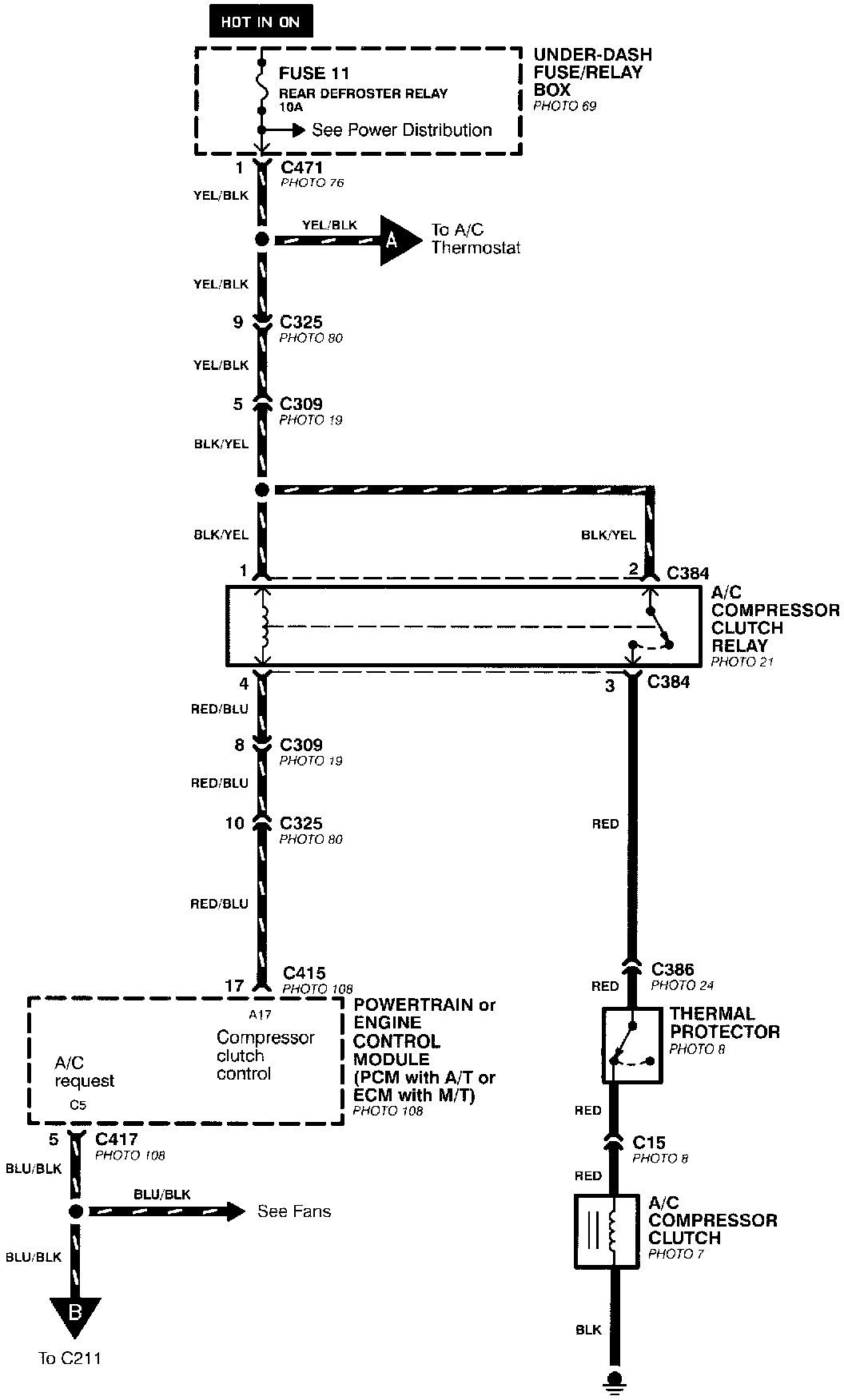

A/C Compressor Controls- S Only:

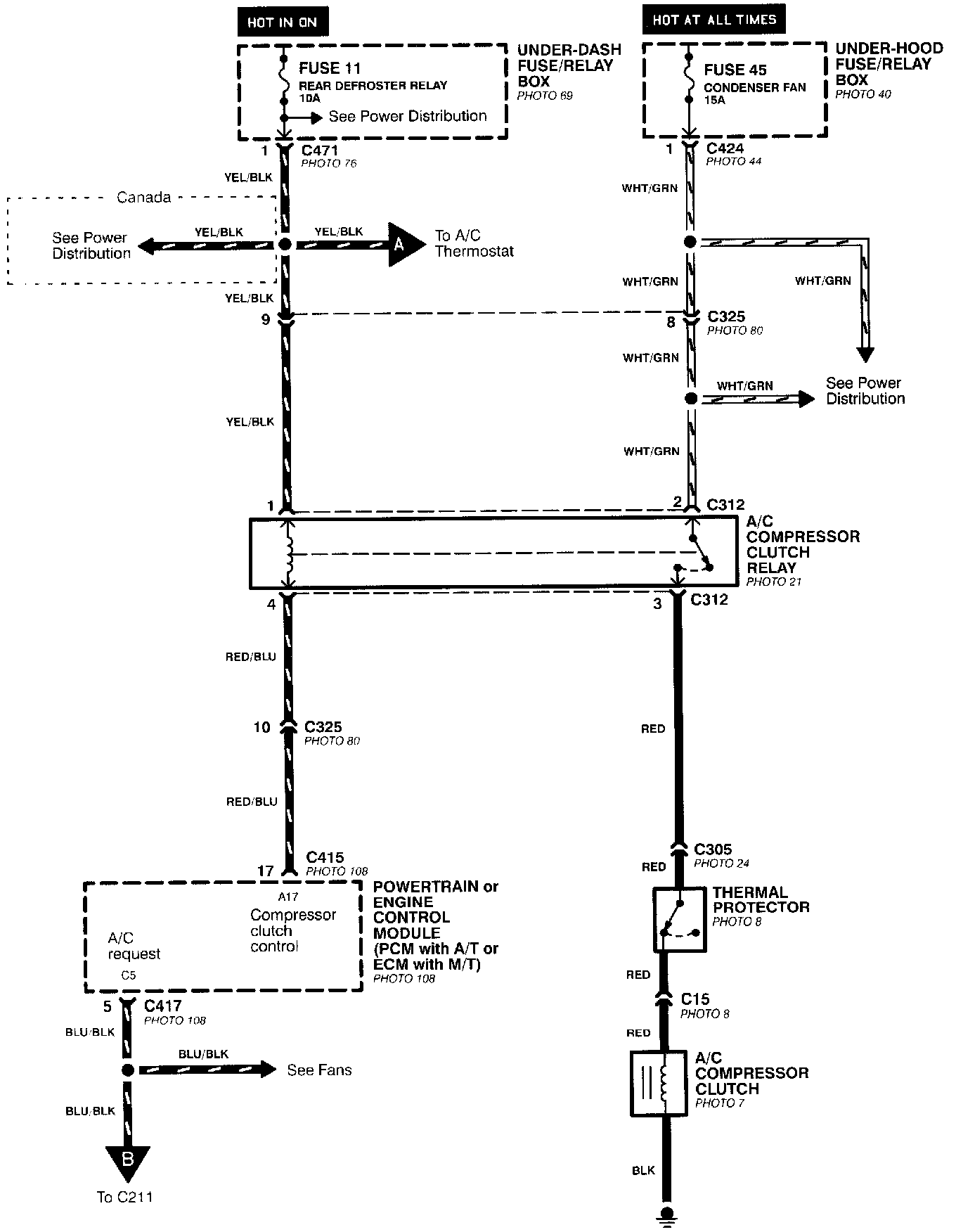

A/C Compressor Controls- Si, SR, VTEC, SR-V:

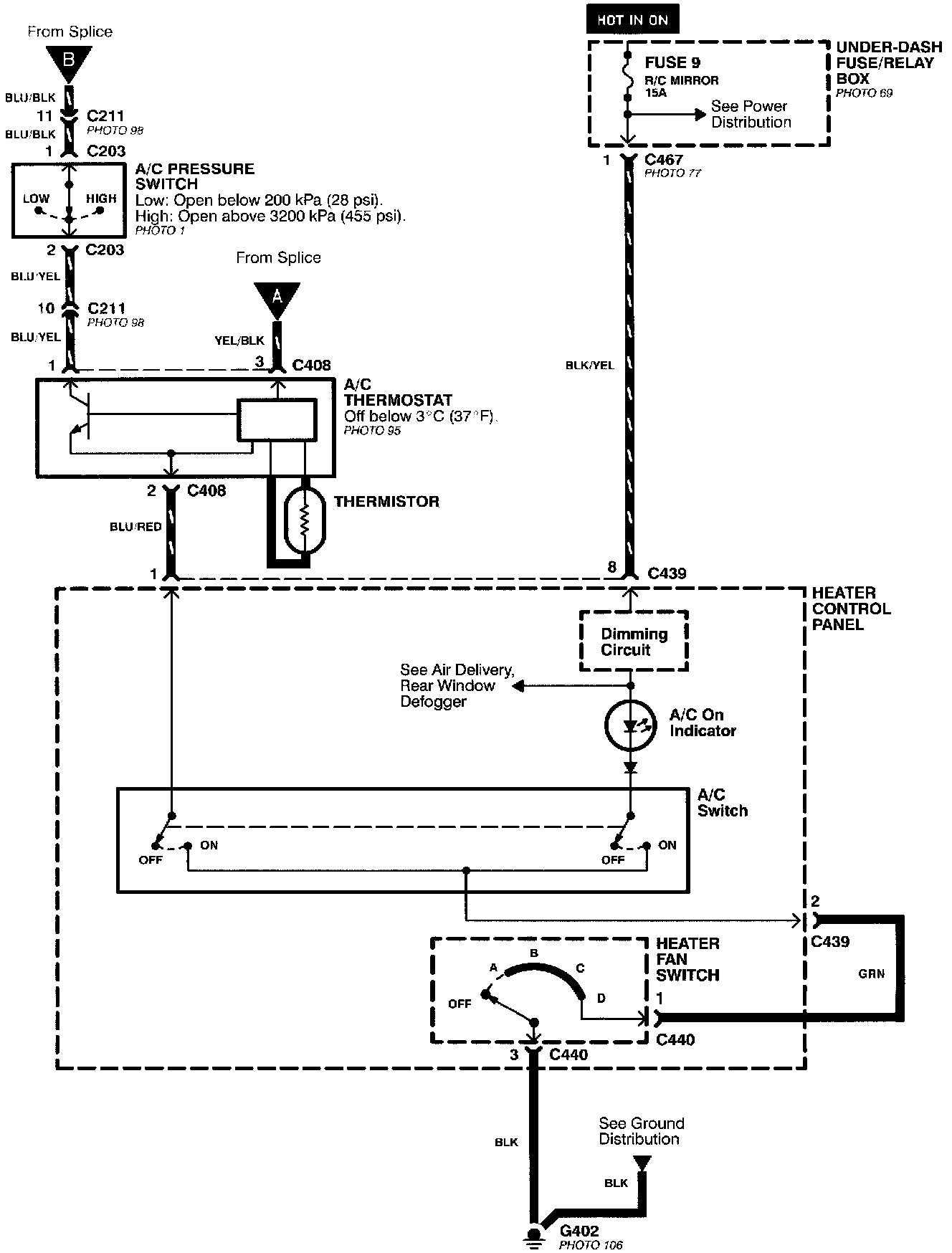

A/C Compressor Controls- S, Si, SR, VTEC, SR-V:

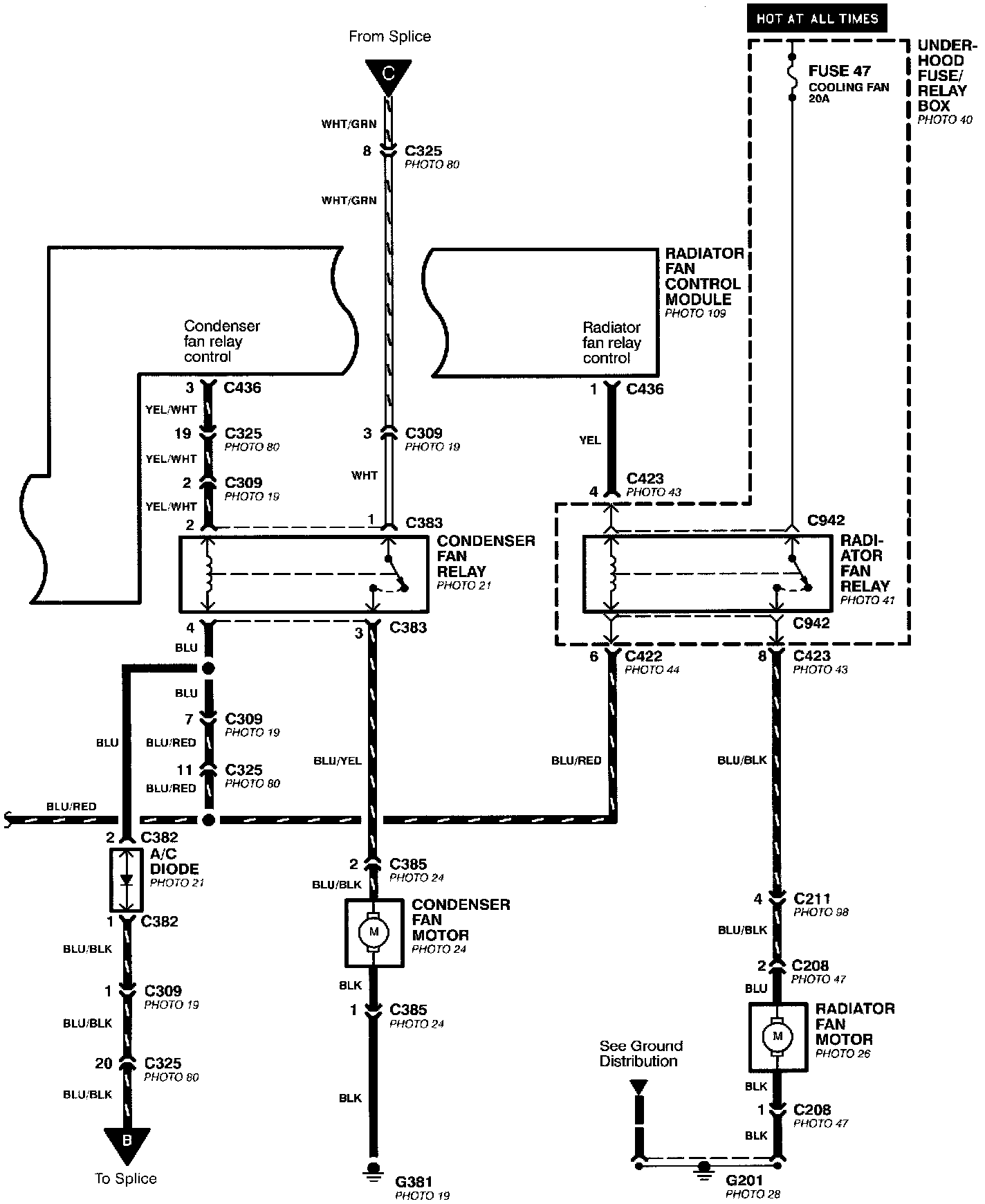

Fans- S Models with A/C:

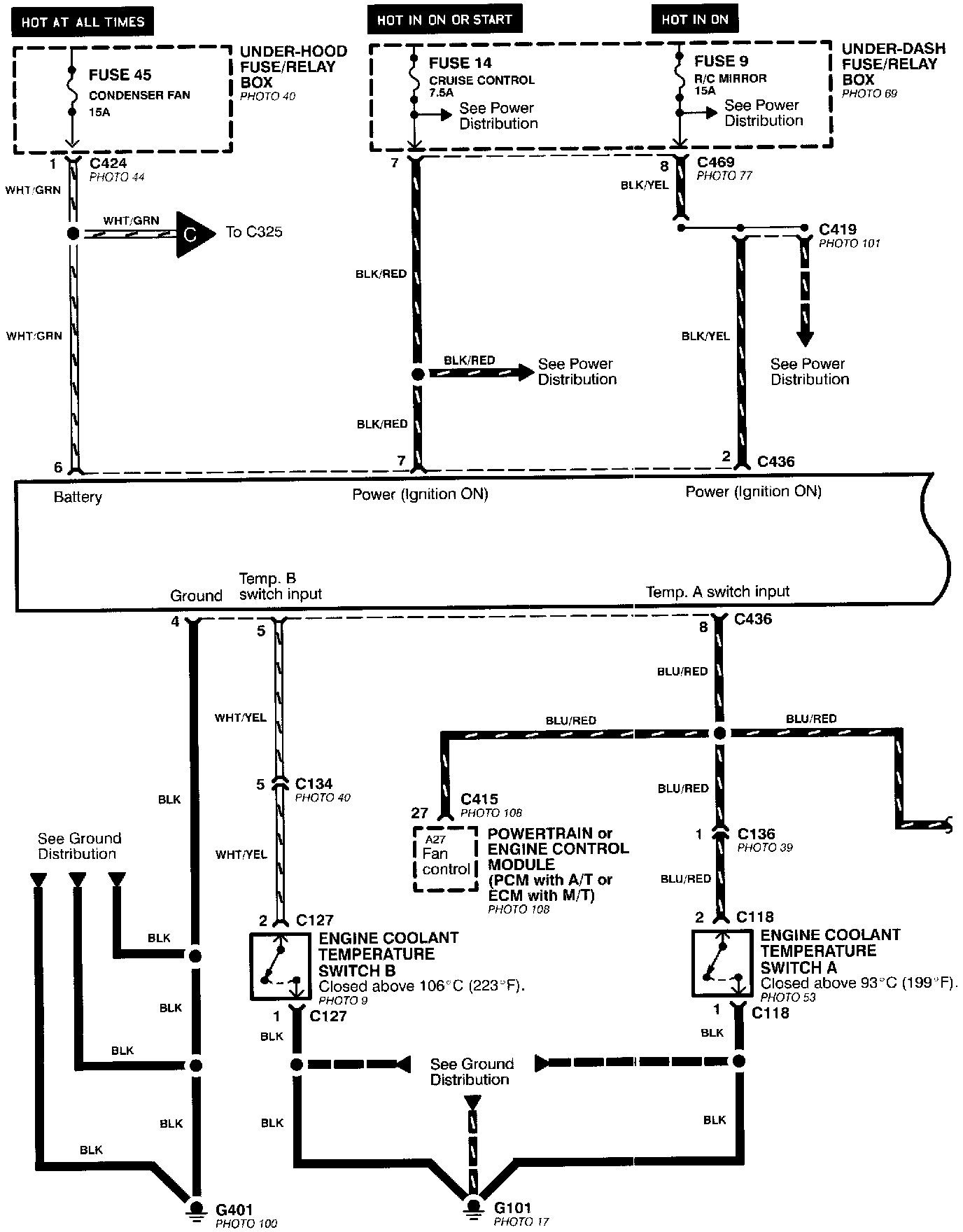

Fans- S Models with A/C:

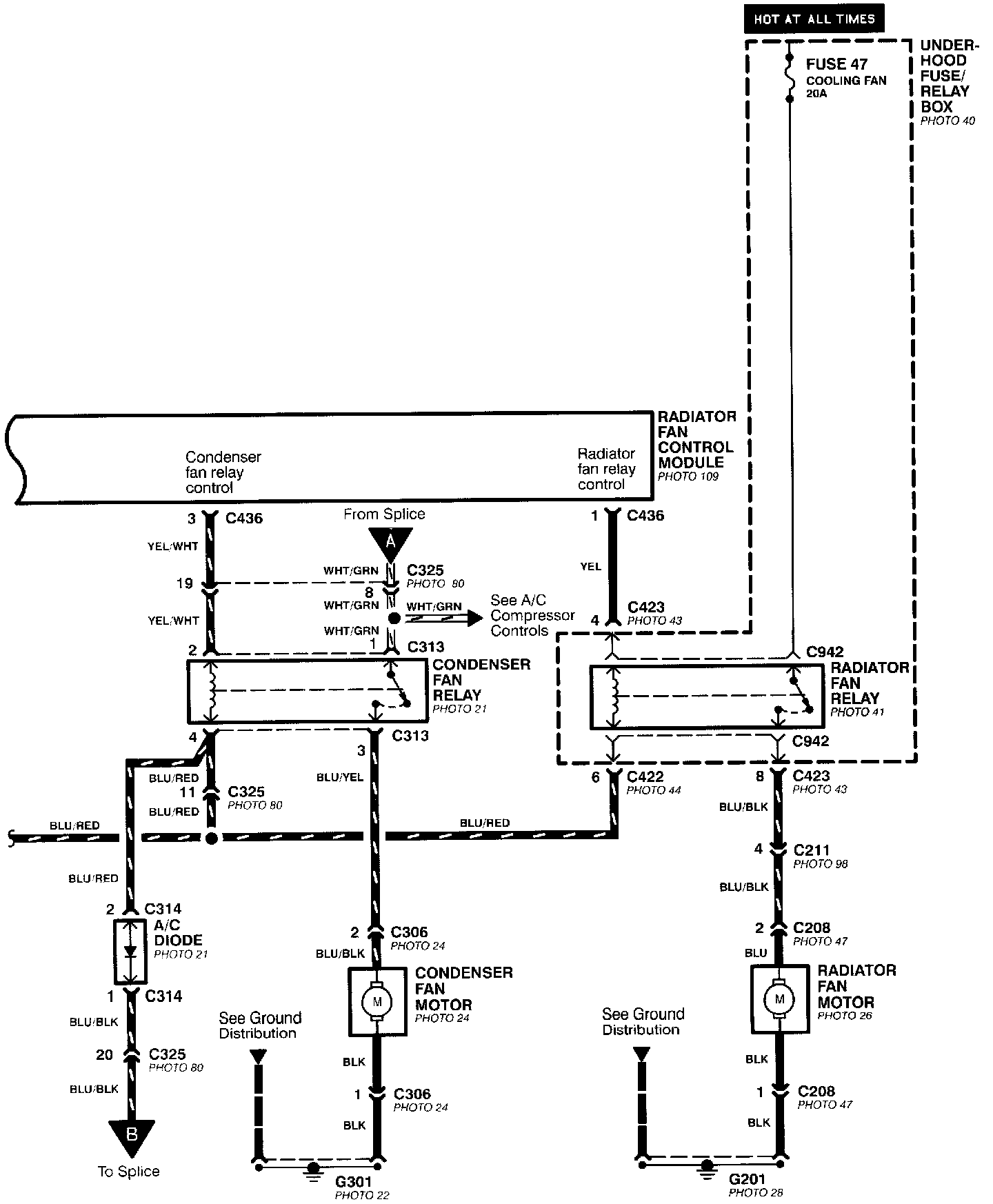

Fans- Si, SR, VTEC, SR-V (Part 1 Of 2):

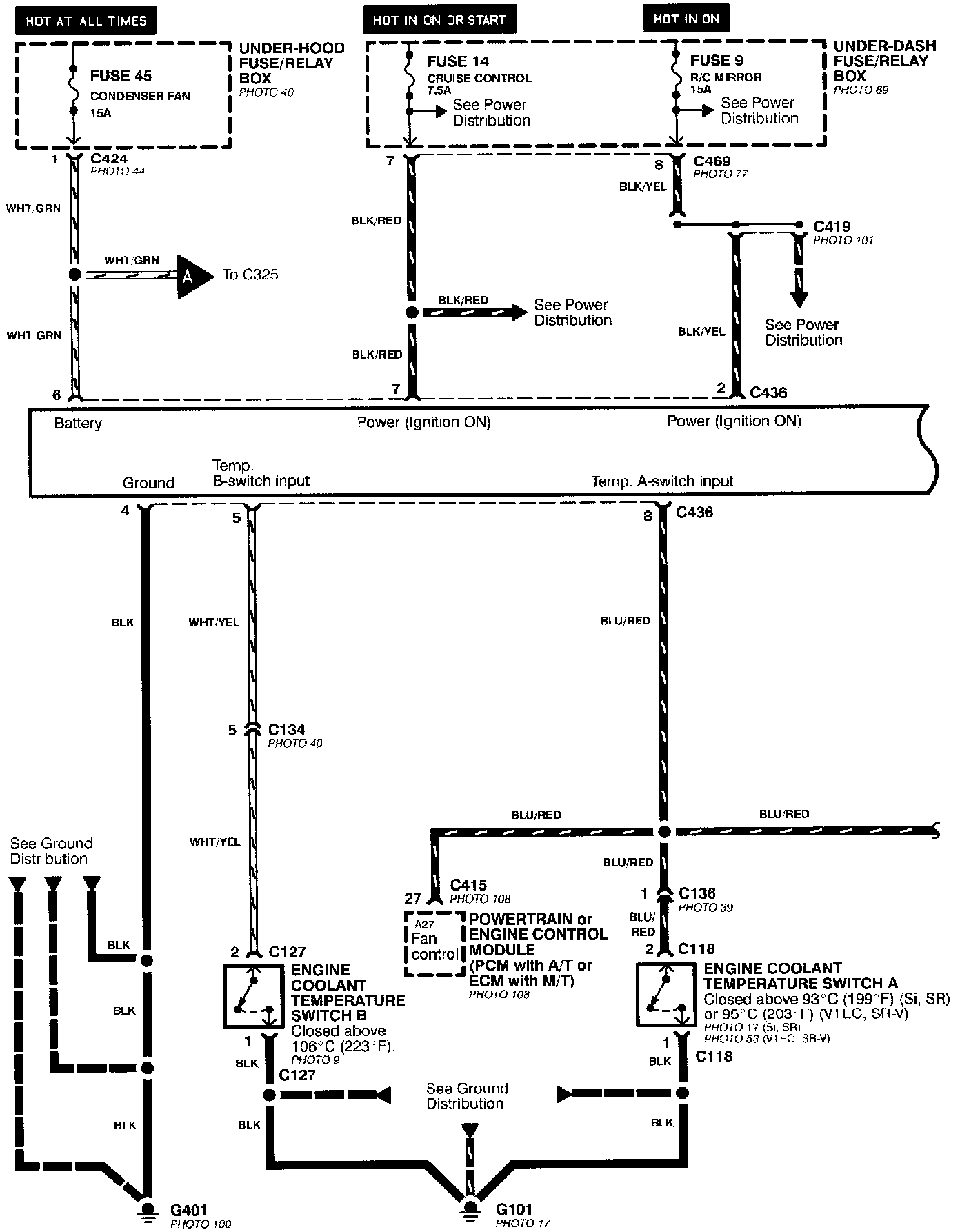

Fans- Si, SR, VTEC, SR-V (Part 2 Of 2):
