Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram >> Canada

Canada

Headlights- Canada (Part 1 Of 2):

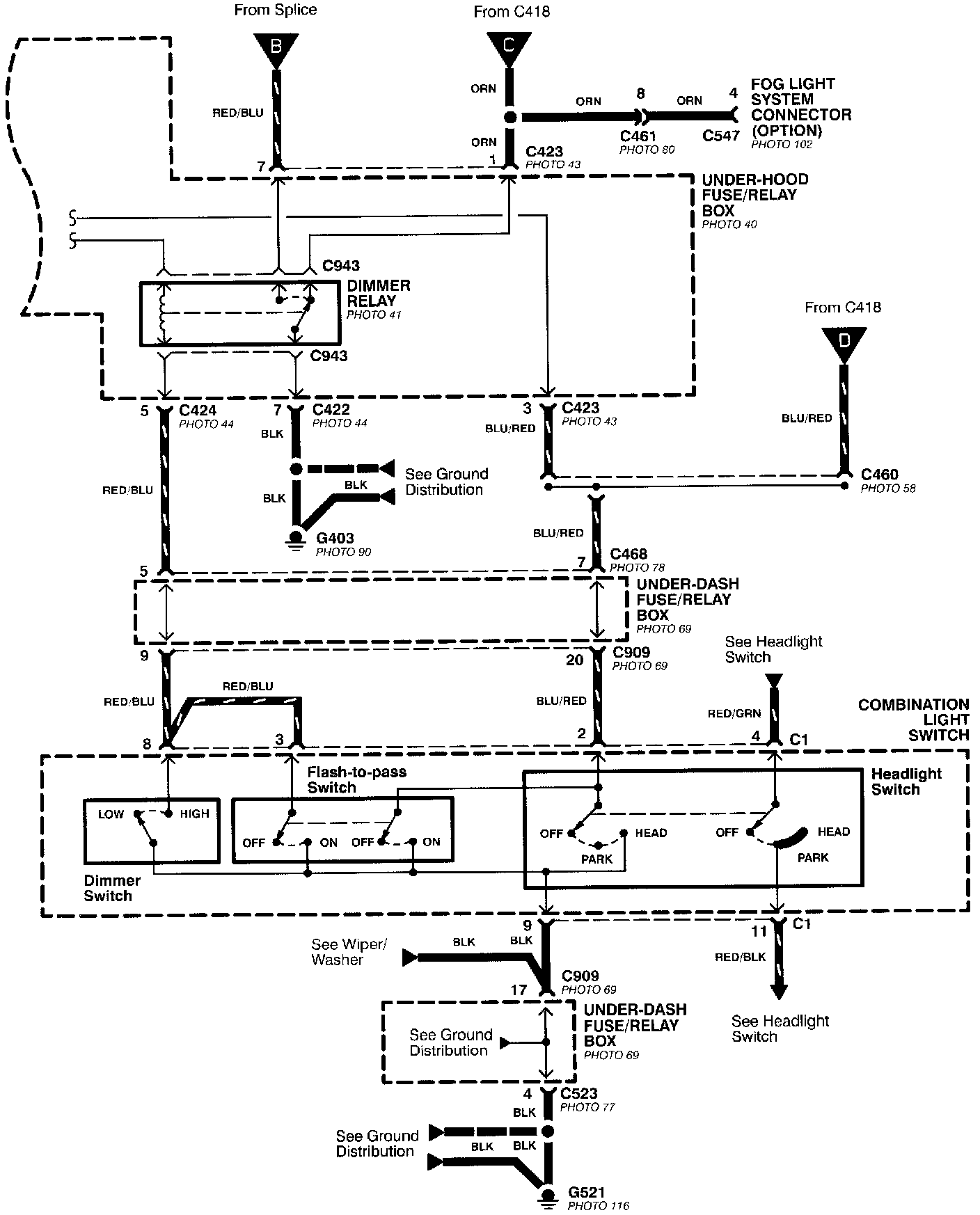

Headlights- Canada (Part 2 Of 2):

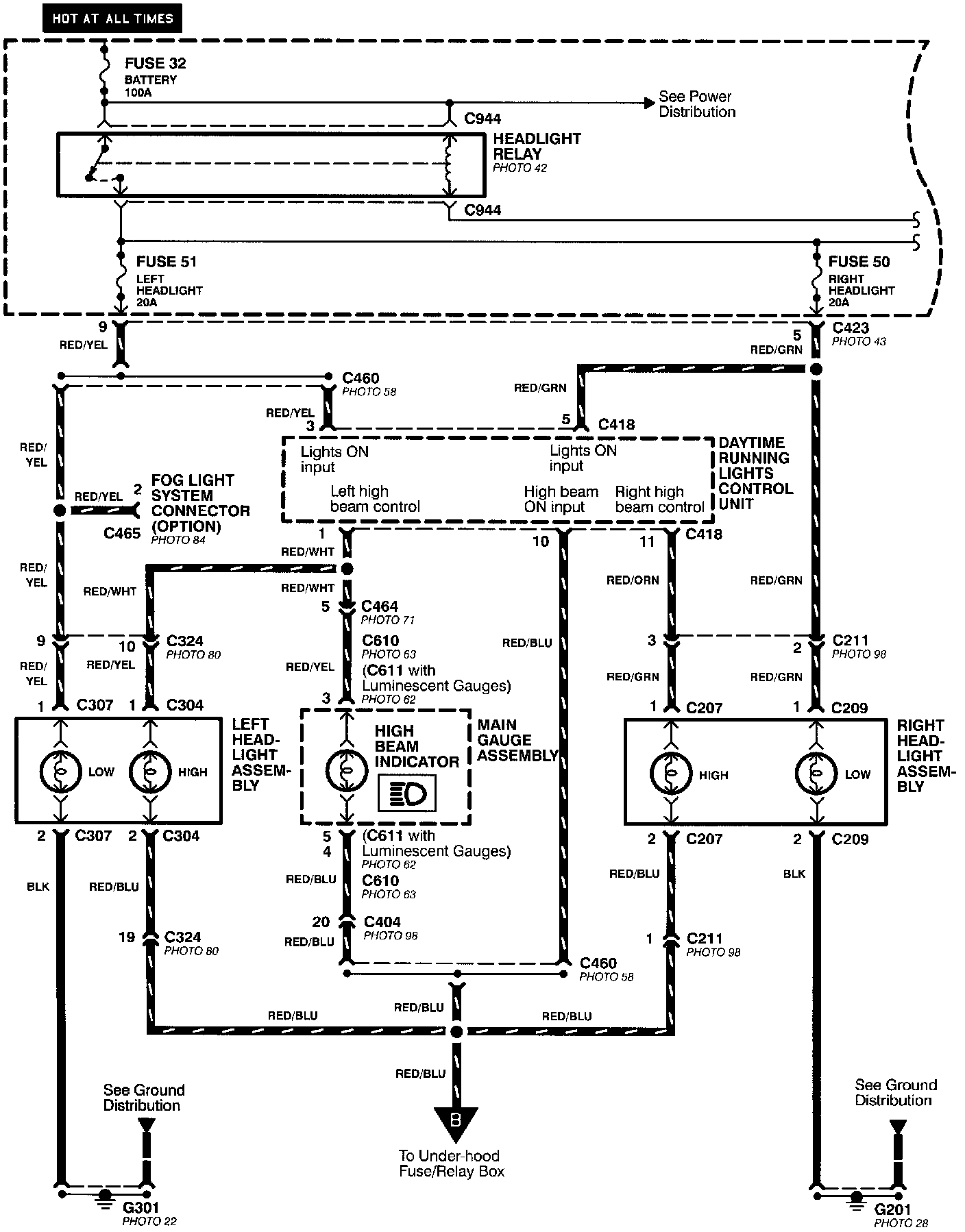

Headlights- Canada (Part 3 Of 3):
