Home >> Honda >> 1996 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Lamp >> Bulb Type High Mount Brake Light

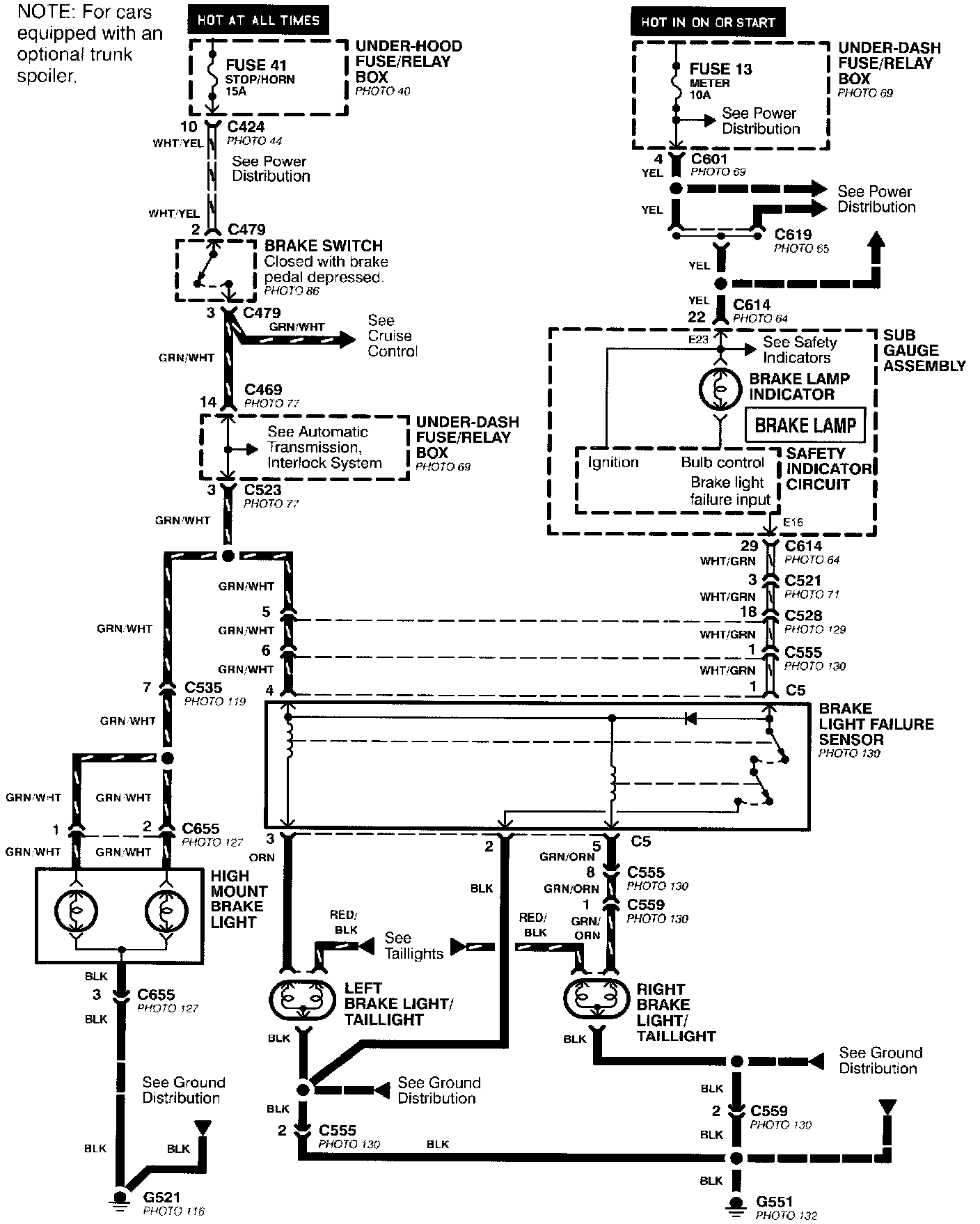

Bulb Type High Mount Brake Light

Brake Lights- Bulb Type High Mount Brake Light:
