Honda
>>
1996
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Switches
Switches

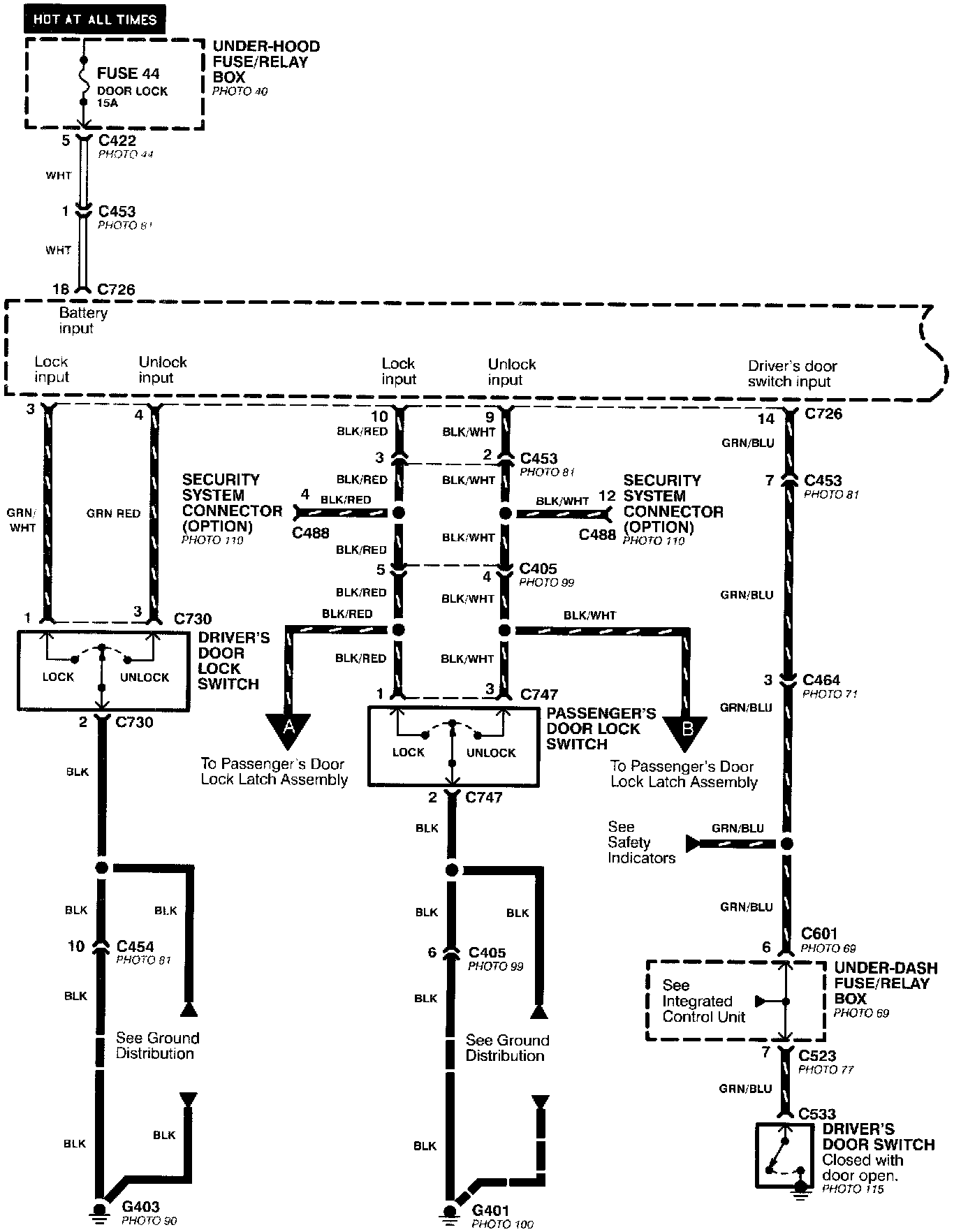

Power Door Locks- Switches (Part 1 Of 2):
Power Door Locks- Switches (Part 2 Of 2):
