Procedure 8

Programming the Transmitter

NOTES:
^ Entering the programming mode cancels all learned transmitter codes, so none of the previously programmed transmitters will work. You must reprogram all the transmitters once you're in the programming mode.

^ To keep the system from exiting the programming mode, complete each step within 5 seconds of the previous step, and program the transmitters within 10 seconds of each other.

1. Turn the ignition switch ON (II).

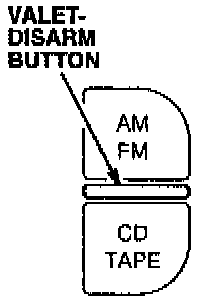

2. Press and hold the Valet-Disarm button on the radio (between the AM/FM button and the CD/TAPE button) to enter the programming mode. (Continue to hold the button during the procedure, or programming will be cancelled.) Check that the power door locks cycle to confirm that you're in the programming mode.

3. Press the "LOCK" or "UNLOCK" button on the transmitter. Check that the power door locks cycle to confirm that the code was accepted.

4. Press the "LOCK" or "UNLOCK" button on all other transmitters. (You can program up to four transmitters per vehicle.)

5. After all the transmitters have been programmed, release the Valet-Disarm button to exit the programming mode.

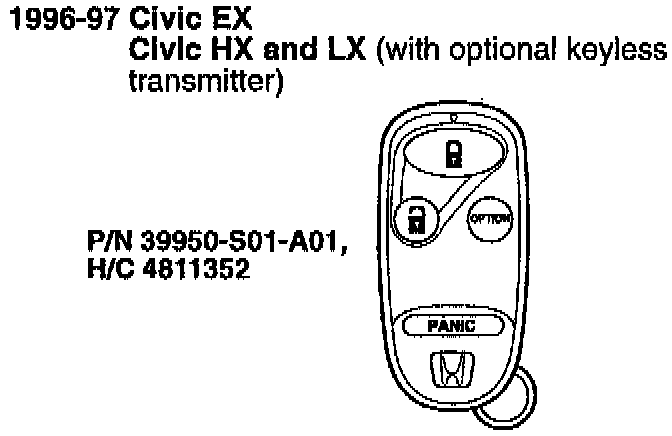

Ordering the Transmitter

Transmitters can be ordered only by authorized Honda Dealers. Order them from American Honda using normal parts ordering procedures.

Batteries for the Transmitter

The battery number is CR2025. Each transmitter uses one battery.
