Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>

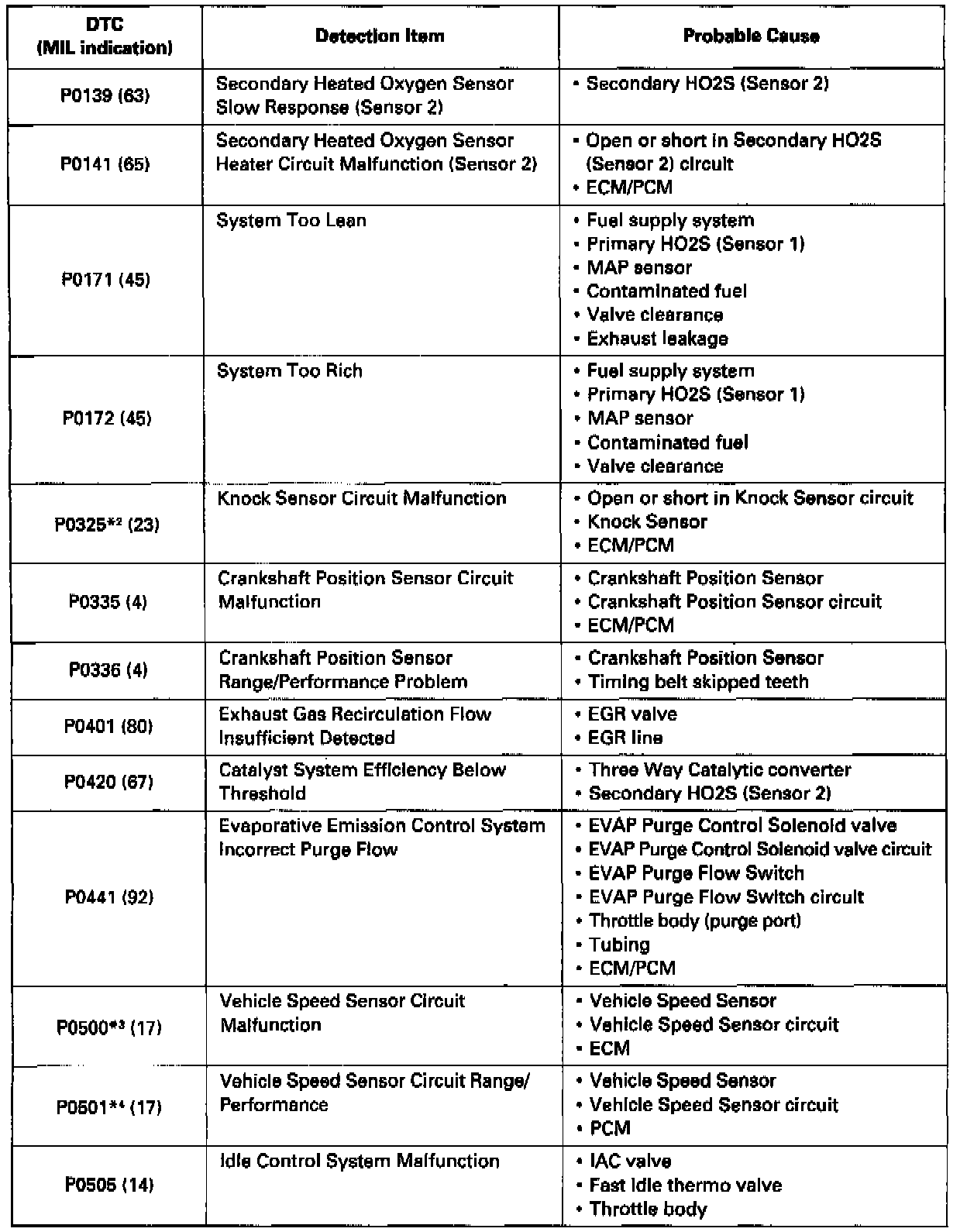

DTC List - Engine Control System
>>
DTC P0139 Thru P0505
DTC P0139 Thru P0505
**:
The
[D4]
indicator light and the Malfunction Indicator Lamp
(MIL)
may come on simultaneously.
*1:
H22A1 engine (USA: Si VTEC/Canada: SR-V)
*2:
Except F22A1 engine (S)
*3:
Manual Transmission
*4:
Automatic Transmission
