DTC List - Air Bag System

DTCs 1-1 - 10-1:

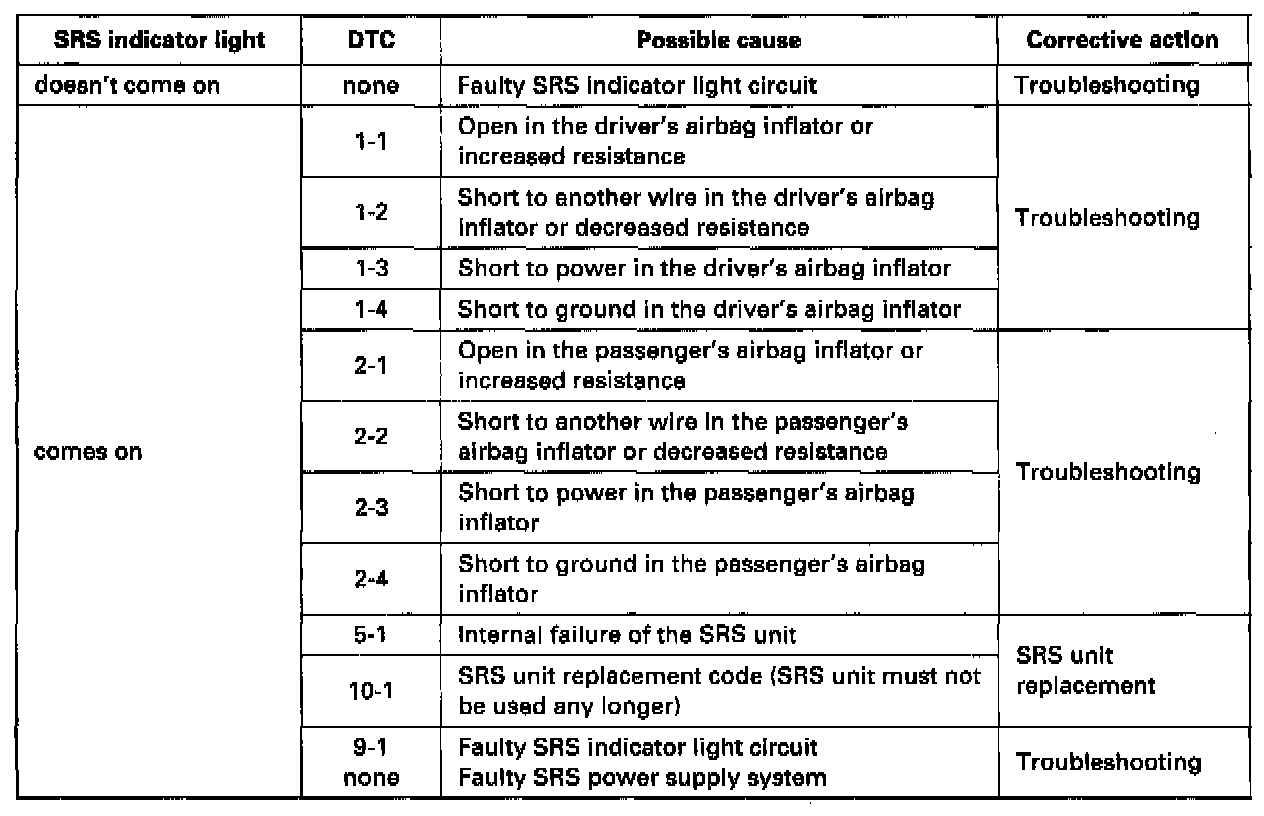

DTC Chart

NOTE:
- In case DTC 5-1 is indicated, replace the SRS unit. If multiple DTCs including DTC 5-1 are indicated, first replace the SRS unit, then recheck the DTC indication.
- When you return the SRS unit in case of a claim, do not erase the memory. The data will remain in the memory even when the ignition switch is turned off.
- If an intermittent failure occurs, DTC 9-1, will be indicated. In case of a continuous problem, there will be no DTC.
