Shift Fork: Service and Repair

DISASSEMBLE

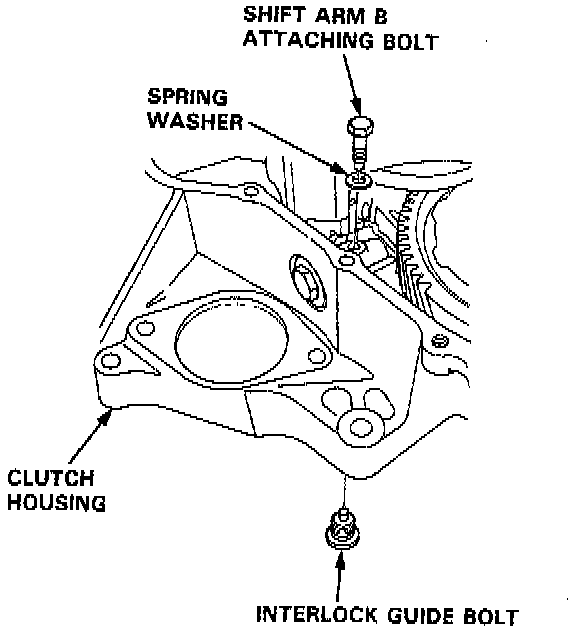

1. Remove the interlock guide bolt from under the clutch housing.





2. Remove the shift arm B attaching bolt.

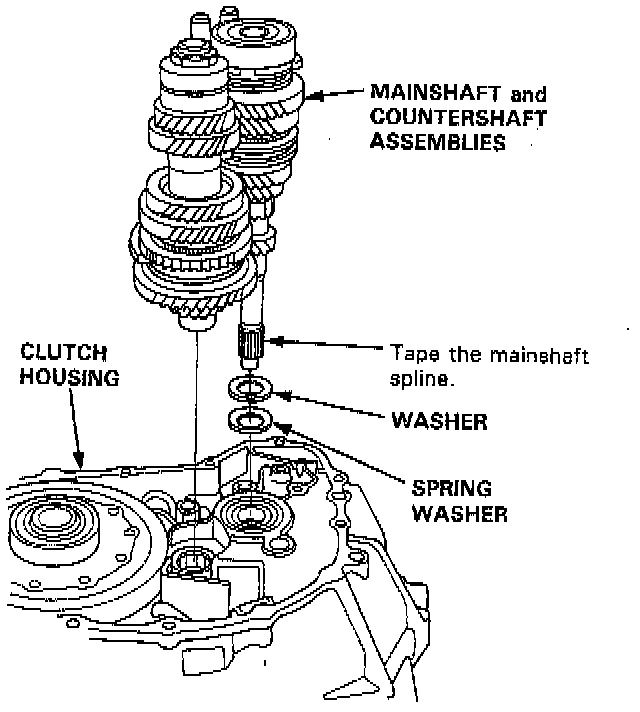

3. Remove the mainshaft and countershaft assemblies with the shift fork from the clutch housing.

NOTE: Before removing the mainshaft and countershaft assemblies, tape the mainshaft spline to protect it.
