Reverse Idler Gear: Service and Repair

REMOVAL

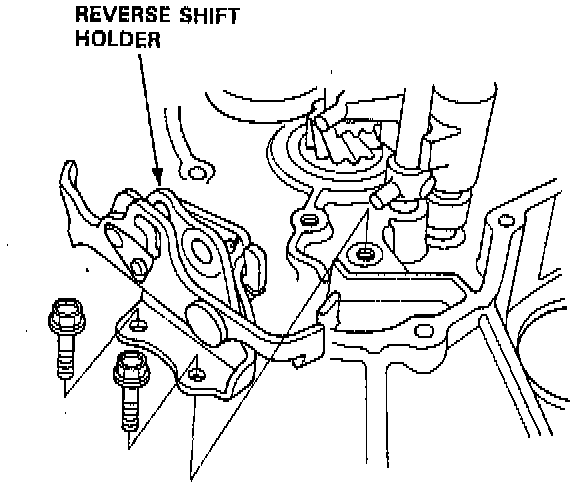

1. Remove the reverse shift holder.





2. Remove the reverse idler gear shaft and reverse idler gear.
