Differential: Testing and Inspection

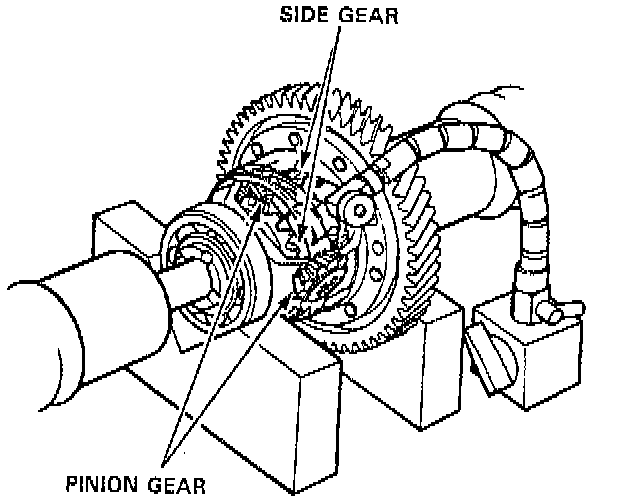

1. Place differential assembly on V-blocks and install both driveshafts.
2. Check backlash of both pinion gears. Standard (New): 0.08 - 0.15 mm (0.003 - 0.006 inch).
3. If the backlash is not within the standard, replace the differential carrier.
