Power Window Switch: Service and Repair

Switch Replacement

1. Remove the door panel, and disconnect the connectors.

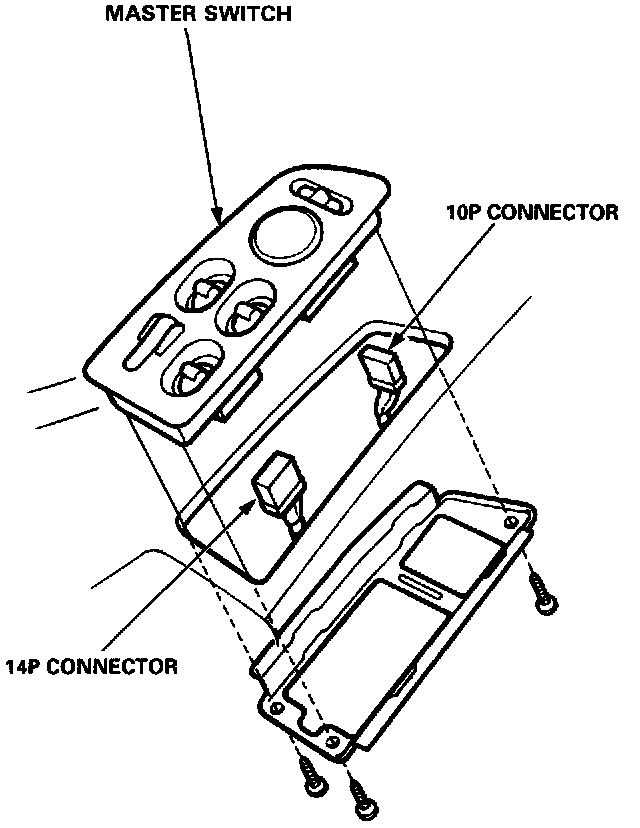

Power Windows-Switch Replacement:

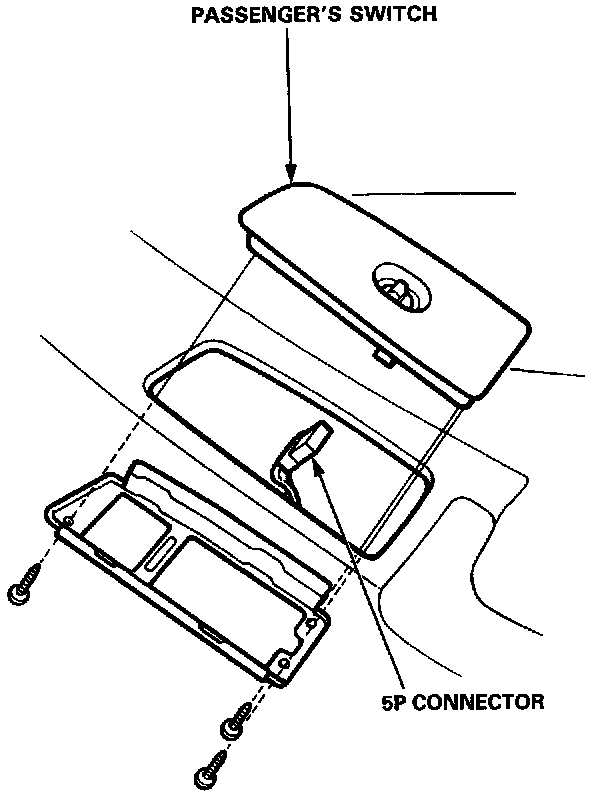

Power Windows-Switch Replacement:




2. Remove the master or passenger's switch from the door panel by unscrewing the mounting screws.
