Backup Lamp Switch: Service and Repair
NOTE:
To check the switch.
1.

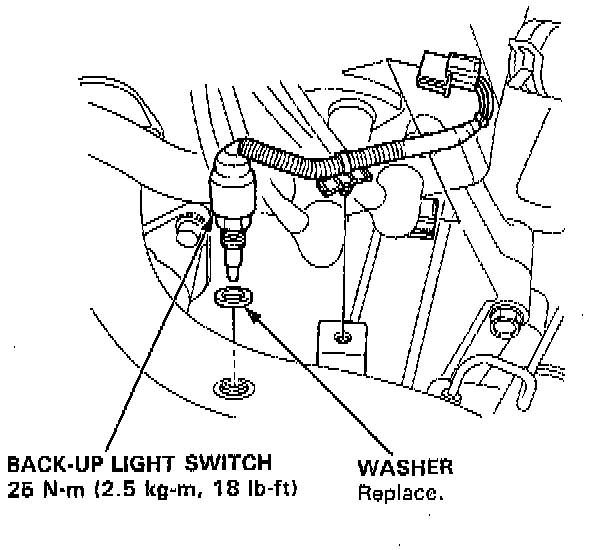

Disconnect the connector, then remove the switch connector from the connector clamp.
2.
Remove the switch.
3.
Install the new washer and switch.
