Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

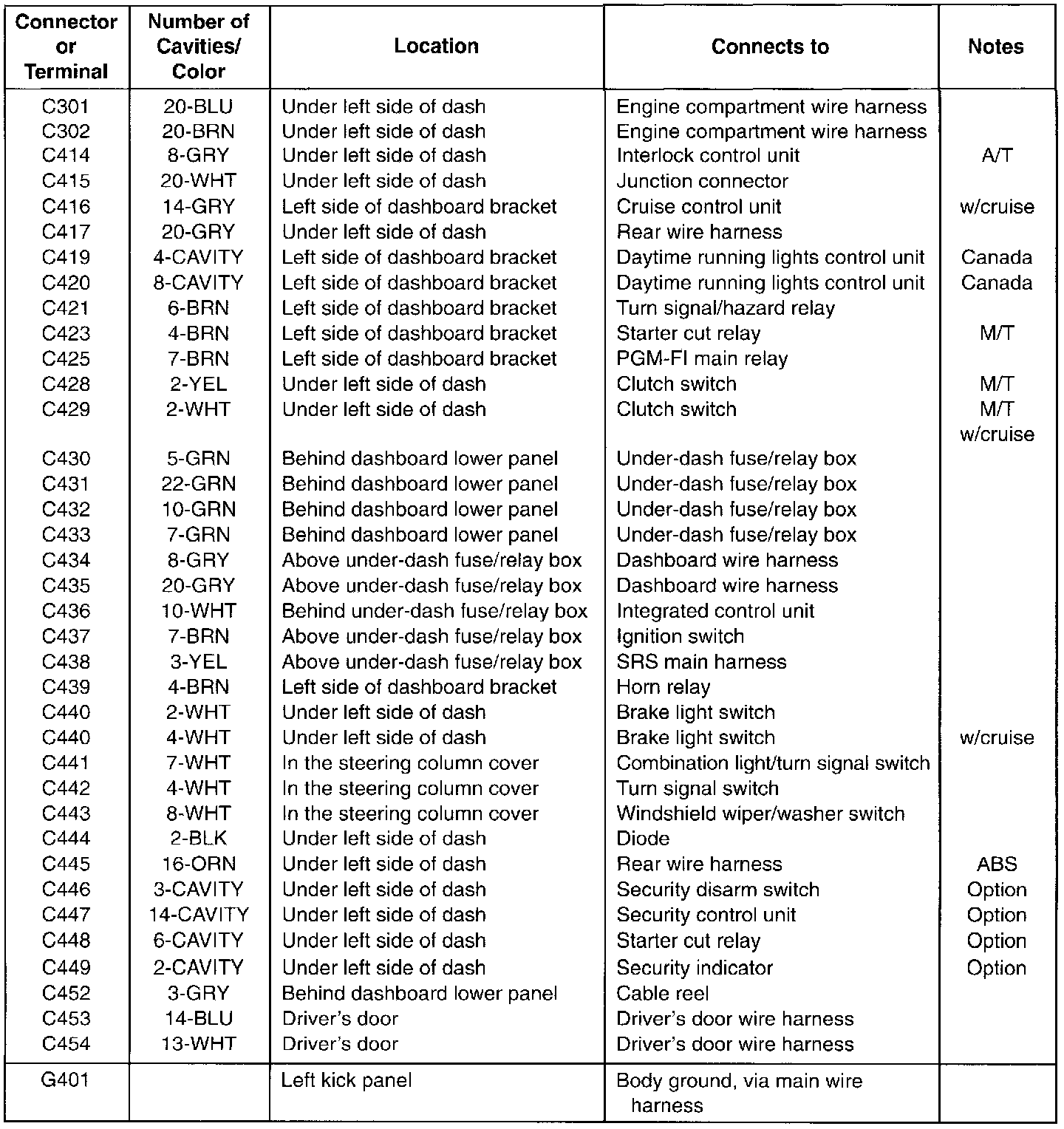

Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side of Dash
Main Wire Harness, Left Side Of Dash:
Main Wire Harness, Left Side Of Dash:
