Transmission Mode Indicator - A/T: Service and Repair

Bulb Replacement:

CAUTION:

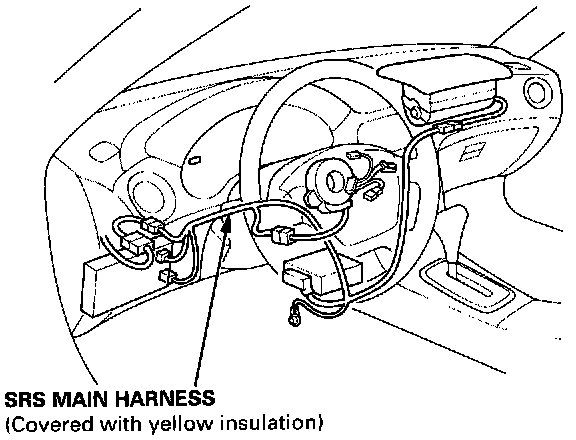

^ All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
^ Whenever the ignition switch is ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
^ For additional precautions, refer to the Air Bags and Seat Belts.

Bulb Replacement:

1. Remove the gauge assembly.

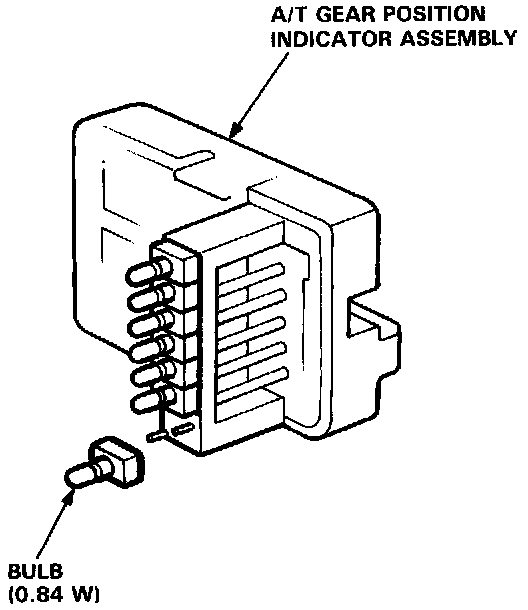

2. Remove the A/T gear position indicator assembly.
3. Remove the bulb from the A/T gear position indicator assembly.
