Mitsuba Starters

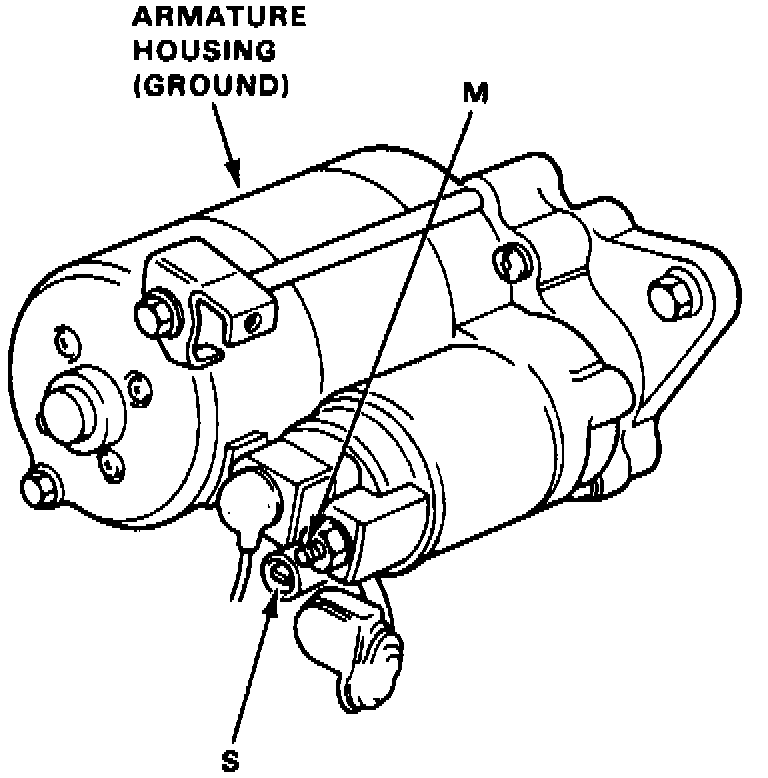

Fig. 11 Starter Motor Terminal Locations:

1. Check hold in coil for continuity between S terminal and ground, Fig. 1. Continuity should exist.
2. Check pull in coil for continuity between S and M terminals. Continuity should exist.
3. If solenoid does not operate as specified, replace solenoid.
