Mitsuba Starters

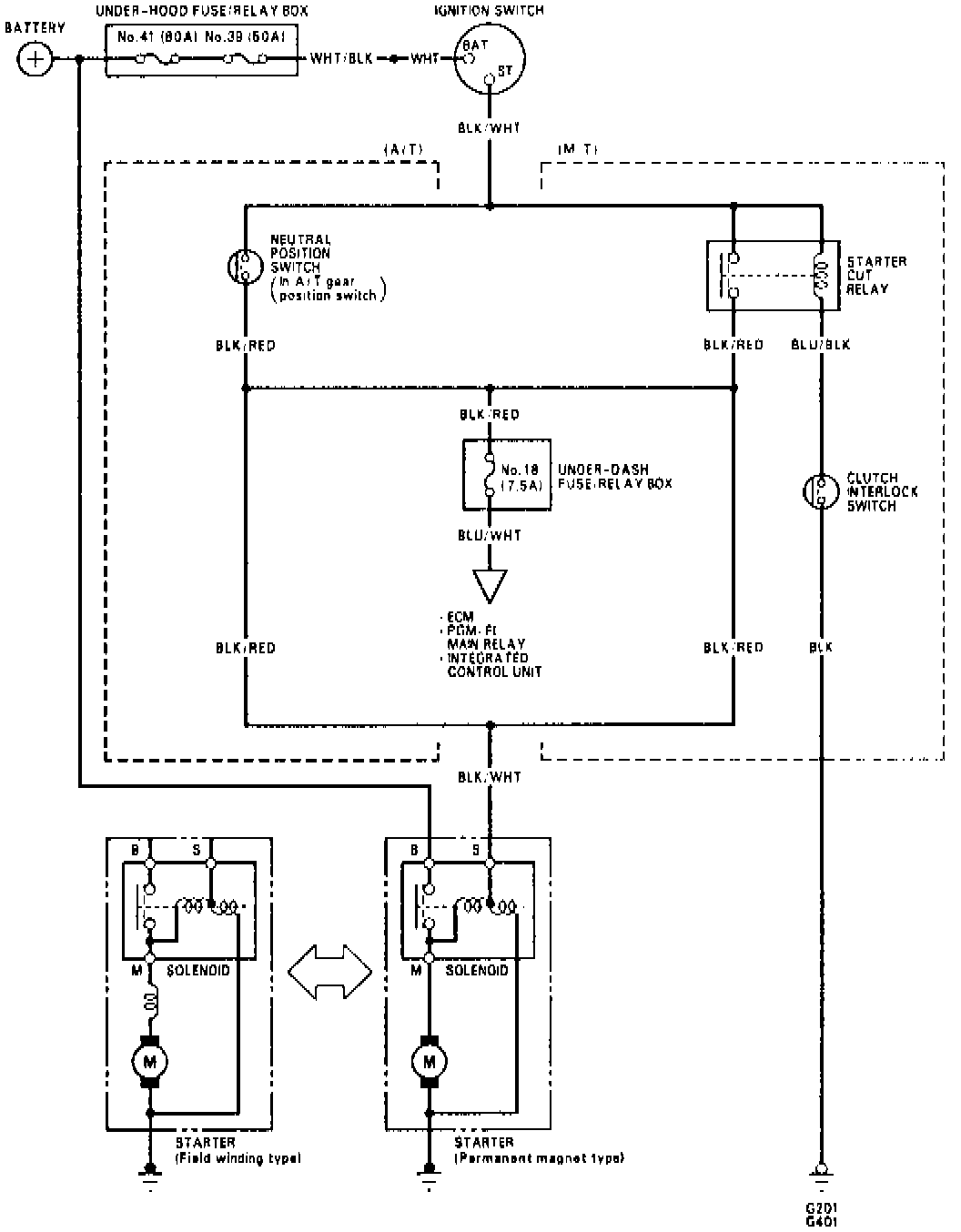

Fig. 7 Starting System Wiring Circuit:





Refer to Fig. 7 when testing starter system.
