Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>

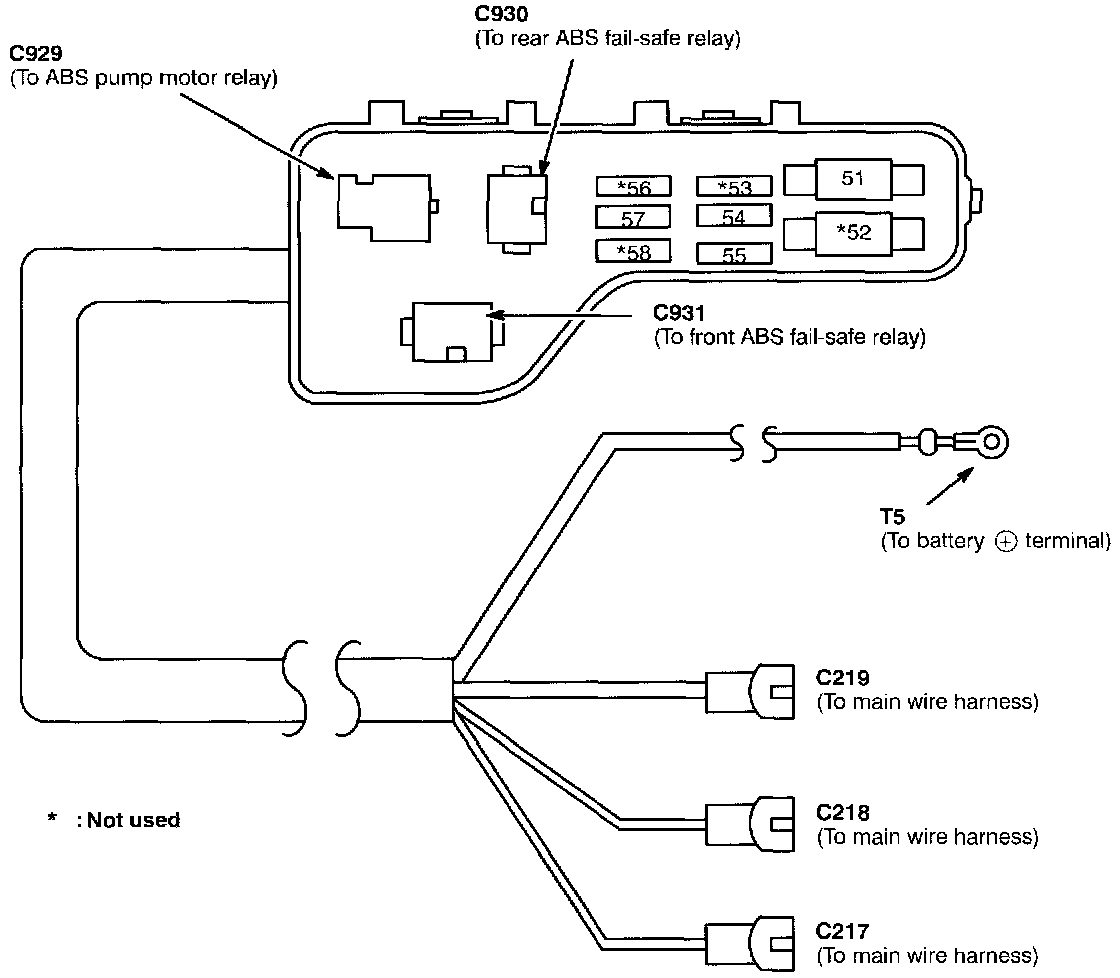

Under-Hood ABS Fuse/Relay Box
>>
Under-Hood ABS Fuse/Relay Box
Under-Hood ABS Fuse/Relay Box

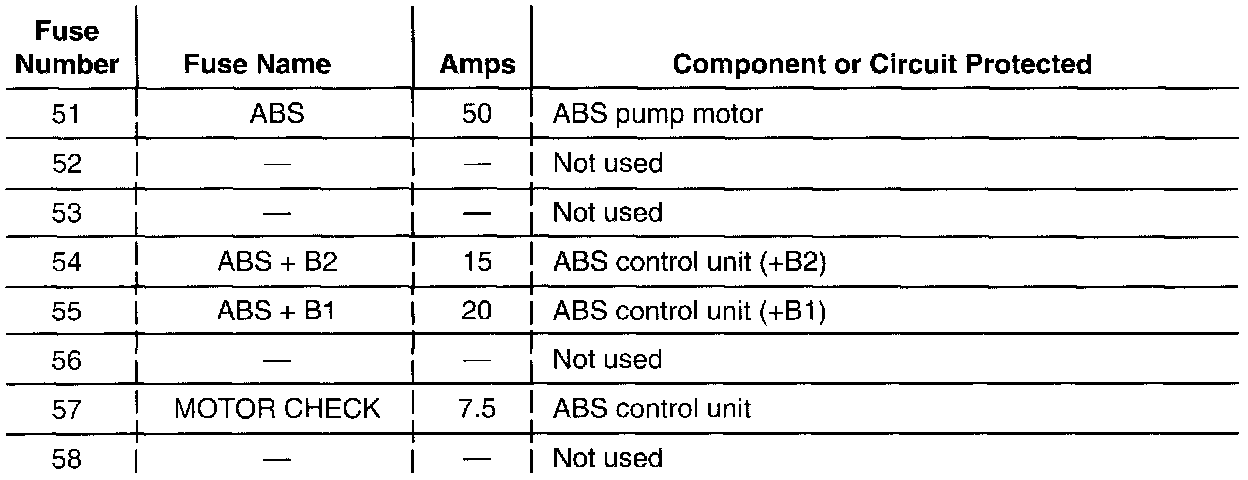

Fuse/Relay Information- Under-hood ABS Fuse/Relay Box (Part 1 Of 2):
Fuse/Relay Information- Under-hood ABS Fuse/Relay Box (Part 2 Of 2):
