Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Torque Specifications

Torque Specifications

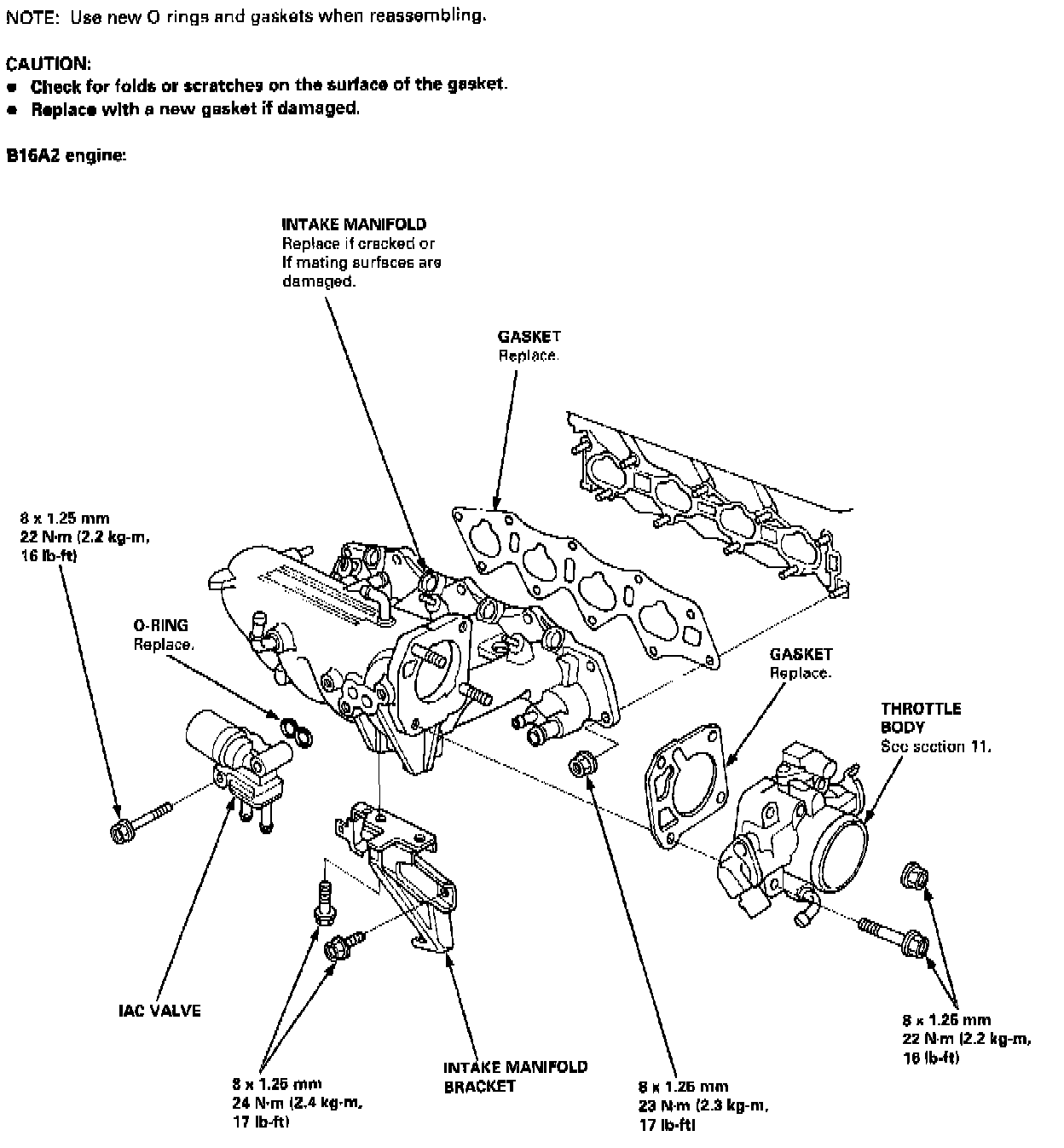

Intake:

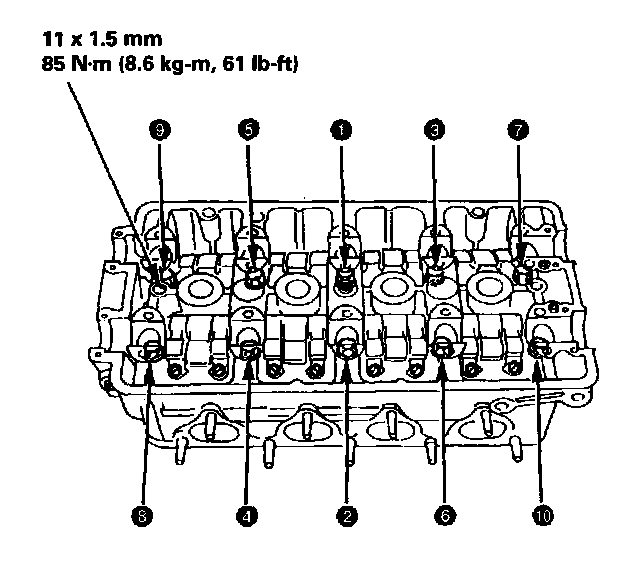

Torque Sequence:

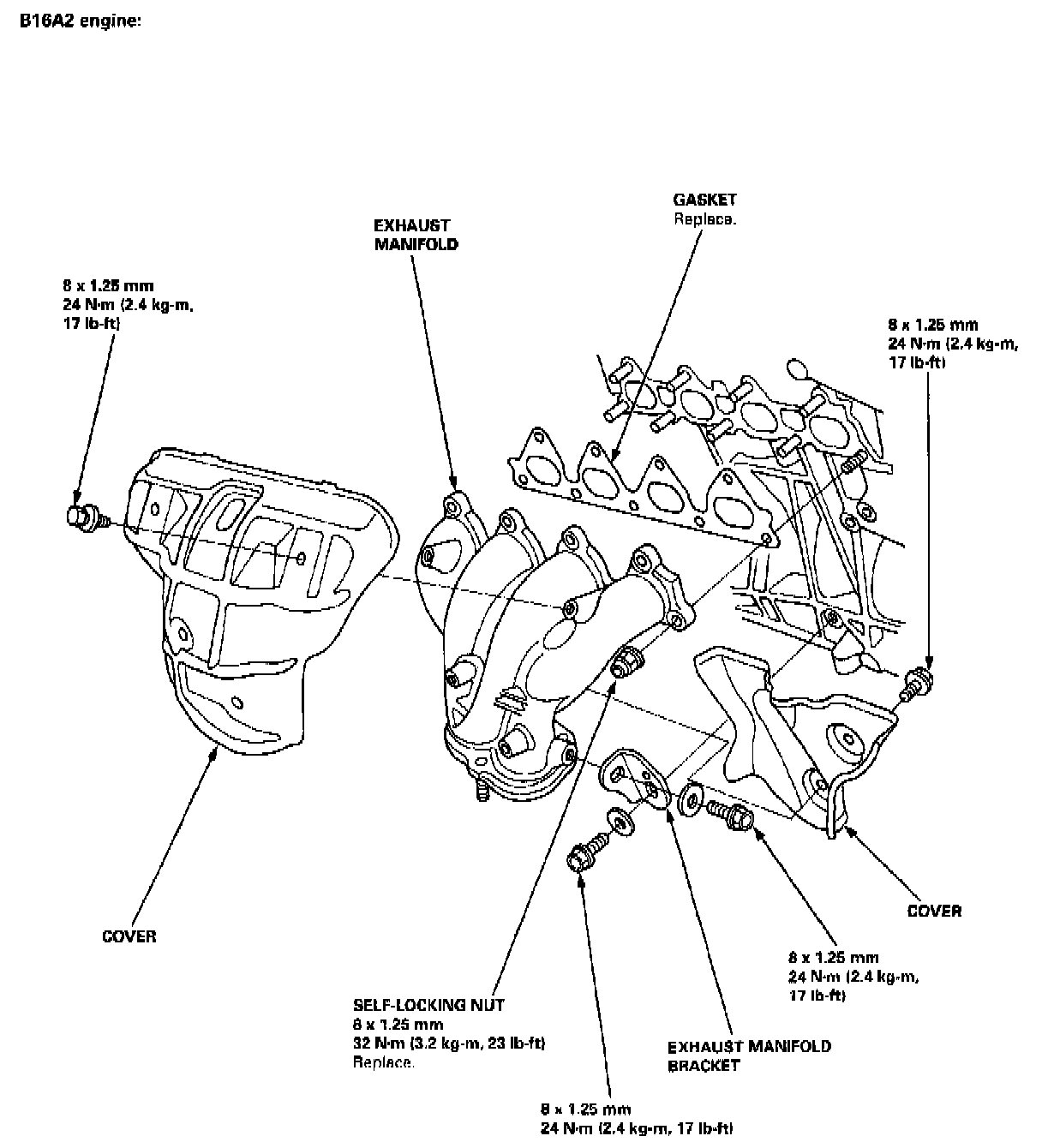

Exhaust Manifold:

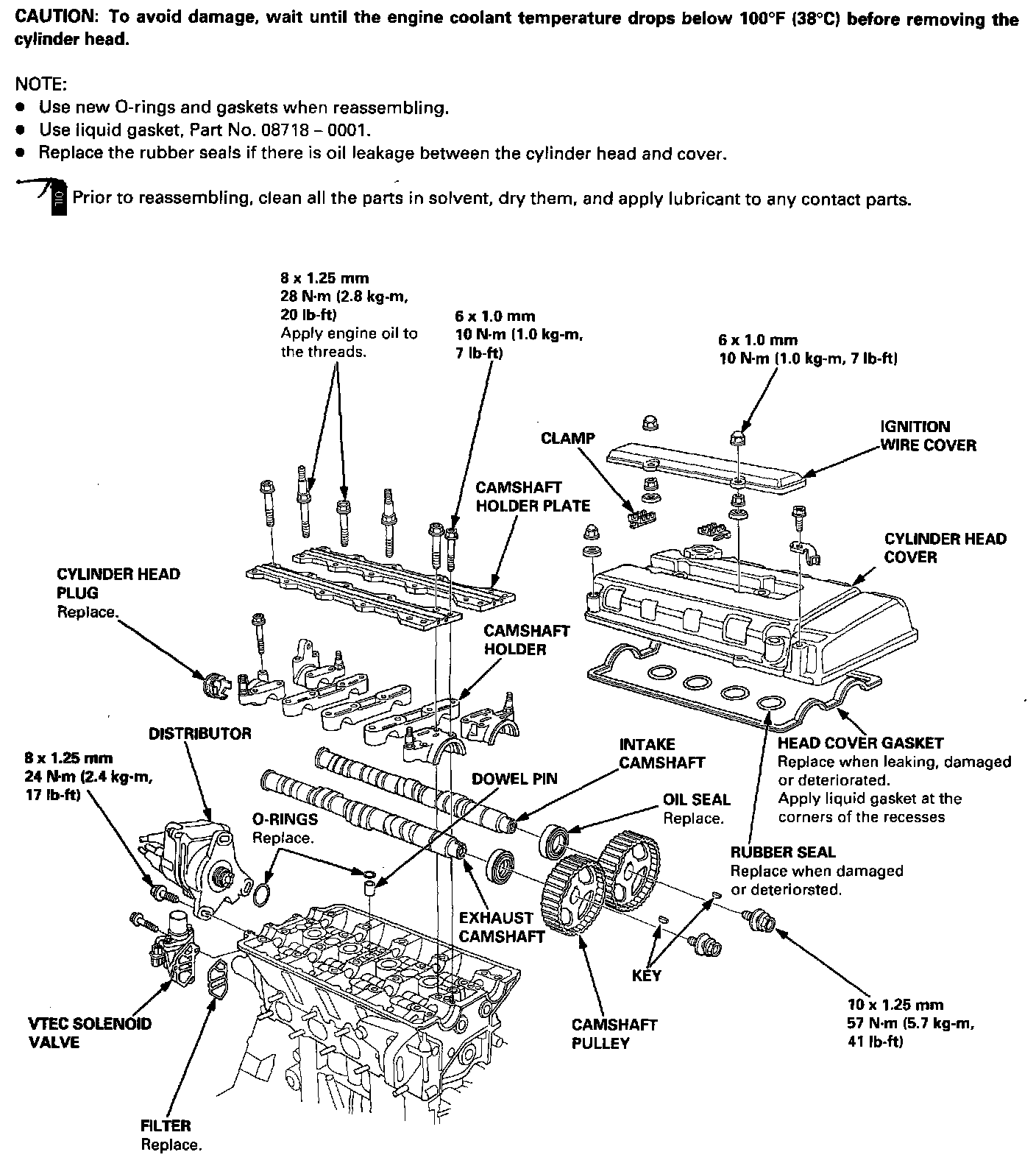

Timing Components:

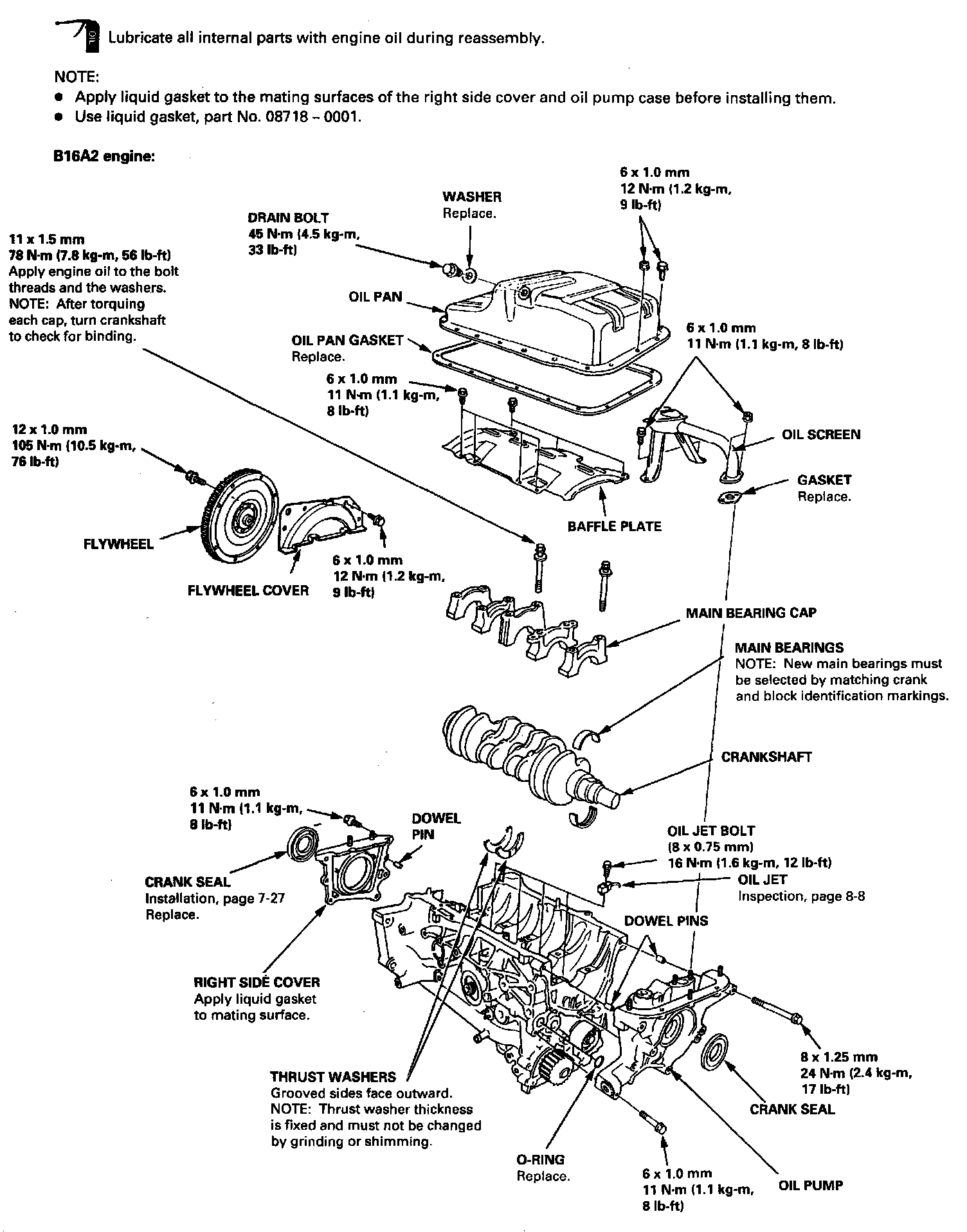

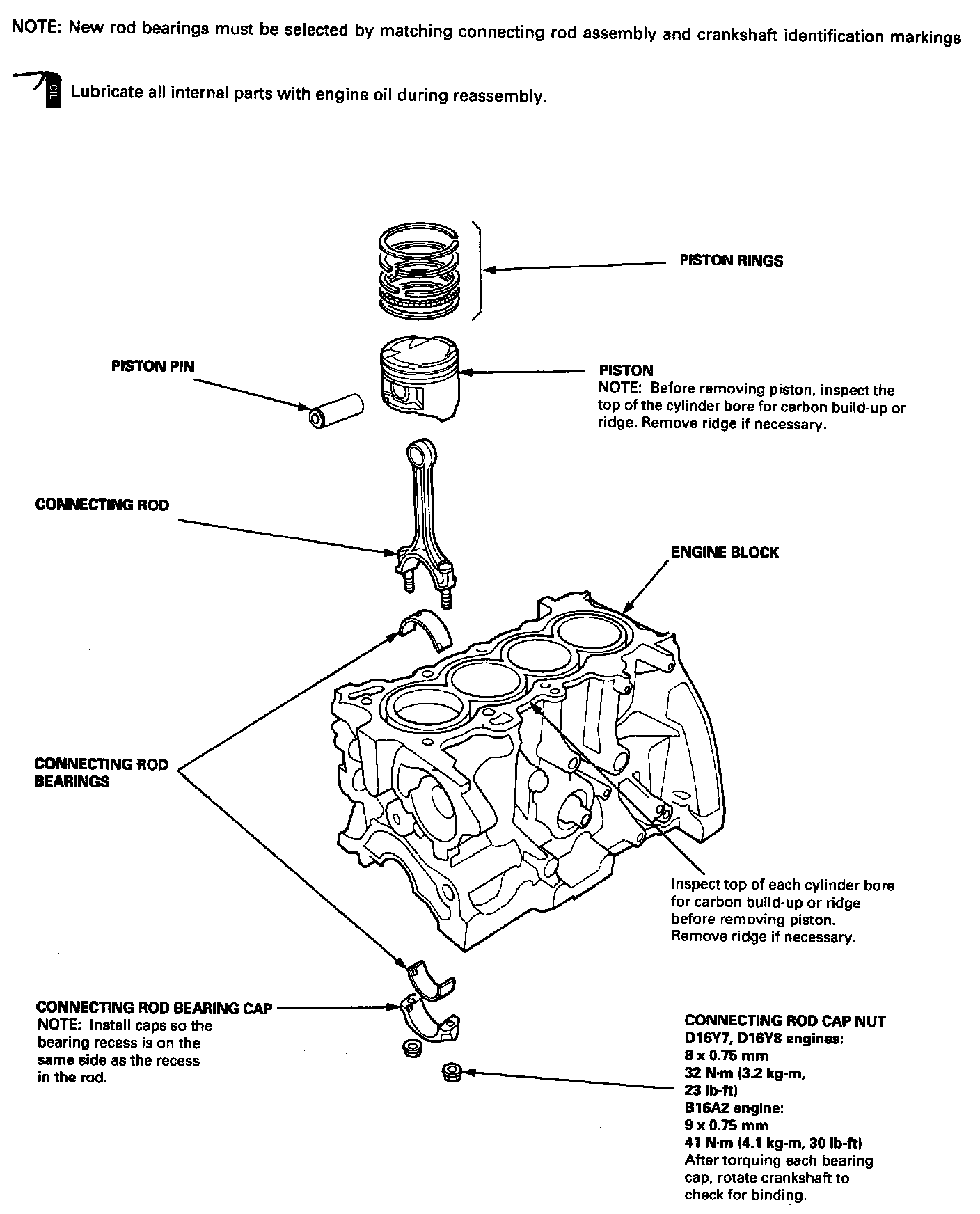

Lower Engine:

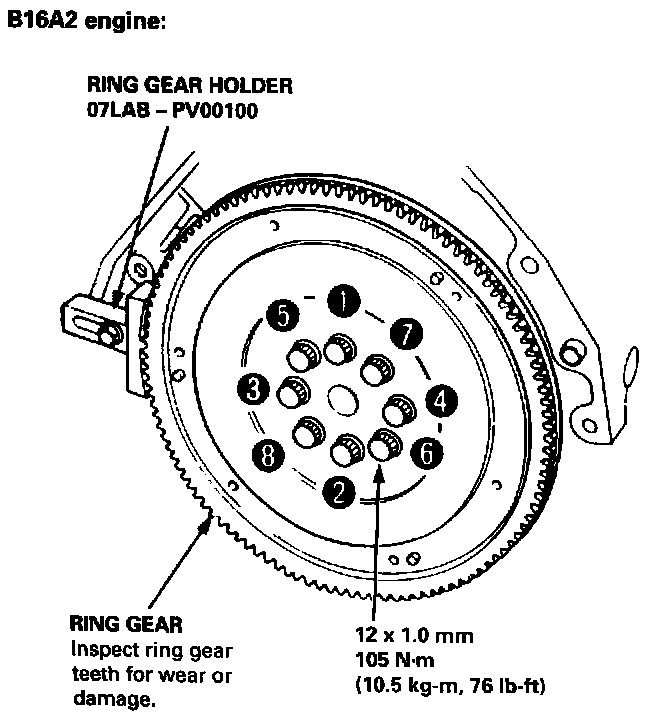

Flywheel Torque/sequence:
